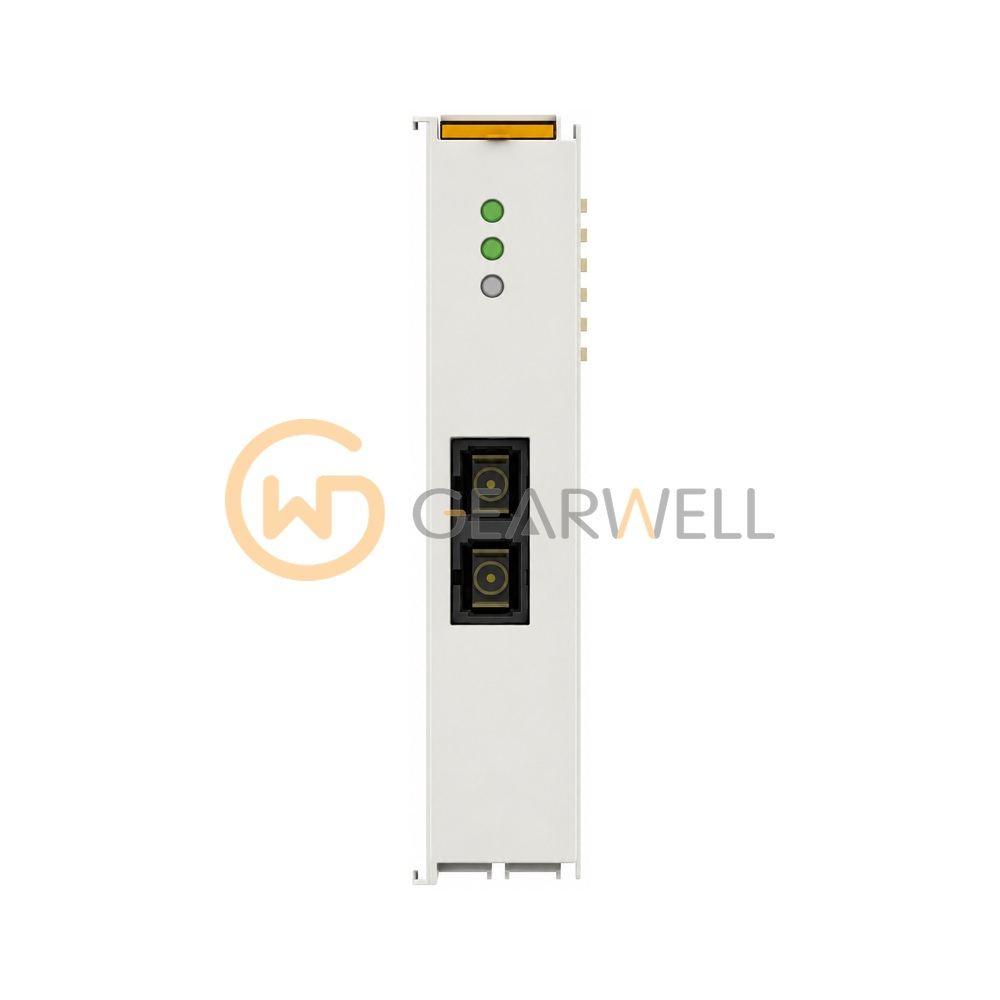

Beckhoff EK1521 EtherCAT Multimode Fiber-Optic Junction
- Brand
- BECKHOFF
- Model
- EK1521
- GEARWELL SKU
- GWP-000006862
- Category
- Industrial Communication
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1521 is a 1-port EtherCAT junction for coupling EtherCAT junctions over multimode glass fiber (50/125 µm), with up to 2000 m between stations (100BASE-FX). It has one SC Duplex connection, runs at 100 Mbit/s with a propagation delay of about 1 µs, needs no configuration and is powered from the E-bus (typ. 350 mA). It is rated IP20 for -25 to +60 °C and carries CE, CCC, UL, ATEX, IECEx and cFMus approvals. Check the full order number, including any suffix, on the device when requesting a quote.
Technical reference
| Product name | Beckhoff EK1521 EtherCAT Multimode Fiber-Optic Junction |
|---|---|
| Brand | BECKHOFF |
| Model | EK1521 |
| Category | Industrial Communication |
