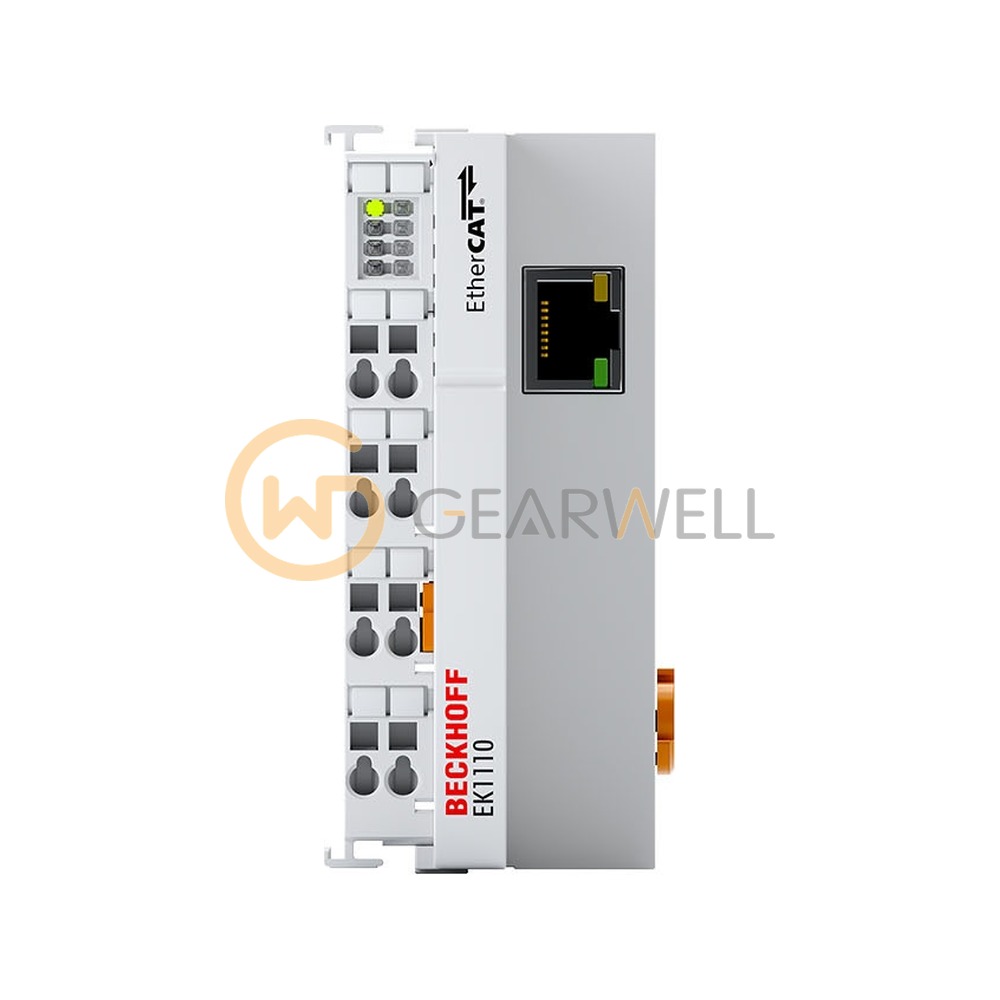

BECKHOFF EK1110 EtherCAT Extension
- Brand
- BECKHOFF
- Model
- EK1110
- GEARWELL SKU
- GWP-000007897
- Category
- Industrial Communication
Key specifications
- Protocol
- any EtherCAT protocol
- Power supply
- from E-bus
- Bus interface
- 1 x RJ45
- Propagation delay
- approx. 1 µs
- Transmission rate
- 100 Mbit/s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EK1110 is an EtherCAT extension terminal placed at the end of a terminal station: it converts the E-bus signals to 100BASE-TX Ethernet on one RJ45 port so the EtherCAT line can continue up to 100 m to the next station. It is powered from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EK1110 EtherCAT Extension |
|---|---|
| Brand | BECKHOFF |
| Model | EK1110 |
| Category | Industrial Communication |
| Protocol | any EtherCAT protocol |
| Power supply | from E-bus |
| Bus interface | 1 x RJ45 |
| Propagation delay | approx. 1 µs |
| Transmission rate | 100 Mbit/s |
| Transmission medium | Ethernet/EtherCAT cable (min. Cat.5), shielded |
| Current consumption E-bus | typ. 130 mA |
| Distance between stations | 100 m (100BASE-TX) |
