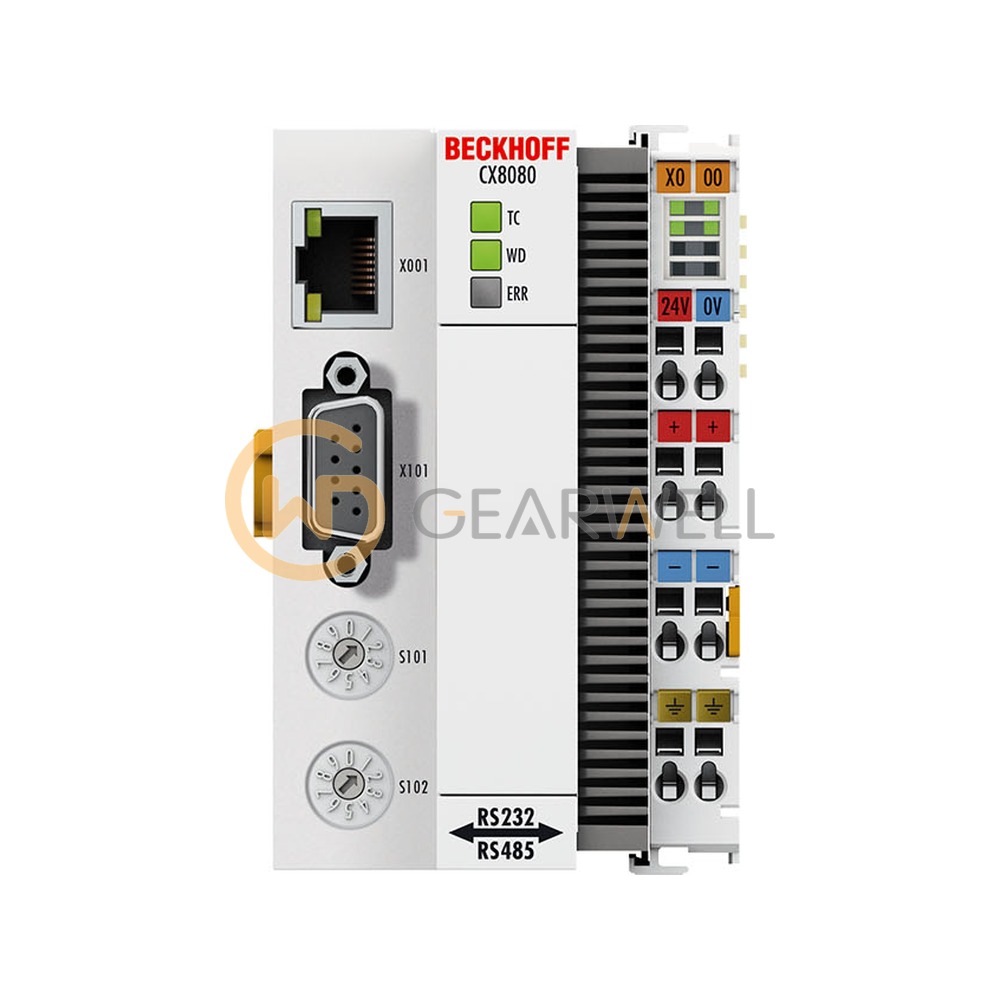

BECKHOFF CX8080 CX8000 Embedded PC with RS232/RS485
- Brand
- BECKHOFF
- Model
- CX8080
- GEARWELL SKU
- GWP-000011723
- Category
- PLCs & I/O
Key specifications
- Processor
- Arm9, 400 MHz
- Main memory
- 64 MB DDR2 RAM
- Flash memory
- microSD slot, 512 MB card included
- Power supply
- 24 V DC (-15%/+20%)
- Bus interface
- D-sub socket, 9-pin, 1 x RS232, 1 x RS485
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff CX8080 is a compact Embedded PC with an Arm9 processor at 400 MHz and 64 MB RAM, running TwinCAT 2 PLC, with an RS232/RS485 interface on a 9-pin D-sub socket. It has one Ethernet port and connects to E-bus or K-bus terminals directly. Check the full order number, including the software options, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF CX8080 CX8000 Embedded PC with RS232/RS485 |
|---|---|
| Brand | BECKHOFF |
| Model | CX8080 |
| Category | PLCs & I/O |
| Processor | Arm9, 400 MHz |
| Main memory | 64 MB DDR2 RAM |
| Flash memory | microSD slot, 512 MB card included |
| Power supply | 24 V DC (-15%/+20%) |
| Bus interface | D-sub socket, 9-pin, 1 x RS232, 1 x RS485 |
| Control software | TwinCAT 2 PLC |
| Transmission rate | 300 baud...115 kbaud |
| Dimensions (W x H x D) | 64 x 100 x 73 mm |
