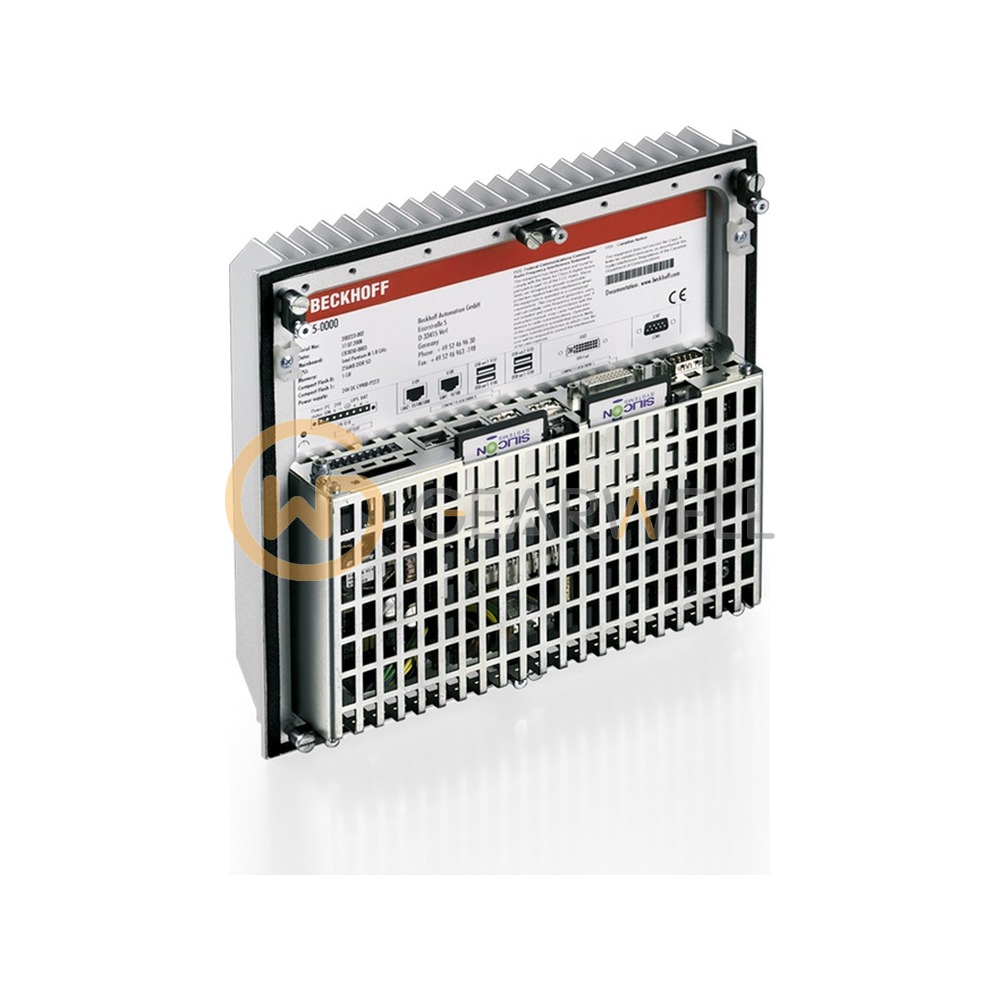

BECKHOFF C6515-0060 Fanless Built-in Industrial PC

Product overview

Beckhoff C6515-0060 is a fanless built-in Industrial PC with external cooling, for mounting in the back panel of a control housing or the wall of a control cabinet; combined with a Beckhoff Control Panel it forms a fanless Panel PC. It has a 3½-inch motherboard for 6th/7th generation Intel Celeron, Pentium and Core i3/i5/i7 processors, from the Celeron G3900TE (2.3 GHz, 2 cores) up to the Core i7 7700(T) (2.9 GHz, 4 cores), 4 GB DDR4 RAM (up to 32 GB ex factory), two CFast slots with a 40 GB card (up to 320 GB), two 100/1000BASE-T Ethernet ports, an on-board SATA RAID 1 controller, 4 x USB 3.0, 1 x RS232 and 1 x DVI. It runs on 24 V DC (UPS optional), measures 240 x 230 x 81 mm, weighs 3 kg in the basic configuration and is rated IP65 outside and IP20 inside, for 0 to 45 °C outside and 0 to 55 °C inside, with 20 cm of free space needed around the heat sink. Check the full order number, including any suffix, on the device when requesting a quote.
