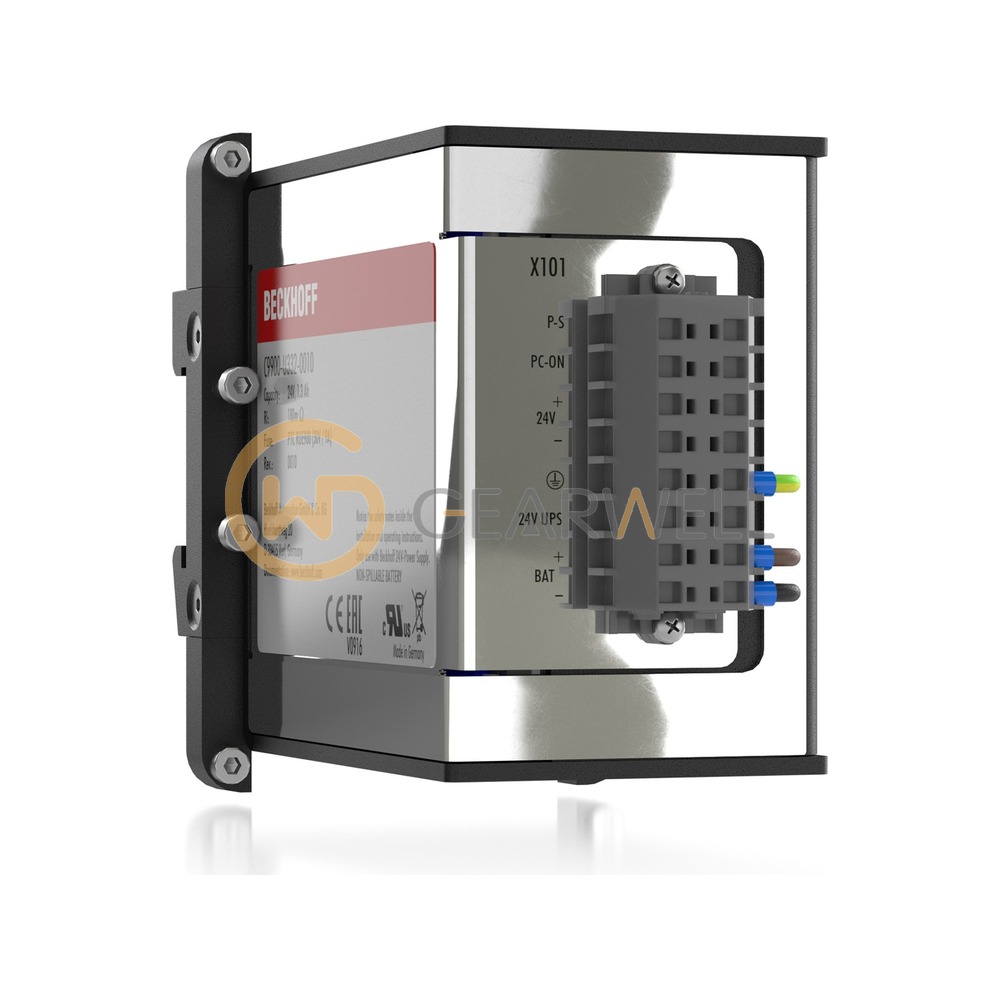

BECKHOFF C9900-U332-0010 UPS Battery Pack
- Brand
- BECKHOFF
- Model
- C9900-U332-0010
- GEARWELL SKU
- GWP-000007895
- Category
- Power Supplies
Key specifications
- Fuse
- 9 A by PTC element
- Type
- battery pack for PCs with 24 V power supply with intergrated UPS, 1.2 Ah
- Weight
- 2.1 kg
- Housing
- metal housing for mounting on norm rail TS35x15 2.3
- Nominal voltage
- 24 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff C9900-U332-0010 is a 24 V, 1.2 Ah battery pack for Beckhoff PCs with a 24 V power supply and integrated UPS. It contains two 12 V batteries in series and is fused at 9 A by a PTC element. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF C9900-U332-0010 UPS Battery Pack |
|---|---|
| Brand | BECKHOFF |
| Model | C9900-U332-0010 |
| Category | Power Supplies |
| Fuse | 9 A by PTC element |
| Type | battery pack for PCs with 24 V power supply with intergrated UPS, 1.2 Ah |
| Weight | 2.1 kg |
| Housing | metal housing for mounting on norm rail TS35x15 2.3 |
| Nominal voltage | 24 V |
| Nominal capacity | 1.2 Ah (20 h discharge) |
| Internal structure | two 12 V batteries in series connection |
| Dimensions (W x H x D) | 68.7 mm x 106.6 mm x 143.8 mm |
