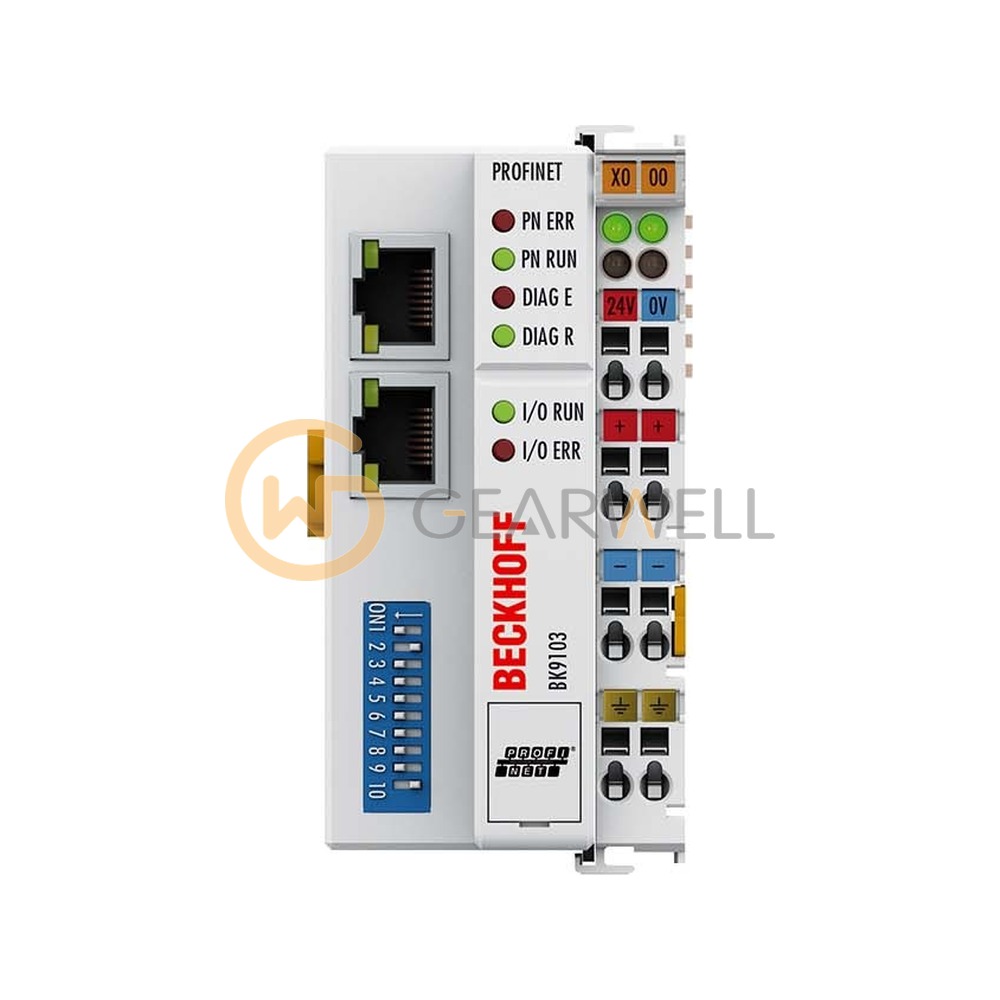

BECKHOFF BK9103 PROFINET Bus Coupler
- Brand
- BECKHOFF
- Model
- BK9103
- GEARWELL SKU
- GWP-000007893
- Category
- PLCs & I/O
Key specifications
- Protocol
- PROFINET RT (Class B)
- Bus interface
- 2 x RJ45 (2-channel switch)
- Transmission rate
- 10/100 Mbit/s, automatic recognition of the transmission rate
- Transmission medium
- 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s)
- Number of Bus Terminals
- 64 (255 with K-bus extension)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BK9103 is a PROFINET RT Bus Coupler that connects up to 64 (255 with K-bus extension) K-bus Bus Terminals to the network. It has 2 x RJ45 ports with an integrated switch at 10/100 Mbit/s and exchanges up to 512 bytes of input and output data. It runs on 24 V DC and passes up to 10 A through the power contacts. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BK9103 PROFINET Bus Coupler |
|---|---|
| Brand | BECKHOFF |
| Model | BK9103 |
| Category | PLCs & I/O |
| Protocol | PROFINET RT (Class B) |
| Bus interface | 2 x RJ45 (2-channel switch) |
| Transmission rate | 10/100 Mbit/s, automatic recognition of the transmission rate |
| Transmission medium | 4 x 2 twisted pair copper cable; category 3 (10 Mbit/s), category 5 (100 Mbit/s) |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 256 inputs/outputs |
| Digital peripheral signals | 512 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
