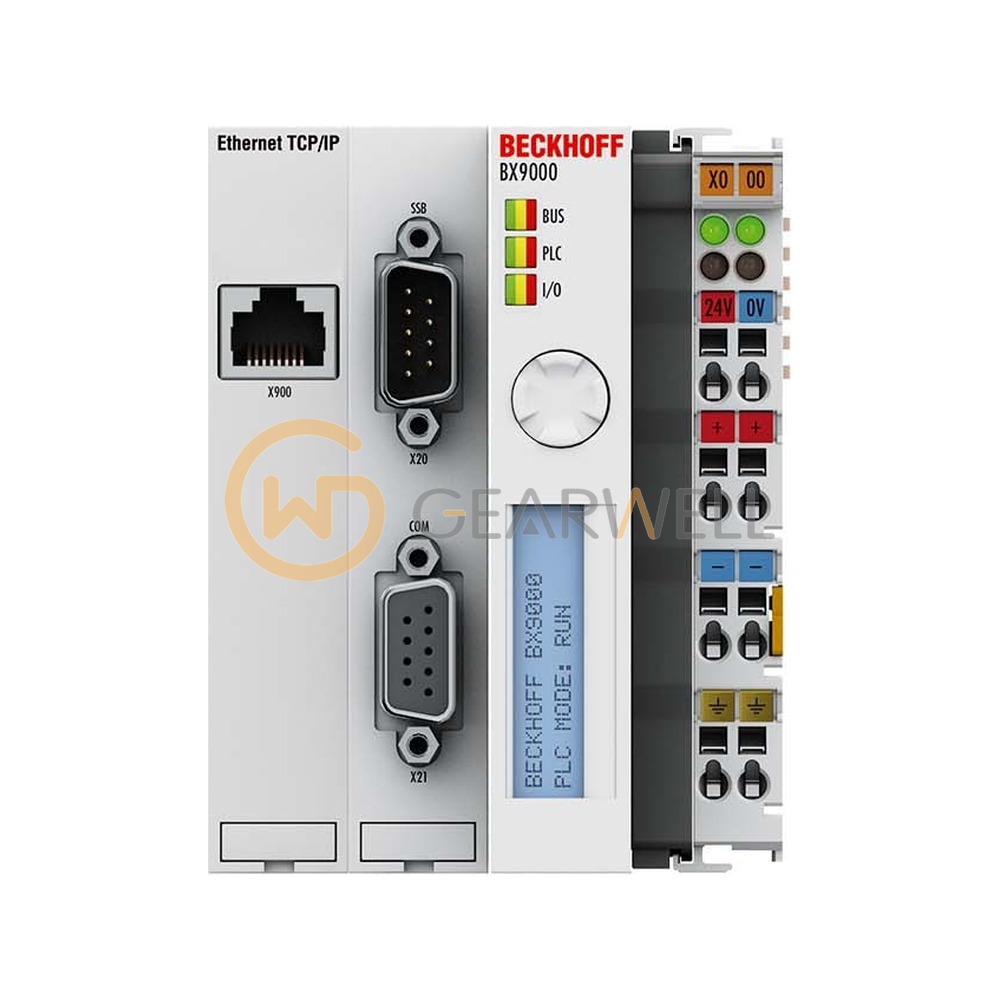

BECKHOFF BX9000 Ethernet TCP/IP Bus Terminal Controller
- Brand
- BECKHOFF
- Model
- BX9000
- GEARWELL SKU
- GWP-000007122
- Category
- PLCs & I/O
Key specifications
- Protocol
- TwinCAT ADS, Modbus TCP
- Bus interface
- RJ45
- Transmission rate
- 10/100 Mbit/s, automatic recognition of the transmission rate
- Number of Bus Terminals
- 64 (255 with K-bus extension)
- Analog peripheral signals
- 512 inputs/outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff BX9000 is an Ethernet TCP/IP Bus Terminal Controller: a Bus Coupler with a built-in PLC, programmed in TwinCAT to IEC 61131-3 via its programming interface or Ethernet. It has 256 kbyte program memory and 256 kbyte data memory, with about 1 ms per 1,000 PLC instructions. Check the full order number, including any suffix, on the unit when requesting a quote.
Technical reference
| Product name | BECKHOFF BX9000 Ethernet TCP/IP Bus Terminal Controller |
|---|---|
| Brand | BECKHOFF |
| Model | BX9000 |
| Category | PLCs & I/O |
| Protocol | TwinCAT ADS, Modbus TCP |
| Bus interface | RJ45 |
| Transmission rate | 10/100 Mbit/s, automatic recognition of the transmission rate |
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Analog peripheral signals | 512 inputs/outputs |
| Digital peripheral signals | 2,040 inputs/outputs |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Max. number of bytes process image | 2048 byte input and 2048 byte output |
