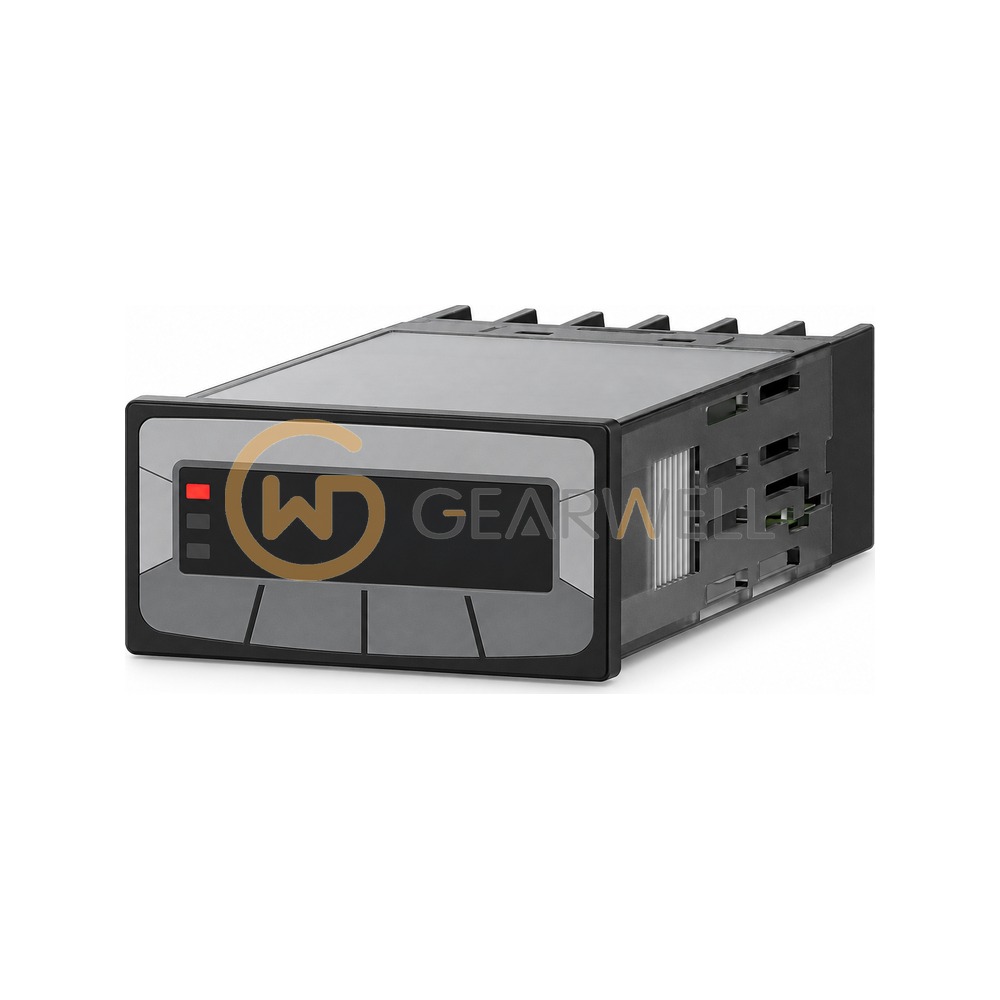

AUTONICS MT4N-DA-E3 MT4N Digital Panel Meter DC Current
- Brand
- AUTONICS
- Model
- MT4N-DA-E3
- GEARWELL SKU
- GWP-000016420
- Category
- Test & Measurement
Key specifications
- Measurement
- DC current
- Power voltage
- 12-24VDC, 12-24VAC
- Display method
- 4-digit 7-segment LCD
- Sampling cycle
- 50 ms
- Character height
- 9 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS MT4N-DA-E3 MT4N Digital Panel Meter DC Current |
|---|---|
| Brand | AUTONICS |
| Model | MT4N-DA-E3 |
| Category | Test & Measurement |
| Measurement | DC current |
| Power voltage | 12-24VDC, 12-24VAC |
| Display method | 4-digit 7-segment LCD |
| Sampling cycle | 50 ms |
| Character height | 9 mm |
| Max. display range | -1999 to 9999 |
| Input specification | 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA |
| Protection structure | IP54 (front part, IEC standard) |
| Sub output (display value) | PV transmission(DC4-20mA) |
| Main output (comparative value) | Relay (OUT1) |
