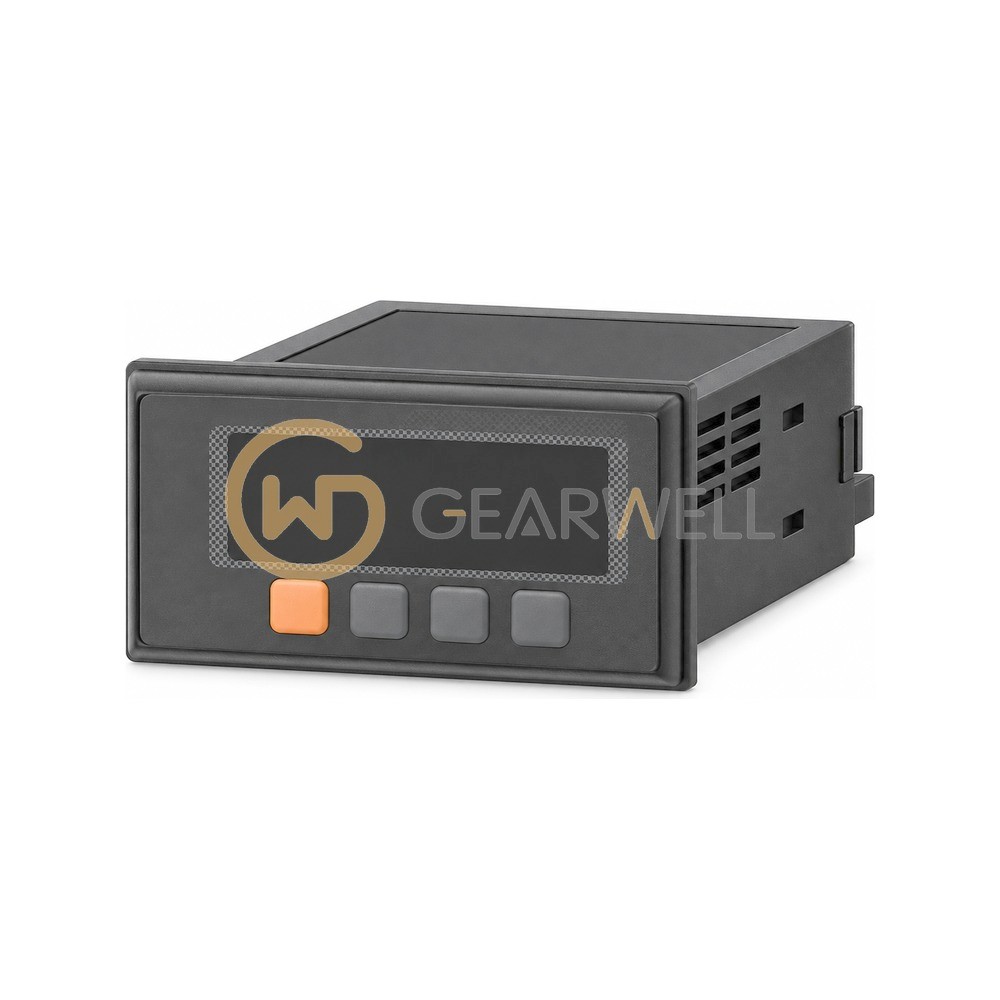

AUTONICS MP5Y-4N MP5Y Digital Pulse Meter Indicator
- Brand
- AUTONICS
- Model
- MP5Y-4N
- GEARWELL SKU
- GWP-000016419
- Category
- Test & Measurement
Key specifications
- Main output
- Indicator
- Input method
- Voltage input (PNP), no-voltage input (NPN)
- Power voltage
- 100-240VAC 50/60Hz
- Display method
- 5-digit 7-segment LED
- Operation modes
- 16 (frequency, revolutions, speed, cycle, time, ratio, density, error, length, interval, accumulation, addition/subtraction)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS MP5Y-4N MP5Y Digital Pulse Meter Indicator |
|---|---|
| Brand | AUTONICS |
| Model | MP5Y-4N |
| Category | Test & Measurement |
| Main output | Indicator |
| Input method | Voltage input (PNP), no-voltage input (NPN) |
| Power voltage | 100-240VAC 50/60Hz |
| Display method | 5-digit 7-segment LED |
| Operation modes | 16 (frequency, revolutions, speed, cycle, time, ratio, density, error, length, interval, accumulation, addition/subtraction) |
| Character height | 14 mm |
| Max. display range | -19999 to 99999 |
| Measurement range | 0.0005 Hz to 50 kHz |
| Protection structure | IP54 (front part, IEC standard) |
| External power supply | 12VDC ±10% 80mA max. |
