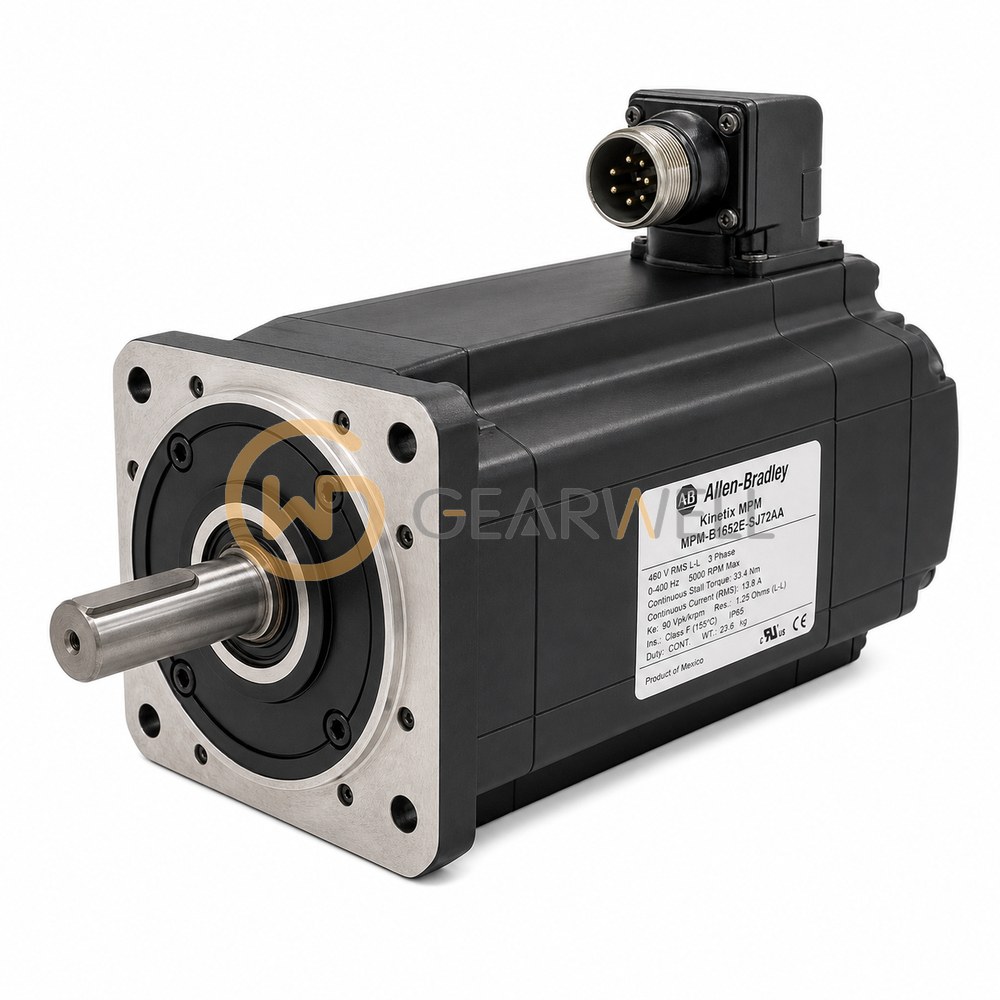

Allen-Bradley MPM-B1652E-SJ72AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPM-B1652E-SJ72AA
- GEARWELL SKU
- GWP-000001293
- Category
- Servo Systems
Key specifications
- Size
- 2250 r/m
- Voltage
- 460 V
- Connectors
- SpeedTEC DIN Connector, Right
- Brake Option
- No Brake
- Factory Options
- Standard
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPM-B1652E-SJ72AA is a Kinetix MPM medium-inertia servo motor (MPM-B1652E) for the 400V class with a 165 mm frame and 2 magnet stacks, a base speed of 2250 rpm, a rated speed of 3500 rpm and a maximum speed of 3500 rpm. Continuous stall torque is 19.4 N·m, peak stall torque 48.0 N·m and rated output 4.30 kW. It has a 1024 sin/cos absolute single-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, no brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPM-B1652E-SJ72AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPM-B1652E-SJ72AA |
| Category | Servo Systems |
| Size | 2250 r/m |
| Voltage | 460 V |
| Connectors | SpeedTEC DIN Connector, Right |
| Brake Option | No Brake |
| Factory Options | Standard |
| Magnet Stacks MPM | 2 Stacks |
