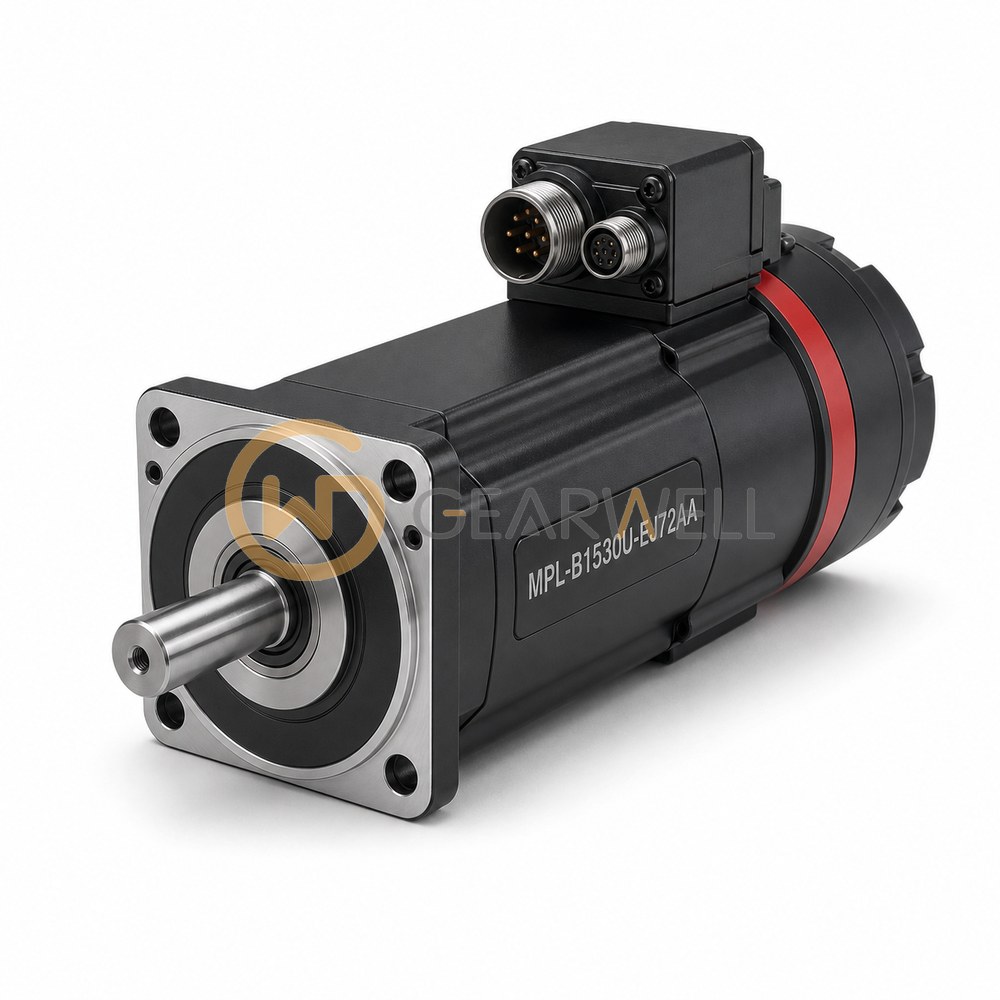

Allen-Bradley MPL-B1530U-EJ72AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B1530U-EJ72AA
- GEARWELL SKU
- GWP-000001509
- Category
- Servo Systems
Key specifications
- Frame size
- 63 mm
- Holding brake
- No holding brake
- Shaft
- Keyed shaft extension; no shaft seal
- Voltage class
- 400 V class
- Feedback
- Single-turn absolute encoder, 128 sin/cos, Hiperface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B1530U-EJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 63 mm frame, rated 0.39 kW at 7000 rpm with 0.90 N·m continuous stall torque and 2.80 N·m peak stall torque. This version has a 128 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B1530U-EJ72AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B1530U-EJ72AA |
| Category | Servo Systems |
| Frame size | 63 mm |
| Holding brake | No holding brake |
| Shaft | Keyed shaft extension; no shaft seal |
| Voltage class | 400 V class |
| Feedback | Single-turn absolute encoder, 128 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Motor type | Low-inertia brushless servo motor |
| Lifecycle status | Active |
| Magnet stack length | 76.2 mm |
