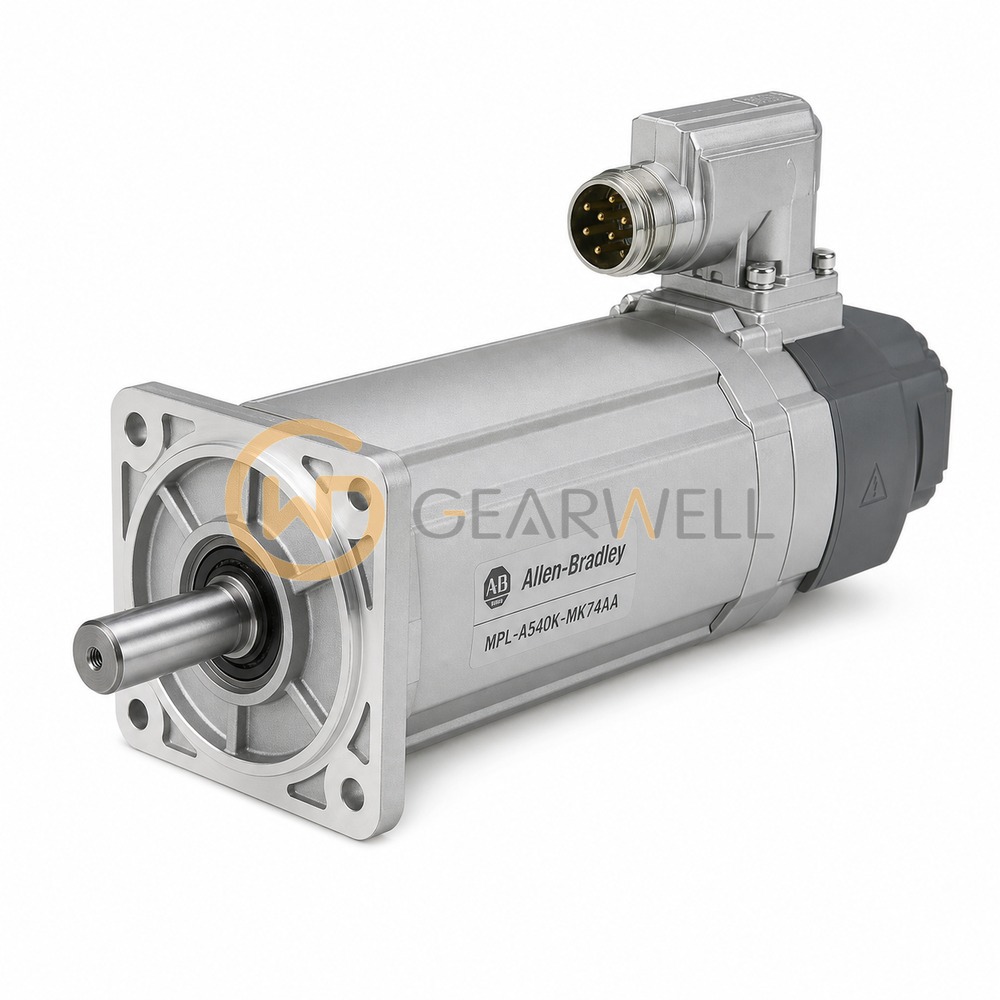

Allen-Bradley MPL-A540K-MK74AA MP-Series Low-Inertia Servo Motor

Product overview

The Allen-Bradley MPL-A540K-MK74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 165 mm frame, rated 5.5 kW at 4000 rpm with 19.4 N·m continuous stall torque and 48.6 N·m peak stall torque. This version has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a plain shaft without key or shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
