Allen-Bradley MPL-B220T-VI72AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B220T-VI72AA
- GEARWELL SKU
- GWP-000002998
- Category
- Servo Systems
Key specifications
- Typical application
- Industrial servo motion control
- Product type
- Low-inertia brushless servo motor
- Product family
- MP-Series Low-inertia
- Identification scope
- Family-level identification; exact configuration requires the complete catalog number
- Platform compatibility
- Allen-Bradley MP-Series servo motor family
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

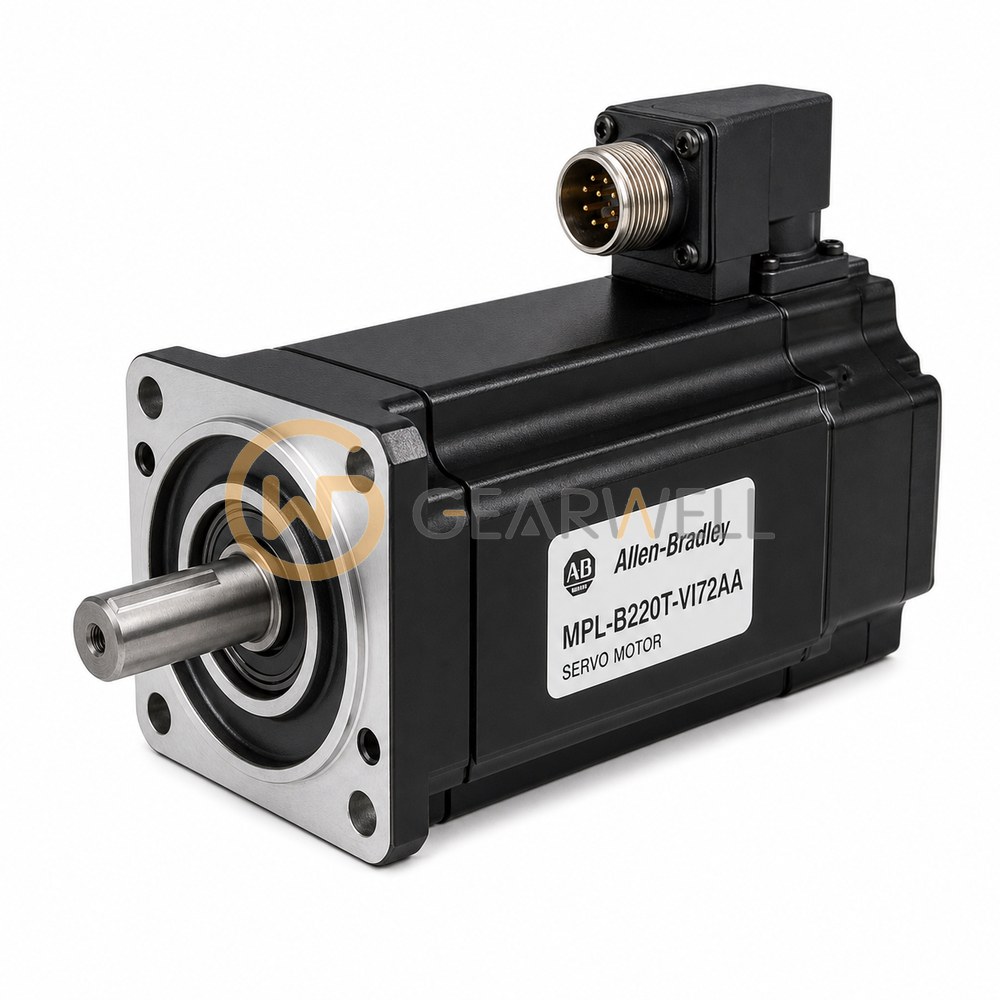

The Allen-Bradley MPL-B220T-VI72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 75 mm frame, rated 0.62 kW at 6000 rpm with 1.61 N·m continuous stall torque and 4.74 N·m peak stall torque. This version has a 128 sin/cos absolute multi-turn encoder (Hiperface), a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. The code "I" in the enclosure/shaft position is not listed in the current Rockwell catalog number key, so please confirm that part of the configuration against the motor nameplate. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B220T-VI72AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B220T-VI72AA |
| Category | Servo Systems |
| Typical application | Industrial servo motion control |
| Product type | Low-inertia brushless servo motor |
| Product family | MP-Series Low-inertia |
| Identification scope | Family-level identification; exact configuration requires the complete catalog number |
| Platform compatibility | Allen-Bradley MP-Series servo motor family |
