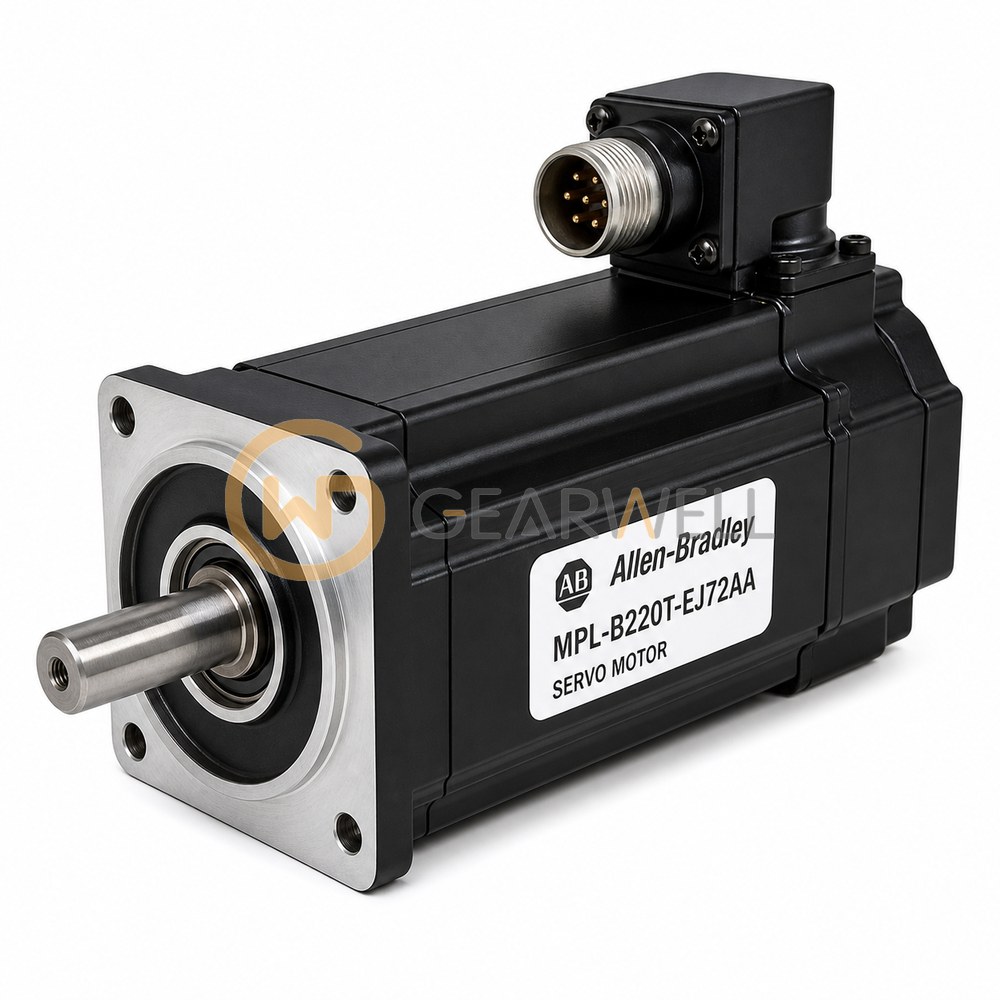

Allen-Bradley MPL-B220T-EJ72AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-B220T-EJ72AA
- GEARWELL SKU
- GWP-000004032
- Category
- Servo Systems
Key specifications
- Rated speed
- 6000 rpm
- Holding brake
- No holding brake
- Shaft
- Keyed shaft extension; no shaft seal
- Motor voltage (catalog)
- 460 V AC
- Feedback
- Single-turn absolute encoder, 128 sin/cos, Hiperface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-B220T-EJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 400 V-class drives in the 75 mm frame, rated 0.62 kW at 6000 rpm with 1.61 N·m continuous stall torque and 4.74 N·m peak stall torque. This version has a 128 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-B220T-EJ72AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B220T-EJ72AA |
| Category | Servo Systems |
| Rated speed | 6000 rpm |
| Holding brake | No holding brake |
| Shaft | Keyed shaft extension; no shaft seal |
| Motor voltage (catalog) | 460 V AC |
| Feedback | Single-turn absolute encoder, 128 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 75 mm |
| Motor type | Low-inertia brushless servo motor |
| Lifecycle status | Active |
