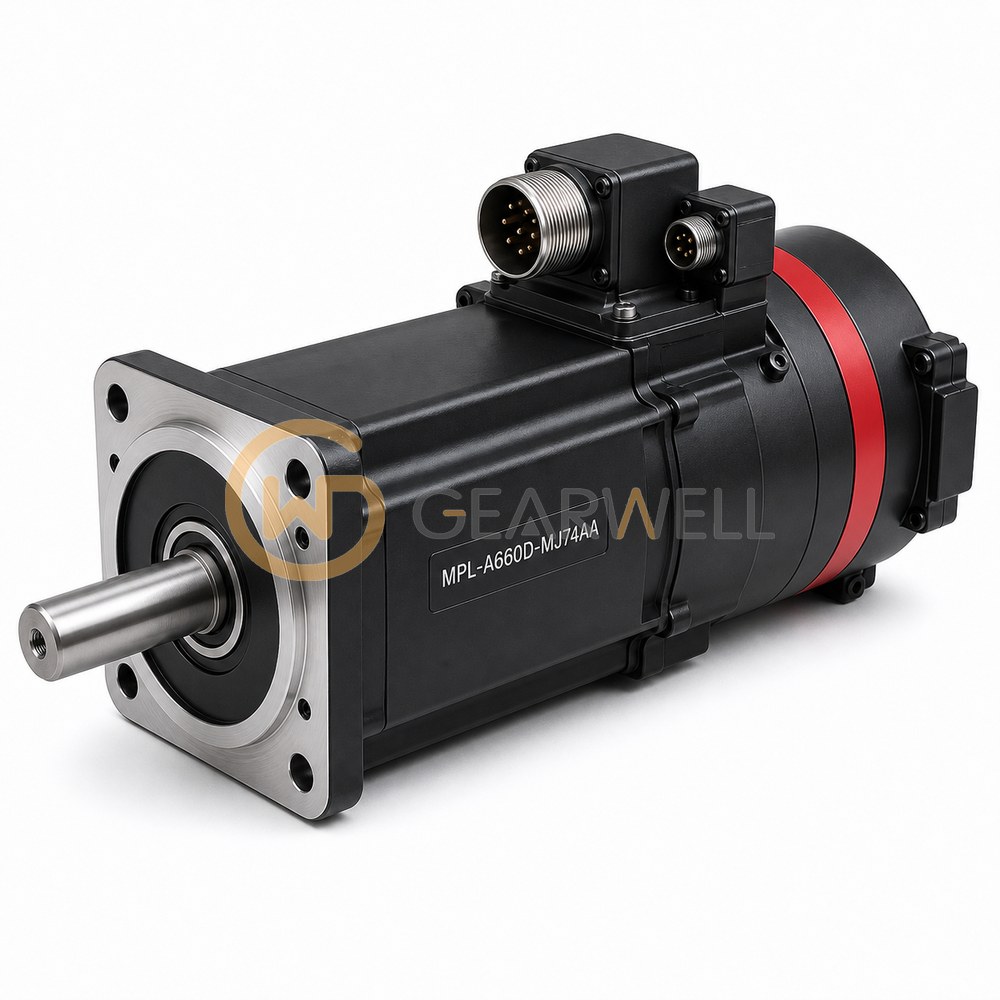

Allen-Bradley MPL-A660D-MJ74AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-A660D-MJ74AA
- GEARWELL SKU
- GWP-000001878
- Category
- Servo Systems
Key specifications
- Frame size
- 215 mm
- Rated speed
- 2250 rpm
- Product type
- Kinetix MPL brushless AC synchronous servo motor
- Motor rated output
- 6.15 kW
- Maximum speed
- 3000 rpm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-A660D-MJ74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 215 mm frame, rated 6.15 kW at 3000 rpm with 48.0 N·m continuous stall torque and 113.0 N·m peak stall torque. This version has a 1024 sin/cos absolute multi-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-A660D-MJ74AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A660D-MJ74AA |
| Category | Servo Systems |
| Frame size | 215 mm |
| Rated speed | 2250 rpm |
| Product type | Kinetix MPL brushless AC synchronous servo motor |
| Motor rated output | 6.15 kW |
| Maximum speed | 3000 rpm |
| Voltage class | 200 V class |
| Peak stall torque | 113.0 N·m |
| Continuous stall torque | 48.0 N·m |
