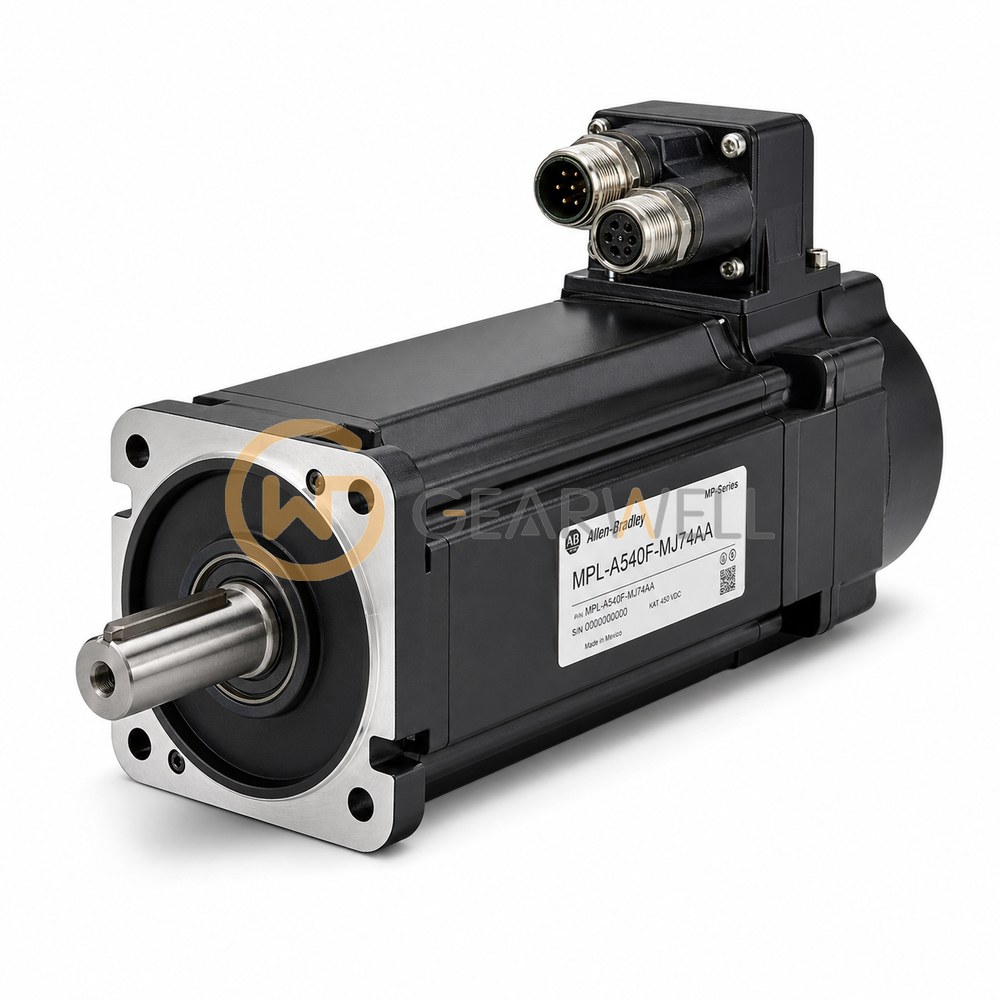

Allen-Bradley MPL-A540F-MJ74AA Low-Inertia Servo Motor
- Brand
- Allen-Bradley
- Model
- MPL-A540F-MJ74AA
- GEARWELL SKU
- GWP-000001276
- Category
- Servo Systems
Key specifications
- Type
- servo motor
- Holding brake
- 24 V DC holding brake
- Shaft
- Keyed shaft extension; no shaft seal
- Voltage class
- 200 V class
- Feedback
- Multi-turn absolute encoder, 1024 sin/cos, Hiperface
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley MPL-A540F-MJ74AA Low-Inertia Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A540F-MJ74AA |
| Category | Servo Systems |
| Type | servo motor |
| Holding brake | 24 V DC holding brake |
| Shaft | Keyed shaft extension; no shaft seal |
| Voltage class | 200 V class |
| Feedback | Multi-turn absolute encoder, 1024 sin/cos, Hiperface |
| Connectors | SpeedTec DIN right-angle connectors, 180-degree rotatable |
| Frame size | 165 mm |
| Motor type | Low-inertia brushless servo motor |
| Lifecycle status | Active |
| Magnet stack length | 101.6 mm |
