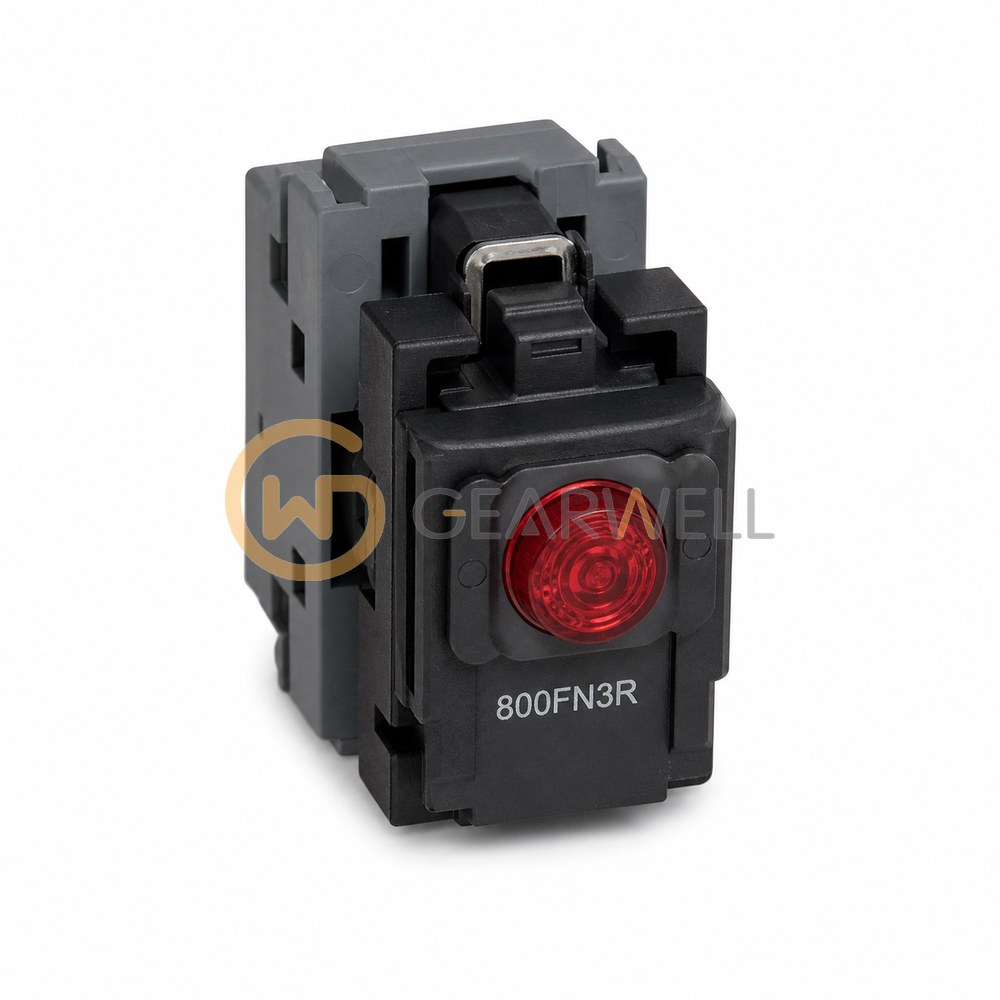

Allen-Bradley 800FN3R Red 24V AC/DC LED Module
- Brand
- Allen-Bradley
- Model
- 800FN3R
- GEARWELL SKU
- GWP-000001692
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm LED Module
- Lamp type
- LED
- Supply type
- AC/DC
- Mounting style
- Latch
- Operating temperature (manufacturer-listed value)
- -25 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800F-N3R is a Bulletin 800F integrated LED power module with a red LED and screw terminals for 24V AC (10…29V AC) or 24V DC (10…30V DC), for all illuminated 800F devices. It is sold in packages of 10, latch not included.
Technical reference
| Product name | Allen-Bradley 800FN3R Red 24V AC/DC LED Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FN3R |
| Category | Industrial Automation Parts |
| Type | 22mm LED Module |
| Lamp type | LED |
| Supply type | AC/DC |
| Mounting style | Latch |
| Operating temperature (manufacturer-listed value) | -25 °C |
| Illumination lamp type | Red LED |
| Operating voltage range | 10...29V AC / 10...30V DC |
| Illumination module type | LED |
| Illumination module input voltage | 24V AC/DC (incandescent or LED) |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
