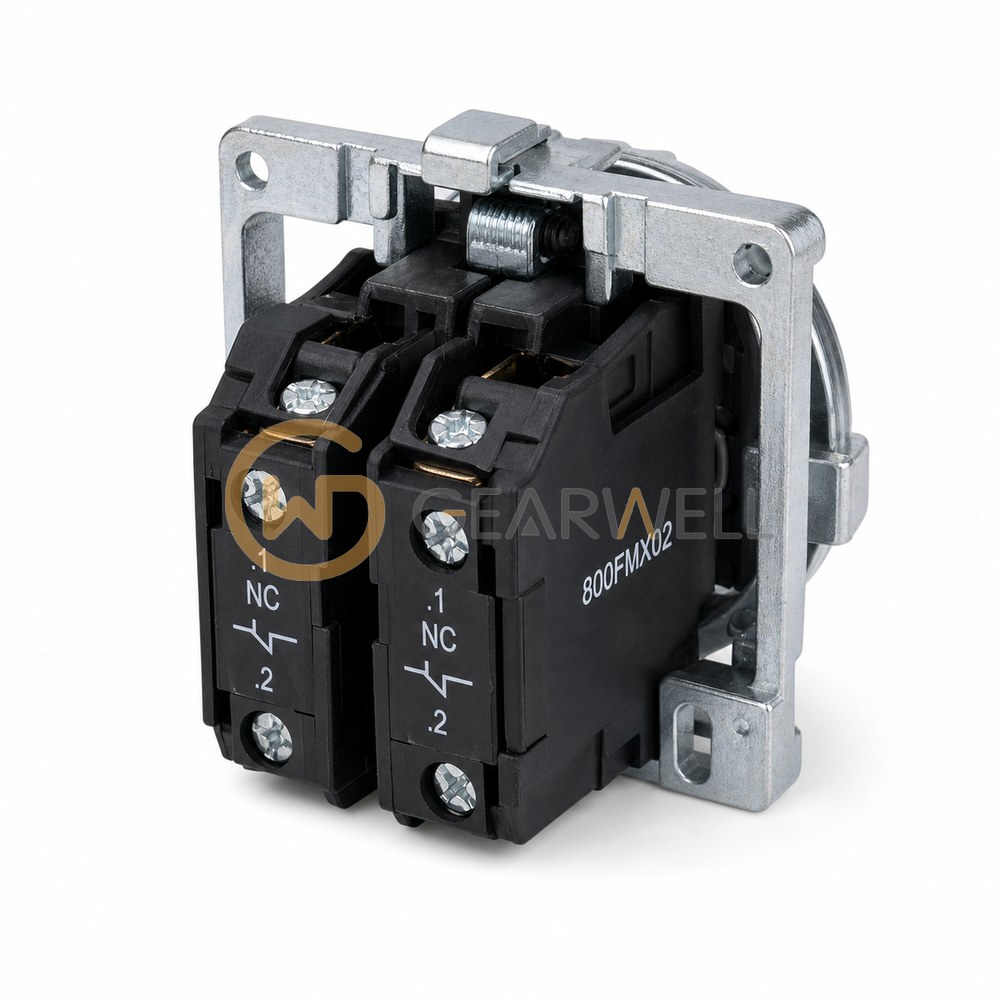

Allen-Bradley 800FMX02 Metal-Latch 2 NC Contact Assembly
- Brand
- Allen-Bradley
- Model
- 800FMX02
- GEARWELL SKU
- GWP-000001318
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm Back of Panel Composite
- Latch material
- Metal
- Contact block type
- Standard
- Contact termination
- Screw
- Total contact configuration
- 2 NC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800F-MX02 is a Bulletin 800F back-of-panel assembly: a metal latch with 2 N.C. contact blocks with screw terminals. Standard contact blocks are rated A600 and Q600, with 10 A thermal current and a contact life of 10,000,000 cycles.
Technical reference
| Product name | Allen-Bradley 800FMX02 Metal-Latch 2 NC Contact Assembly |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FMX02 |
| Category | Industrial Automation Parts |
| Type | 22mm Back of Panel Composite |
| Latch material | Metal |
| Contact block type | Standard |
| Contact termination | Screw |
| Total contact configuration | 2 NC |
| Operating temperature (manufacturer-listed value) | -25 °C |
| Illumination lamp type | No power module |
| Illumination module type | No power module |
| Illumination module input voltage | No power module |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
