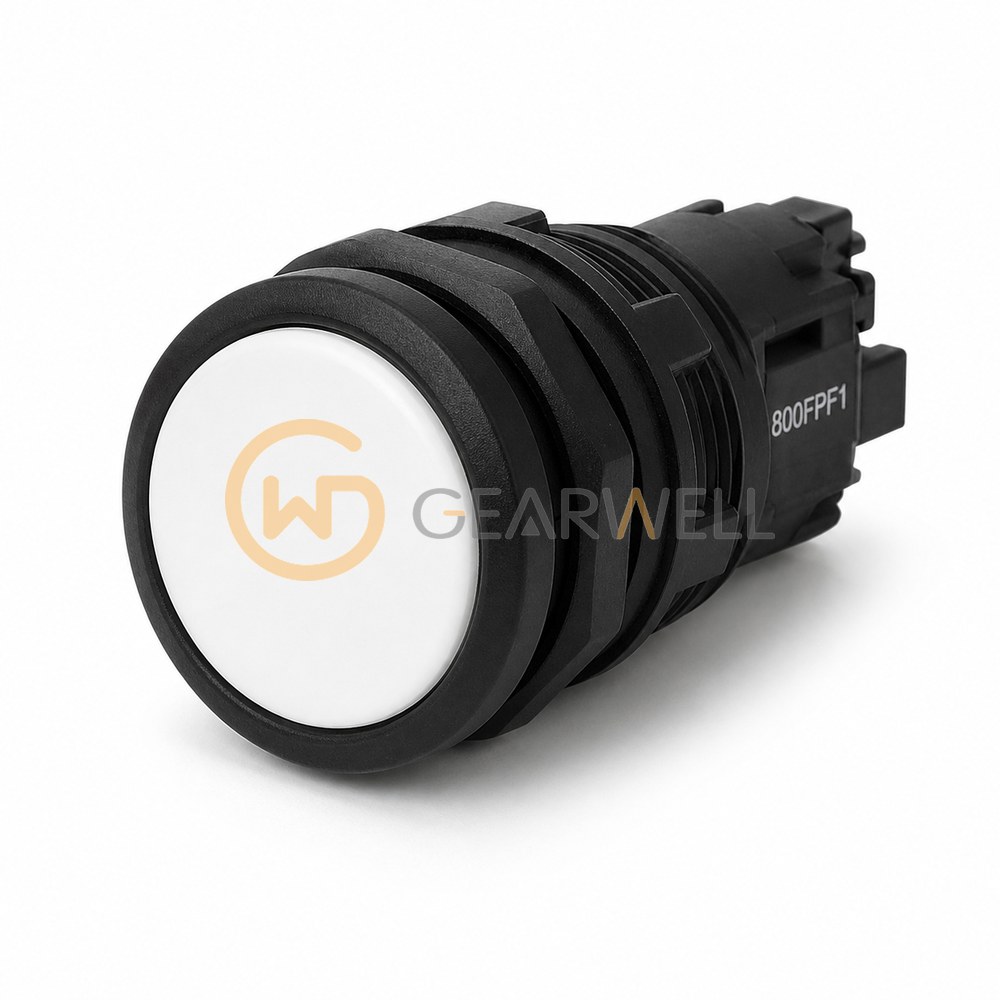

Allen-Bradley 800FPF1 White Flush Momentary Push Button Operator
- Brand
- Allen-Bradley
- Model
- 800FPF1
- GEARWELL SKU
- GWP-000002623
- Category
- Industrial Automation Parts
Key specifications
- Type
- 22mm Momentary Push Button
- Humidity
- ≤95% RH from 25...60 °C (77...140 °F)
- Hole diameter
- 22.5 mm
- Operator type
- Push button
- Operator color
- White
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800FP-F1 is a Bulletin 800F 22.5 mm momentary flush push button operator with a white cap: a round plastic operator, rated IP69K and IP66, Type 4/4X/13, with a typical operating force of 5 N and a mechanical life of 10,000,000 cycles. The mounting ring is included with the operator. Latch and contact blocks are ordered separately.
Technical reference
| Product name | Allen-Bradley 800FPF1 White Flush Momentary Push Button Operator |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FPF1 |
| Category | Industrial Automation Parts |
| Type | 22mm Momentary Push Button |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Hole diameter | 22.5 mm |
| Operator type | Push button |
| Operator color | White |
| Minimum mechanical life (cycles) | 1.0E7 |
| Operator cap type | Flush push-button |
| Short-term storage temperature | -40...+85 °C |
| Operating temperature | -25...+70 °C; below 0 °C requires no freezing moisture or liquids; UL recognized to 55 °C |
| Operator construction | Plastic |
| Enclosure compatibility | IP69K, IP66, Type 4/4X/13 (Round plastic operator) |
