Allen-Bradley 800FN3W White 24V AC/DC LED Module
- Brand
- Allen-Bradley
- Model
- 800FN3W
- GEARWELL SKU
- GWP-000003134
- Category
- Industrial Automation Parts
Key specifications
- Lamp type
- LED
- Supply type
- AC/DC
- Mounting style
- Latch
- Operating temperature (manufacturer-listed value)
- -25 °C
- Illumination lamp type
- White LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

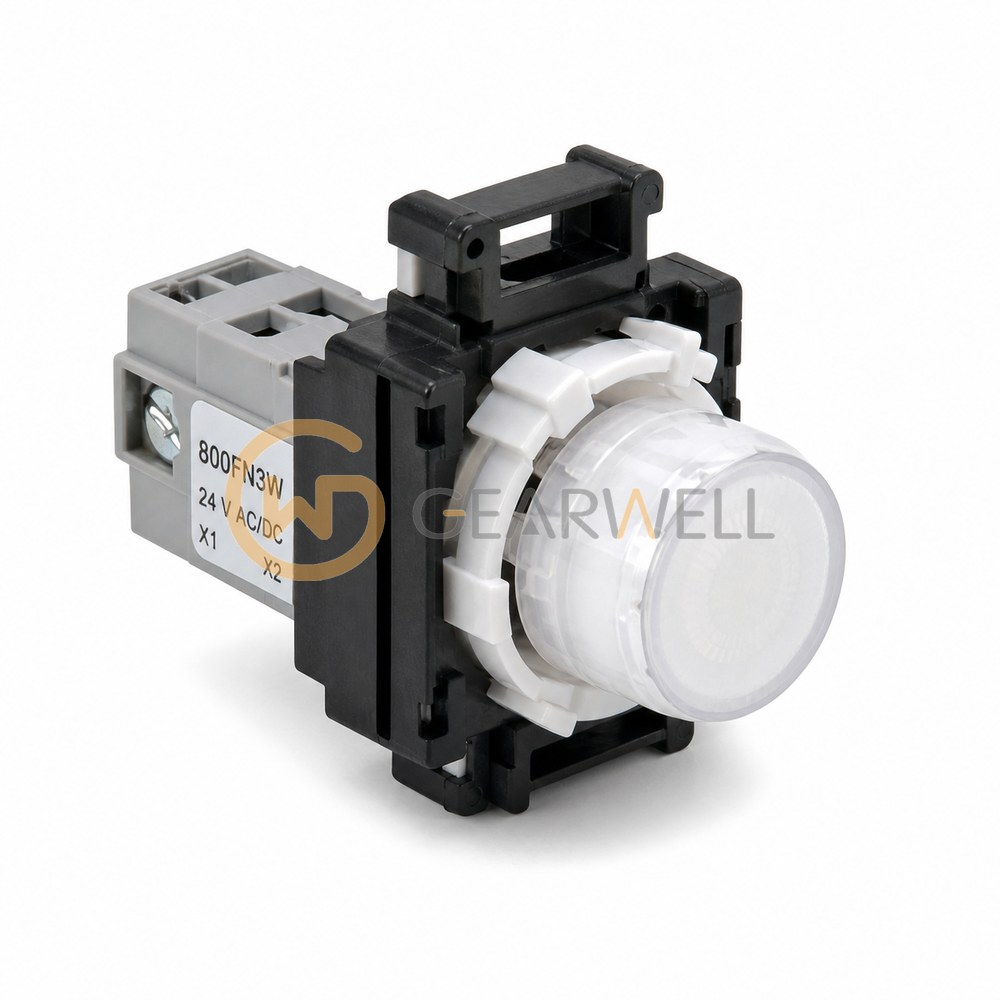

The Allen-Bradley 800F-N3W is a Bulletin 800F integrated LED power module with a white LED and screw terminals for 24V AC (10…29V AC) or 24V DC (10…30V DC); white is the recommended LED for yellow, blue and amber operators. It is sold in packages of 10, latch not included.
Technical reference
| Product name | Allen-Bradley 800FN3W White 24V AC/DC LED Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FN3W |
| Category | Industrial Automation Parts |
| Lamp type | LED |
| Supply type | AC/DC |
| Mounting style | Latch |
| Operating temperature (manufacturer-listed value) | -25 °C |
| Illumination lamp type | White LED |
| Operating voltage range | 10...29V AC / 10...30V DC |
| Illumination module type | LED |
| Operator mounting hole dimension | 22.5 mm |
| Illumination module input voltage | 24V AC/DC (incandescent or LED) |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
