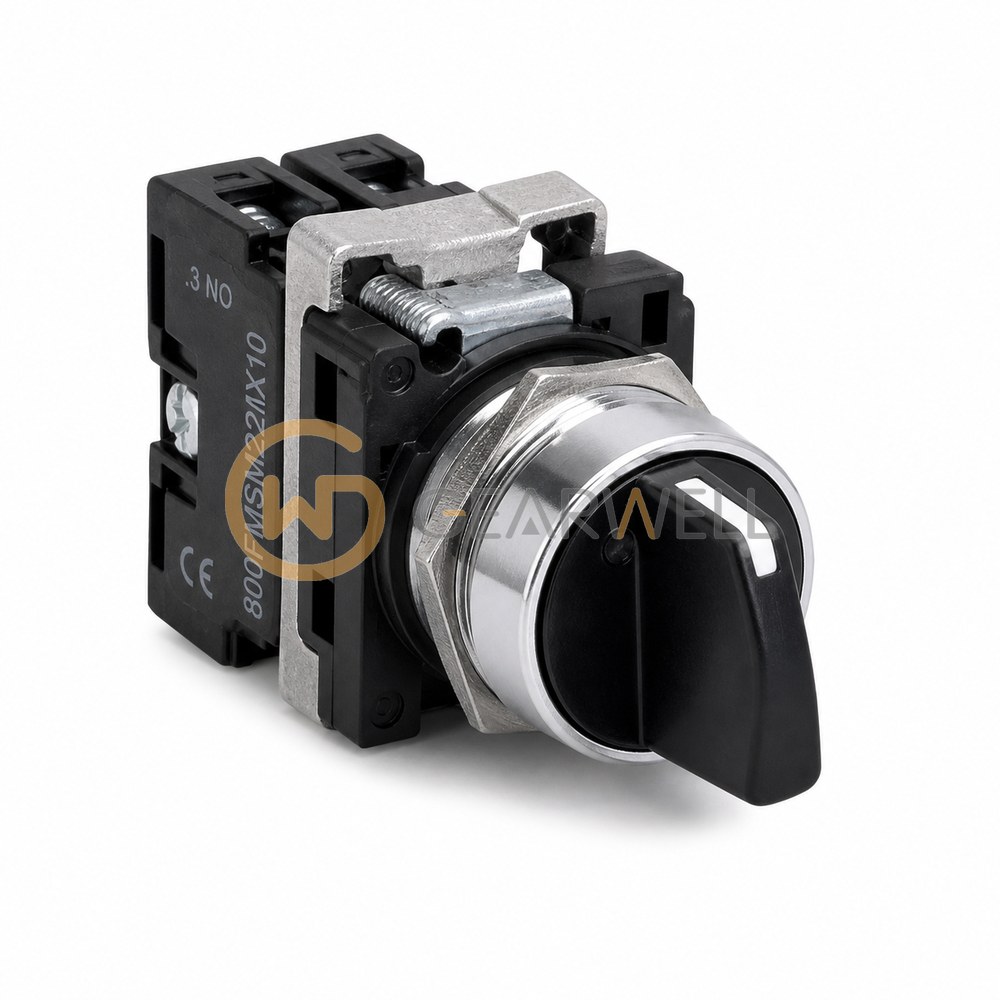

Allen-Bradley 800FMSM22MX10 2-Position Maintained Selector Switch, 1 NO
- Brand
- Allen-Bradley
- Model
- 800FMSM22MX10
- GEARWELL SKU
- GWP-000001456
- Category
- Industrial Automation Parts
Key specifications
- Positions
- 2
- Knob / insert color
- Black knob with white insert
- Product type
- Selector-switch operator
- Mounting hole
- 22.5 mm
- Operator action
- Maintained
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800FM-SM22MX10 is a complete Bulletin 800F 22.5 mm 2-position selector switch: the 800FM-SM22 metal operator (black knob with white insert, maintained, 60° switching angle, IP66, Type 4/13) together with a metal latch and 1 N.O. contact block with screw terminals.
Technical reference
| Product name | Allen-Bradley 800FMSM22MX10 2-Position Maintained Selector Switch, 1 NO |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FMSM22MX10 |
| Category | Industrial Automation Parts |
| Positions | 2 |
| Knob / insert color | Black knob with white insert |
| Product type | Selector-switch operator |
| Mounting hole | 22.5 mm |
| Operator action | Maintained |
| Switching angle | 60° |
| Contact termination | Screw termination |
| Contact configuration | 1 N.O. |
| Operator construction | Round metal operator |
| Contact-block thermal current | 10 A |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
