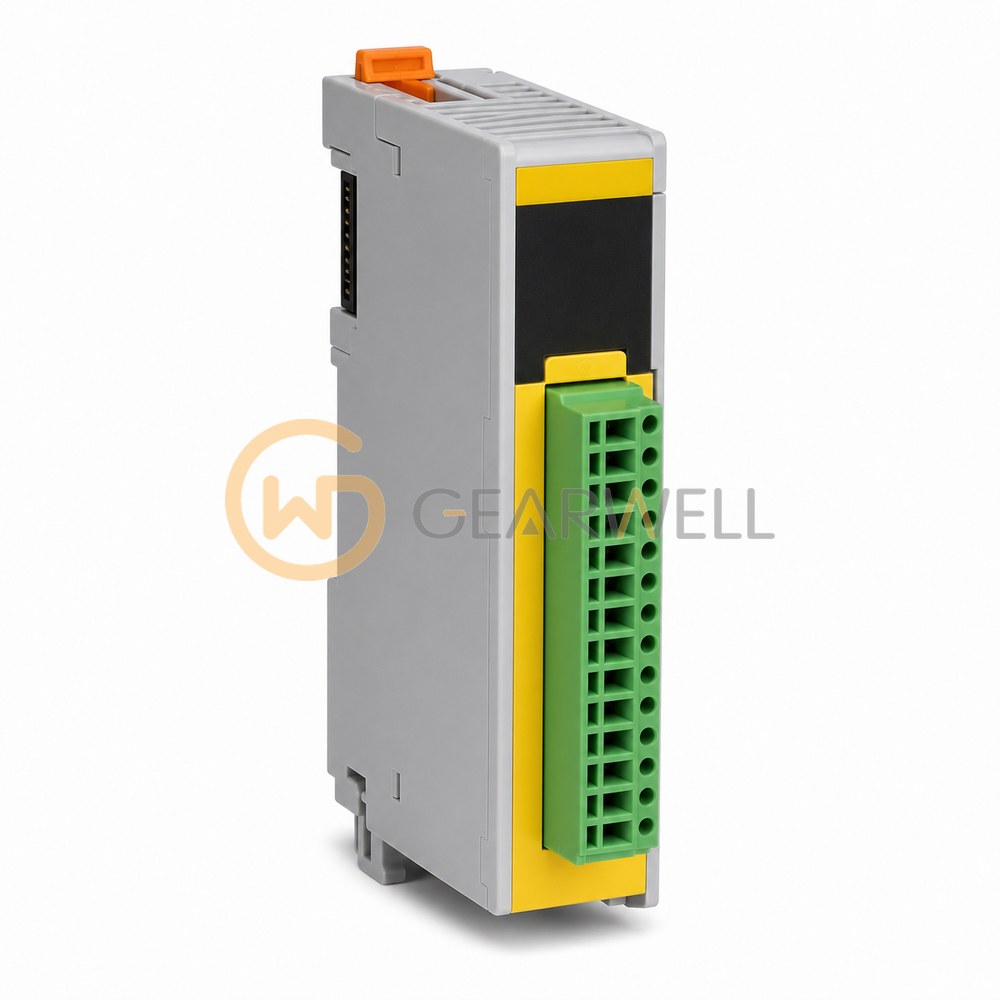

Allen-Bradley 5069-IB8S Compact 5000 8-Channel Safety Input Module
- Brand
- Allen-Bradley
- Model
- 5069-IB8S
- GEARWELL SKU
- GWP-000001534
- Category
- PLCs & I/O
Key specifications
- Overall depth, approx.
- 105.4 mm
- Overall height, approx.
- 144.6 mm
- Isolation voltage
- 250 V continuous, basic insulation
- MOD power consumption
- 75 mA at 18-32 V DC
- Configurable input delay
- 0-50 ms, off-to-on and on-to-off; default 0 ms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-IB8S is a Compact 5000 18…32V DC 8-point safety sinking input module. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-IB8S Compact 5000 8-Channel Safety Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-IB8S |
| Category | PLCs & I/O |
| Overall depth, approx. | 105.4 mm |
| Overall height, approx. | 144.6 mm |
| Isolation voltage | 250 V continuous, basic insulation |
| MOD power consumption | 75 mA at 18-32 V DC |
| Configurable input delay | 0-50 ms, off-to-on and on-to-off; default 0 ms |
| Input on-state voltage | 10-32 V DC; 24 V DC nominal |
| Product type | Compact 5000 safety sinking input module |
| Test outputs | 2 test outputs plus 2 test/muting outputs |
| Safety input channels | 8, sinking |
| Safety reaction time | 6 ms |
