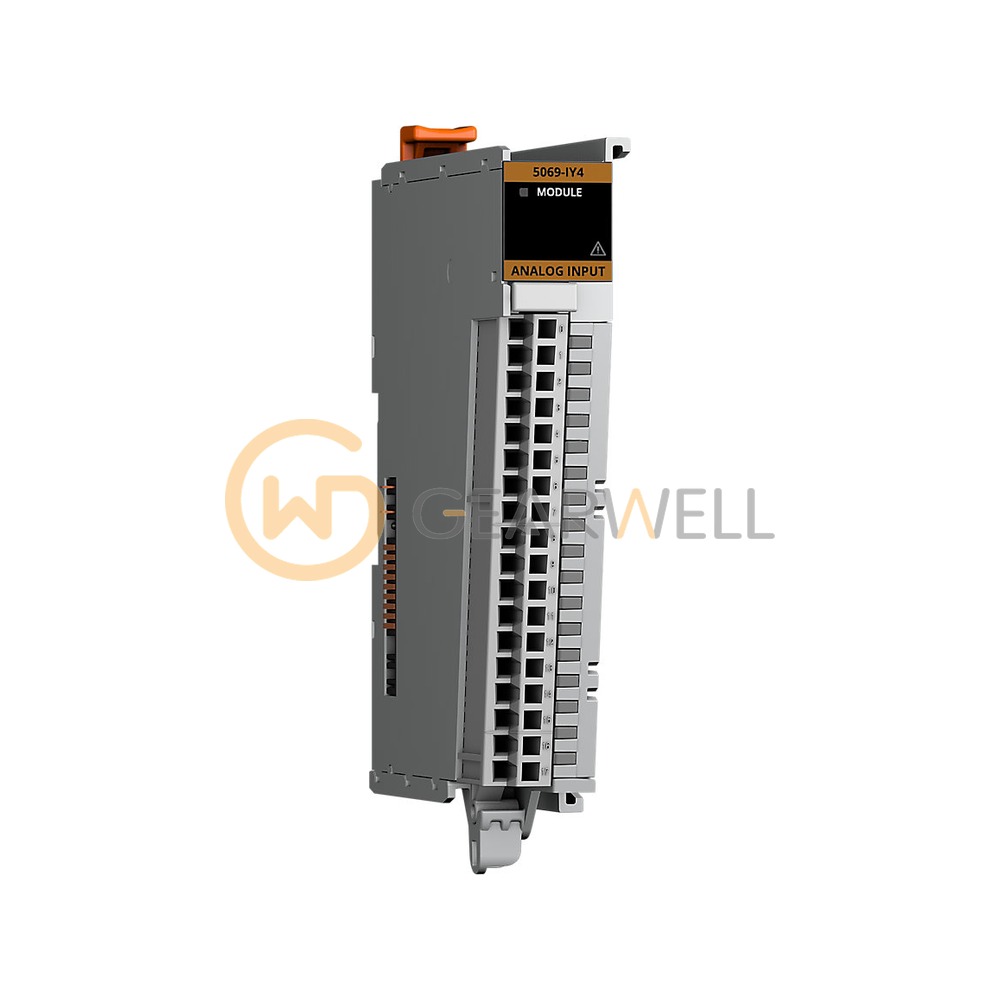

Allen-Bradley 5069-IY4 Compact 5000 4-Ch Universal Analog Input Module
- Brand
- Allen-Bradley
- Model
- 5069-IY4
- GEARWELL SKU
- GWP-000014913
- Category
- PLCs & I/O
Key specifications
- Inputs
- 4 differential
- SA power
- 100 mA @ 18...32V DC
- MOD power
- 75 mA @ 18...32V DC
- Data format
- IEEE 32-bit floating point
- Description
- 5069 Compact I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-IY4 is the Compact 5000 I/O 4-channel current/voltage/RTD/thermocouple input module, and any combination of these input types can be used on its channels. It uses Sigma-Delta conversion with one 24-bit multiplexed ADC (16 bits at 10 Hz notch filter), has a calibrated accuracy of 0.100% full scale at 25 °C in every mode and a scan time of 625 µs per channel. It reads thermocouple types B, C, D, E, J, K, L, N, R, S and T in the ± 100 mV range, and 100, 200, 500 and 1000 ohm platinum RTDs. If at least one thermocouple is connected, the 5069-RTB14CJC RTB with its 2 embedded thermistors must be used; RTBs are ordered separately. The 5069-IY4K is the conformal coated version.
Technical reference
| Product name | Allen-Bradley 5069-IY4 Compact 5000 4-Ch Universal Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-IY4 |
| Category | PLCs & I/O |
| Inputs | 4 differential |
| SA power | 100 mA @ 18...32V DC |
| MOD power | 75 mA @ 18...32V DC |
| Data format | IEEE 32-bit floating point |
| Description | 5069 Compact I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module |
| Catalog number | 5069-IY4 |
| Calibrated accuracy | 0.100% full scale @ 25 °C (voltage, current, RTD, TC/mV) |
| Input range, current | 0...20 mA, 4...20 mA |
| Input range, voltage | ±10V, 0...10V, 0...5V |
| Input type, thermocouple | B, C, D, E, J, K, L (TXK/XK), N, R, S, T |
