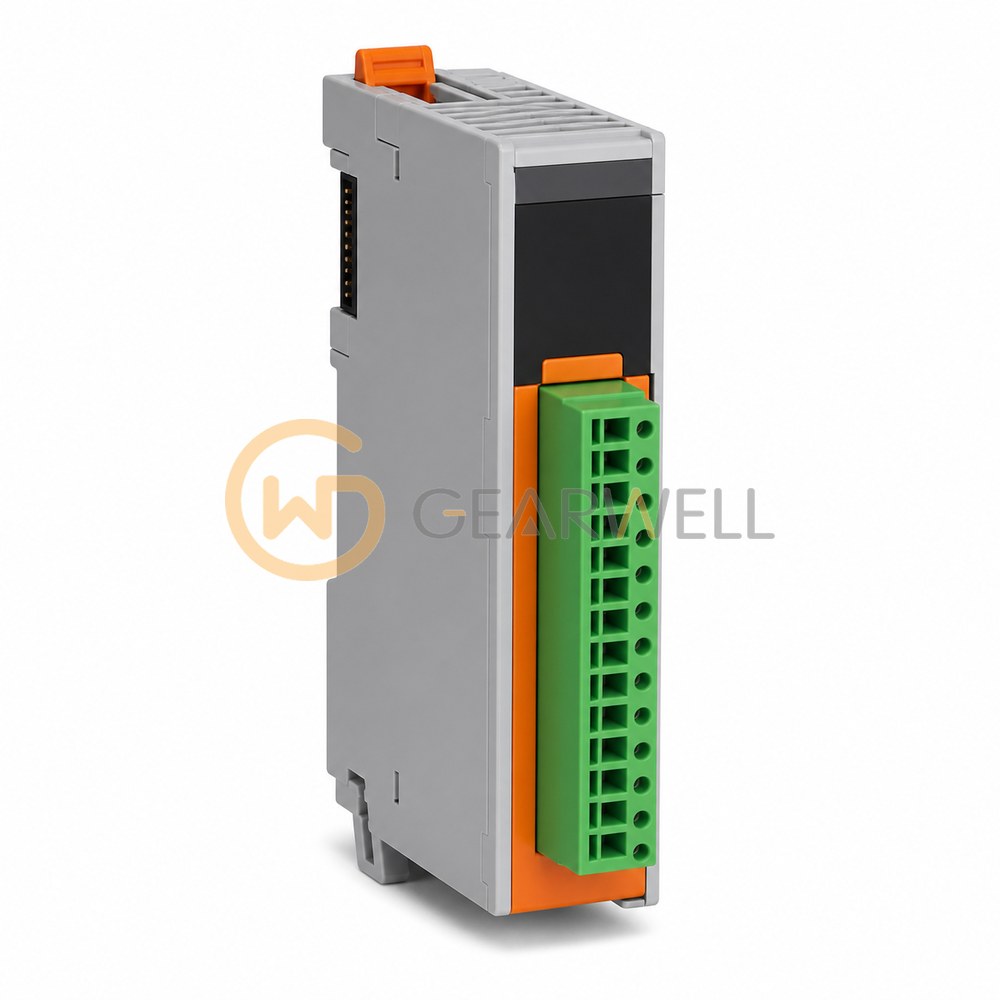

Allen-Bradley 5069-IF8 Compact 5000 8-Channel Analog Input Module
- Brand
- Allen-Bradley
- Model
- 5069-IF8
- GEARWELL SKU
- GWP-000001313
- Category
- PLCs & I/O
Key specifications
- SA power consumption
- 100 mA at 18-32 V DC
- MOD power consumption
- 75 mA at 18-32 V DC
- Scan time
- 625 microseconds per channel; 2.5 ms per four-channel group
- Calibration
- Factory calibrated; optional user calibration
- Product type
- 8-channel analog voltage/current input module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 5069-IF8 is a Compact 5000 8-channel current/voltage input module. Compact 5000 I/O modules work as local I/O in CompactLogix 5380 and Compact GuardLogix 5380 systems and as remote I/O behind a 5069 EtherNet/IP adapter, and Producer/Consumer technology lets several Logix 5000 controllers share their data. Configure it in Studio 5000 Logix Designer and order the field wiring terminal block separately as a 5069-RTB18-SCREW or 5069-RTB18-SPRING.
Technical reference
| Product name | Allen-Bradley 5069-IF8 Compact 5000 8-Channel Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 5069-IF8 |
| Category | PLCs & I/O |
| SA power consumption | 100 mA at 18-32 V DC |
| MOD power consumption | 75 mA at 18-32 V DC |
| Scan time | 625 microseconds per channel; 2.5 ms per four-channel group |
| Calibration | Factory calibrated; optional user calibration |
| Product type | 8-channel analog voltage/current input module |
| Input channels | 8; differential on Series A, single-ended on Series B |
| Input impedance | Voltage: greater than 1 megohm; current: 90 ohms typical (70-110 ohms) |
| Conversion method | Sigma-delta, two 24-bit multiplexed ADCs; effective resolution is range/filter dependent |
| Maximum power dissipation | 2.1 W in voltage mode; 2.4 W in current mode |
| Calibrated accuracy at 25 C | 0.10% full scale, voltage and current modes |
| Current input ranges | 0-20 mA; 4-20 mA |
| Voltage input ranges | +/-10 V; 0-10 V; 0-5 V |
