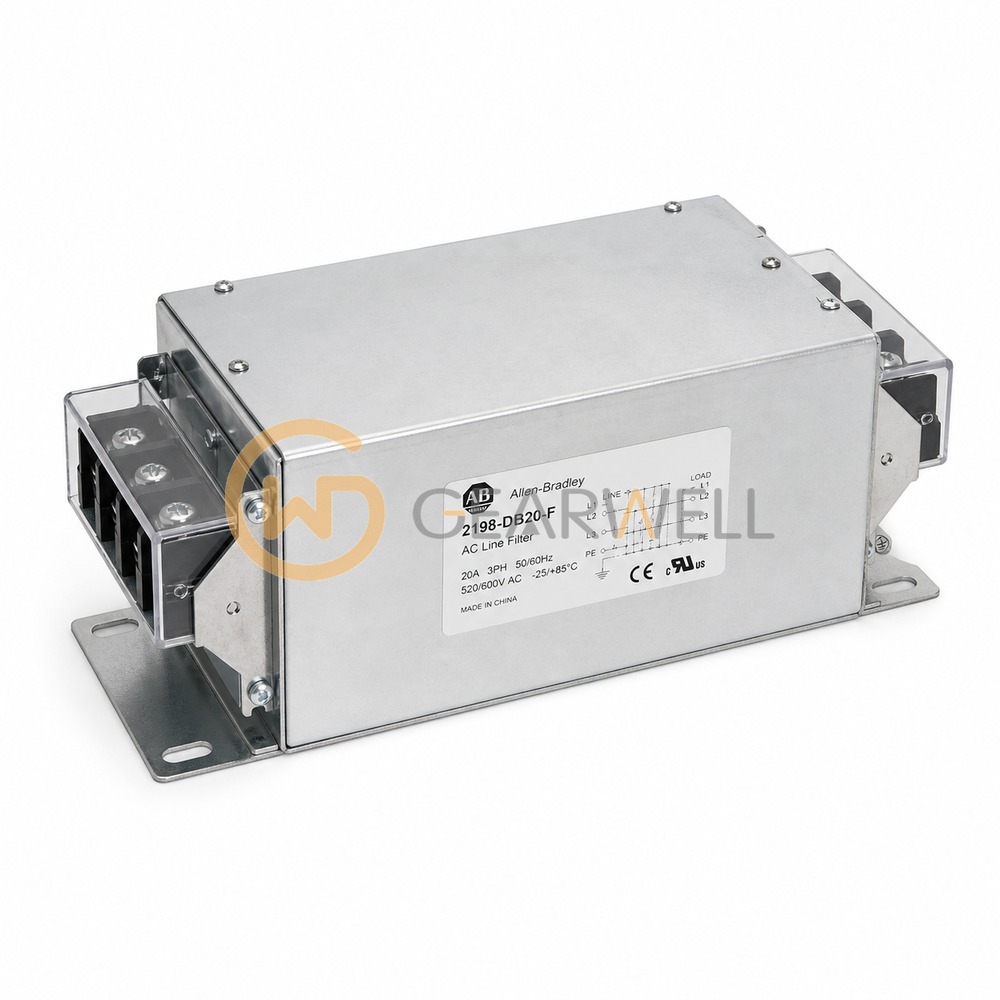

Allen-Bradley 2198-DB20-F Kinetix EMC AC Line Filter
- Brand
- Allen-Bradley
- Model
- 2198-DB20-F
- GEARWELL SKU
- GWP-000001996
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-DB20-F is a AC line filter from Rockwell's Kinetix servo drive accessory range. It is an AC line filter for Kinetix 5500 drives 2198-H025-ERSx and 2198-H040-ERSx and for the Kinetix 5700 2198-P031 DC-bus power supply. It is rated 528V AC max, three-phase 50/60 Hz, 20 A at 50 °C, with 5.1 W power loss, 5.2 mA leakage current and 1.63 kg weight, for 0…50 °C operation.
Technical reference
| Product name | Allen-Bradley 2198-DB20-F Kinetix EMC AC Line Filter |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-DB20-F |
| Category | Servo Systems |
