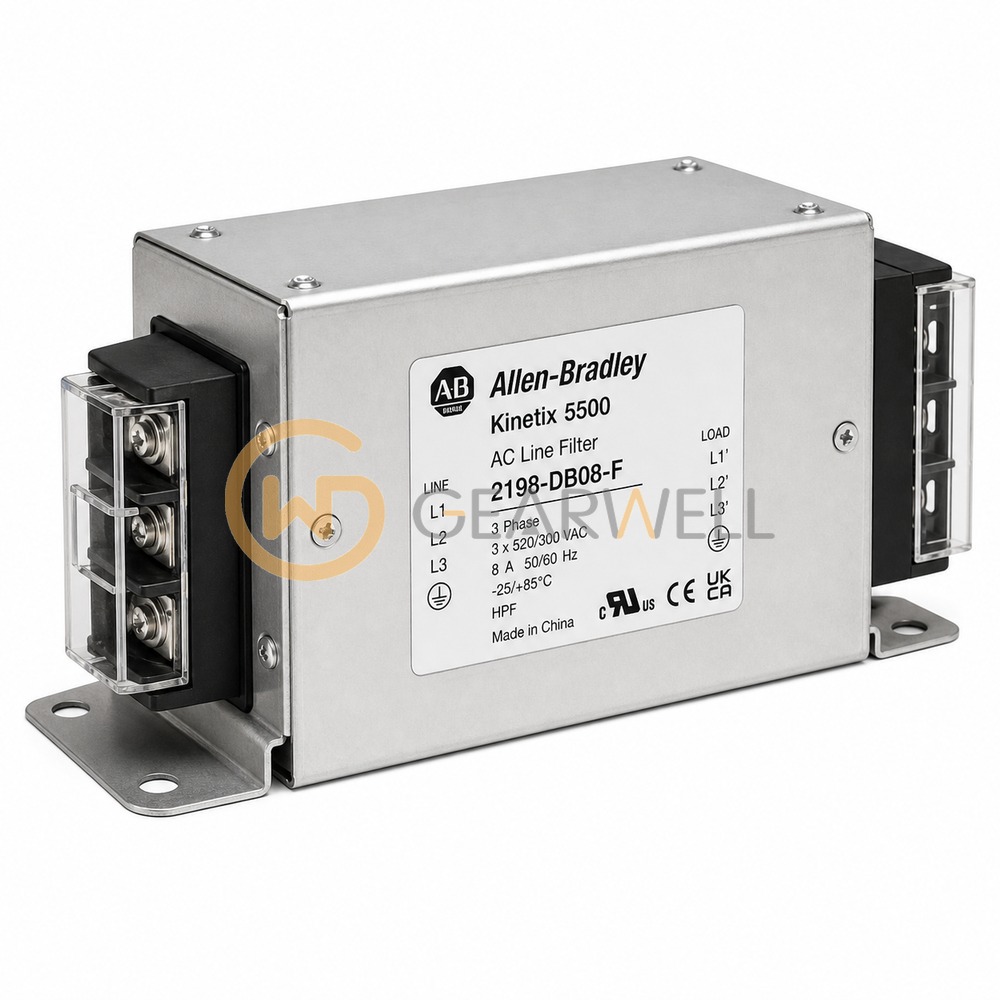

Allen-Bradley 2198-DB08-F Kinetix 5500 EMC Line Filter
- Brand
- Allen-Bradley
- Model
- 2198-DB08-F
- GEARWELL SKU
- GWP-000003277
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-DB08-F is a AC line filter from Rockwell's Kinetix servo drive accessory range. It is the single-drive AC line filter for Kinetix 5500 drives 2198-H003-ERSx, 2198-H008-ERSx and 2198-H015-ERSx. It is rated 528V AC max, three-phase 50/60 Hz (also for single-phase input installations), 7.5 A at 50 °C, with 3.6 W power loss, 2.5 mA leakage current and 0.77 kg weight, for 0…50 °C operation.
Technical reference
| Product name | Allen-Bradley 2198-DB08-F Kinetix 5500 EMC Line Filter |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-DB08-F |
| Category | Servo Systems |
