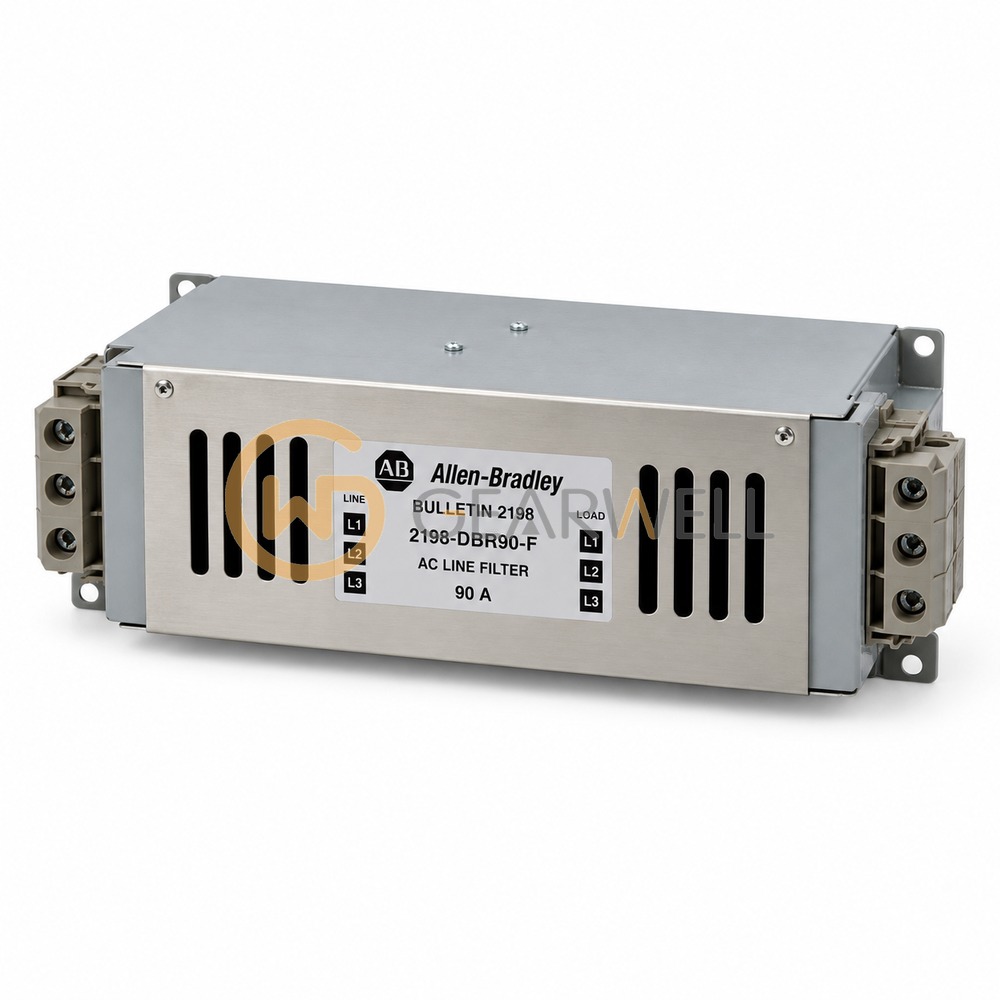

Allen-Bradley 2198-DBR90-F Kinetix 5700 90A AC Line Filter
- Brand
- Allen-Bradley
- Model
- 2198-DBR90-F
- GEARWELL SKU
- GWP-000000126
- Category
- Servo Systems
Key specifications
- Frequency
- 50/60 Hz
- Current rating
- 90 A at 50 °C
- Maximum voltage
- 528 V AC
- Approximate weight
- 4.1 kg
- Operating temperature
- 0 to 50 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-DBR90-F is a AC line filter from Rockwell's Kinetix servo drive accessory range. It is an AC line filter for Kinetix 5500 multi-axis systems (3 axes of 2198-H040-ERSx or 2 axes of 2198-H070-ERSx drives) and the Kinetix 5700 2198-P141 and 2198-P208 DC-bus power supplies. It is rated 528V AC max, three-phase 50/60 Hz, 90 A at 50 °C, with 16.8 W power loss, 34.0 mA leakage current and 4.1 kg weight, for 0…50 °C operation. With 2198-DBRxx-F line filters the maximum total motor-power cable length is up to 1200 m.
Technical reference
| Product name | Allen-Bradley 2198-DBR90-F Kinetix 5700 90A AC Line Filter |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-DBR90-F |
| Category | Servo Systems |
| Frequency | 50/60 Hz |
| Current rating | 90 A at 50 °C |
| Maximum voltage | 528 V AC |
| Approximate weight | 4.1 kg |
| Operating temperature | 0 to 50 °C |
