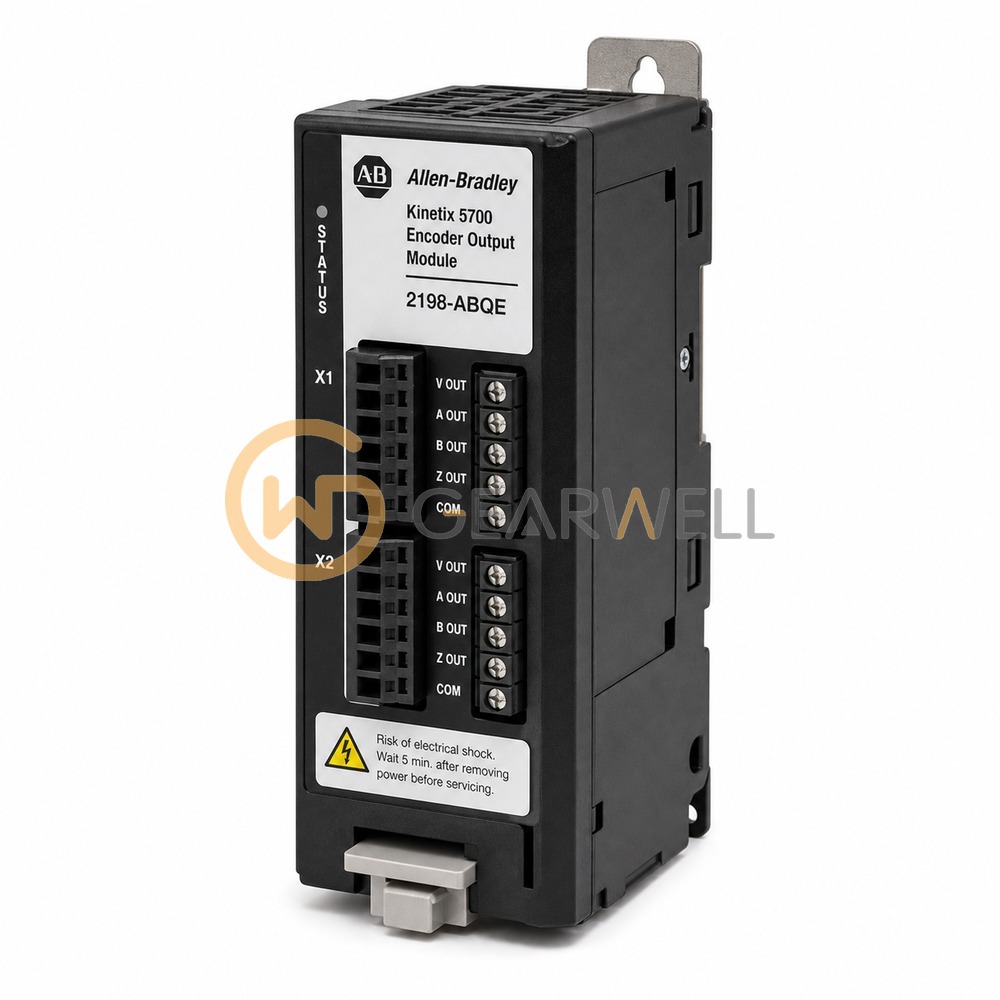

Allen-Bradley 2198-ABQE Kinetix EtherNet/IP Encoder Output Module
- Brand
- Allen-Bradley
- Model
- 2198-ABQE
- GEARWELL SKU
- GWP-000001129
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-ABQE is a encoder output module from Rockwell's Kinetix servo drive accessory range. It is a DIN-rail mounted, EtherNet/IP network-based standalone module that outputs encoder pulses to a customer-supplied peripheral device, for example cameras used in line-scan vision systems, and supports real and virtual axes with integrated motion on EtherNet/IP. Output signals are differential (RS422) or single-ended, with a 12…30V DC output supply for single-ended outputs. Control power is 21.6…26.4V DC (0.3 A max) and it weighs 0.50 kg. The 2198-K57CK-D15M connector kit (one per output connector) and the 2198-KITCON-ABQE connector and end-anchor set are ordered separately.
Technical reference
| Product name | Allen-Bradley 2198-ABQE Kinetix EtherNet/IP Encoder Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-ABQE |
| Category | Servo Systems |
