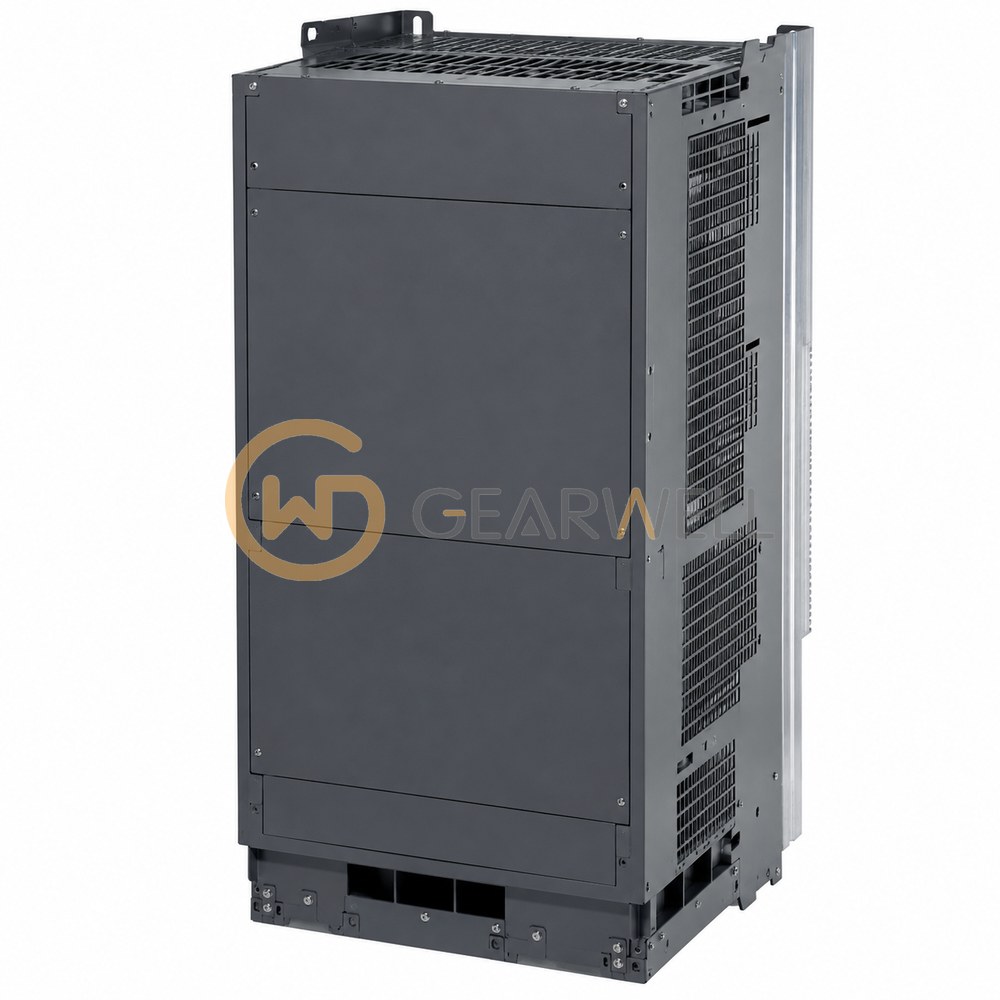

Allen-Bradley 20G2AND248JA0NNNNN PowerFlex 755TS 480 V AC 200 hp AC Drive

Key specifications

Operator interface: No factory-fitted HIM
Drive frame: 6
Nominal input voltage: 480 V AC, three-phase
Protection and cooling: Standard corrosive-gas protection; forced-air cooling
Rated motor output: 248 A continuous, 200 hp normal duty; 150 hp heavy duty

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 20G2AND248JA0NNNNN PowerFlex 755TS 480 V AC 200 hp AC Drive
Brand	Allen-Bradley
Model	20G2AND248JA0NNNNN
Category	Variable Frequency Drives
Operator interface	No factory-fitted HIM
Drive frame	6
Nominal input voltage	480 V AC, three-phase
Protection and cooling	Standard corrosive-gas protection; forced-air cooling
Rated motor output	248 A continuous, 200 hp normal duty; 150 hp heavy duty
Braking hardware	Internal braking transistor fitted; braking resistor not included
Built-in communication	Dual embedded EtherNet/IP ports
Configured enclosure	IP00, NEMA/UL Open Type
EMC filtering and CM jumper	EMC filter fitted; CM jumper installed
