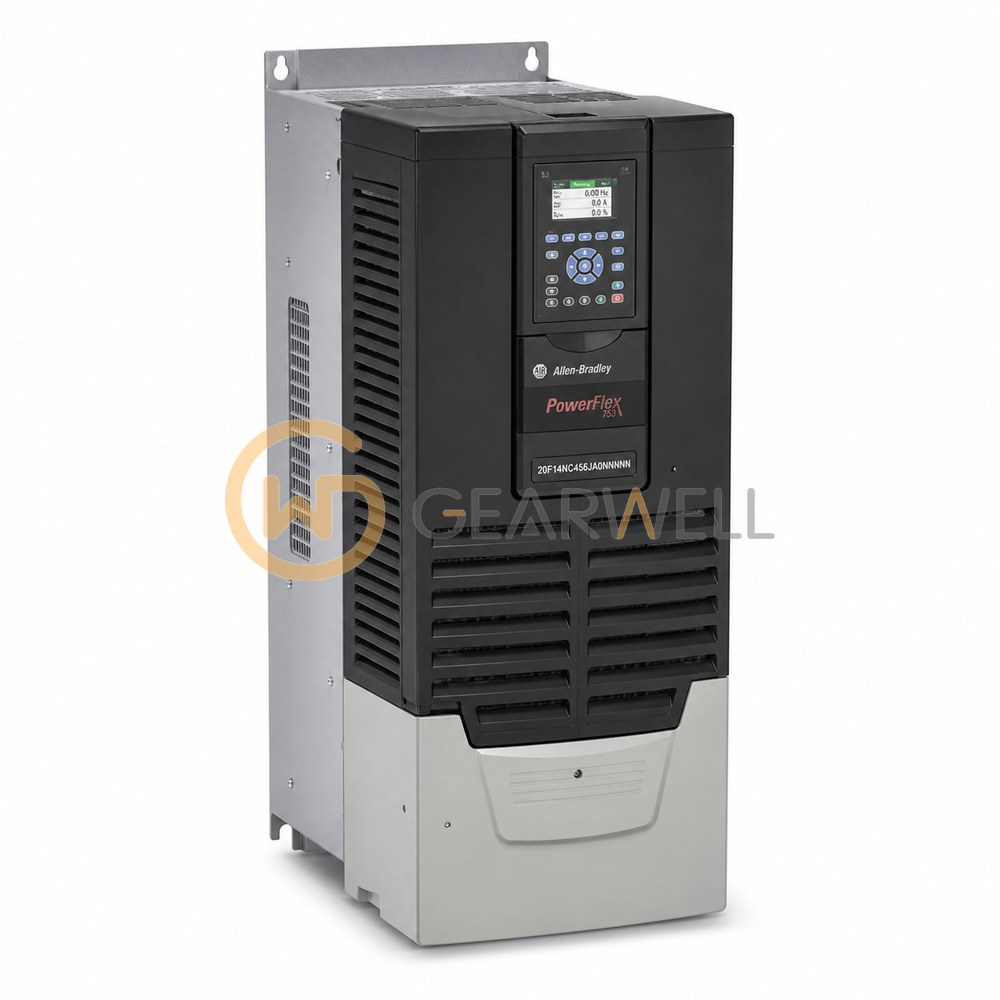

Allen-Bradley 20F14NC456JA0NNNNN PowerFlex 753 540 V DC 250 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC456JA0NNNNN
- GEARWELL SKU
- GWP-000001449
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 7
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active
- Rated motor output
- 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC456JA0NNNNN PowerFlex 753 540 V DC 250 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC456JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 7 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active |
| Rated motor output | 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty |
| Nominal input voltage | 540 V DC nominal |
| Configuration summary | PowerFlex 753; 540 V DC nominal; 456 A continuous, normal duty; 250 kW normal duty; 200 kW heavy duty; frame 7; IP00, NEMA/UL Open Type; Internal braking transistor fitted; braking resistor not included. |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
