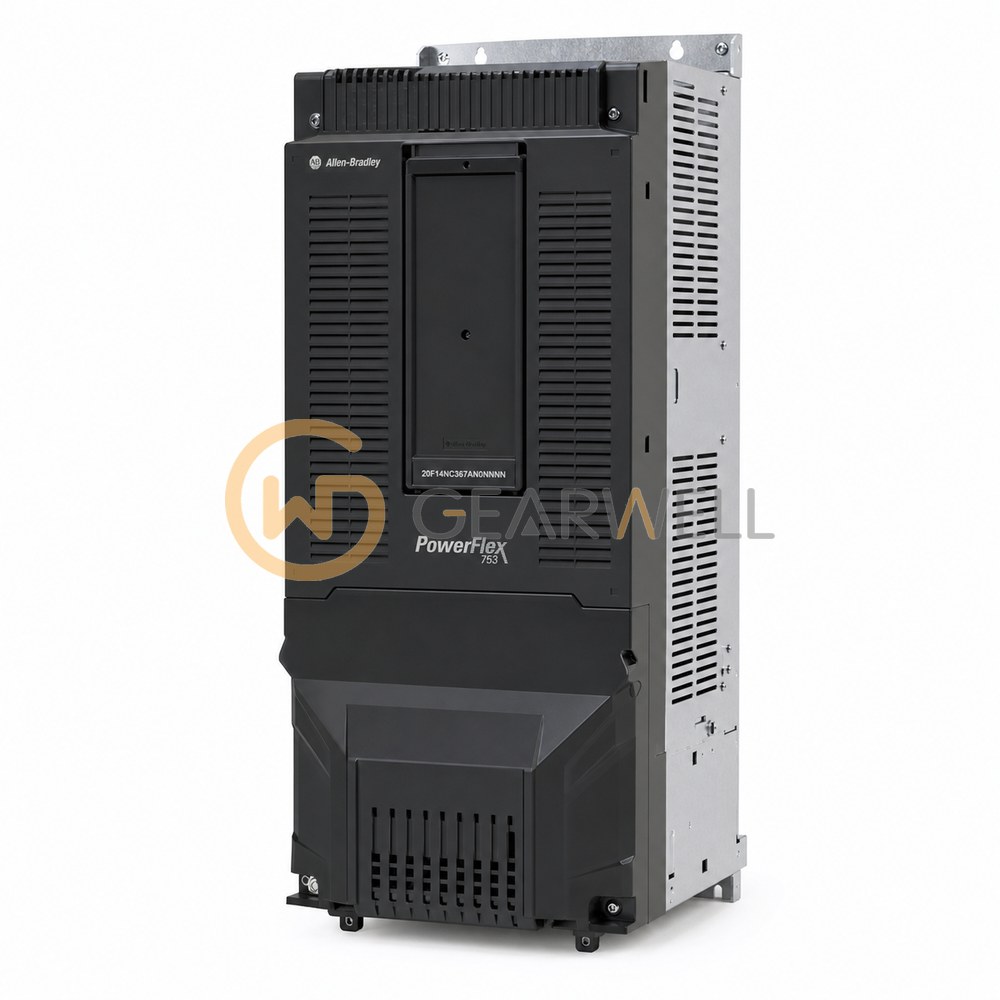

Allen-Bradley 20F14NC367AN0NNNNN PowerFlex 753 540 V DC 200 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC367AN0NNNNN
- GEARWELL SKU
- GWP-000001406
- Category
- Variable Frequency Drives
Key specifications
- Configured enclosure
- IP00, NEMA/UL Open Type
- Drive frame
- 7
- Input configuration
- Common DC bus input with precharge
- Product type
- Variable-frequency AC motor drive
- Nominal input voltage
- 540 V DC nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC367AN0NNNNN PowerFlex 753 540 V DC 200 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC367AN0NNNNN |
| Category | Variable Frequency Drives |
| Configured enclosure | IP00, NEMA/UL Open Type |
| Drive frame | 7 |
| Input configuration | Common DC bus input with precharge |
| Product type | Variable-frequency AC motor drive |
| Nominal input voltage | 540 V DC nominal |
| Rated motor output | 367 A continuous, normal duty; 200 kW normal duty; 160 kW heavy duty |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Output frequency | 0–325 Hz at 2 kHz carrier frequency; 0–590 Hz at 4 kHz carrier frequency |
| Normal-duty motor power | 200 kW, normal duty |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
