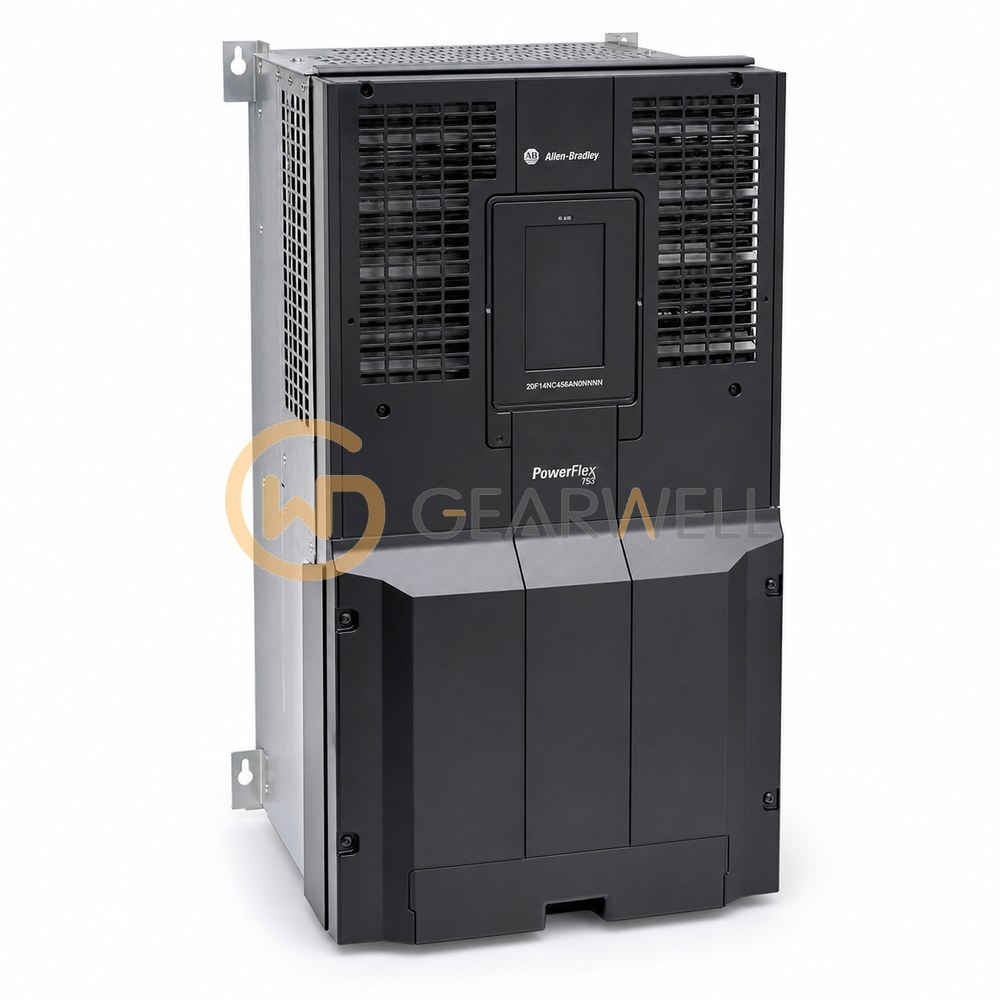

Allen-Bradley 20F14NC456AN0NNNNN PowerFlex 753 540 V DC 250 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC456AN0NNNNN
- GEARWELL SKU
- GWP-000003760
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 200 kW, heavy duty
- Normal-duty motor power
- 250 kW, normal duty
- Normal-duty output current
- 456 A continuous, normal duty
- Nominal input voltage
- 540 V DC nominal
- Input configuration
- Common DC bus input with precharge
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC456AN0NNNNN PowerFlex 753 540 V DC 250 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC456AN0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 200 kW, heavy duty |
| Normal-duty motor power | 250 kW, normal duty |
| Normal-duty output current | 456 A continuous, normal duty |
| Nominal input voltage | 540 V DC nominal |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 7 |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
