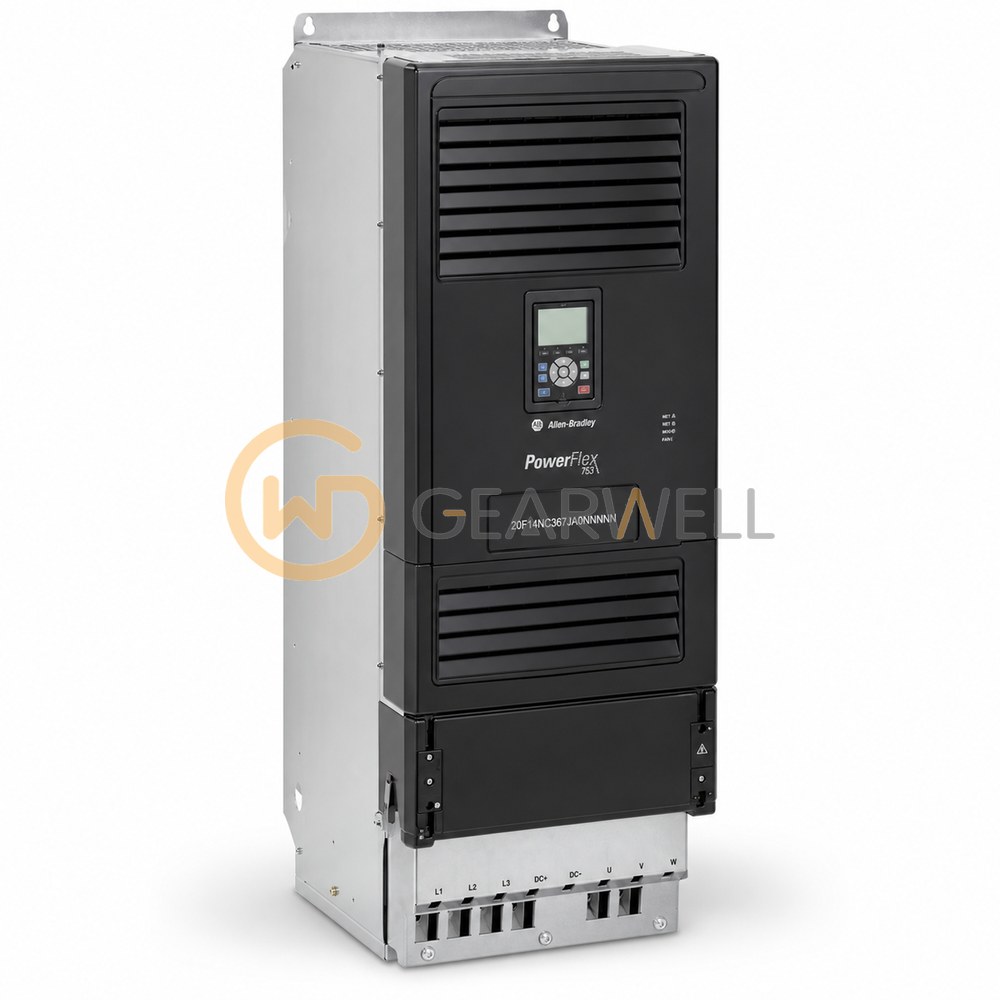

Allen-Bradley 20F14NC367JA0NNNNN PowerFlex 753 540 V DC 200 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC367JA0NNNNN
- GEARWELL SKU
- GWP-000003456
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 160 kW, heavy duty
- Normal-duty motor power
- 200 kW, normal duty
- Normal-duty output current
- 367 A continuous, normal duty
- Nominal input voltage
- 540 V DC nominal
- Drive family
- PowerFlex 753
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC367JA0NNNNN PowerFlex 753 540 V DC 200 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC367JA0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 160 kW, heavy duty |
| Normal-duty motor power | 200 kW, normal duty |
| Normal-duty output current | 367 A continuous, normal duty |
| Nominal input voltage | 540 V DC nominal |
| Drive family | PowerFlex 753 |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 7 |
| Operator interface | No factory-fitted HIM |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
