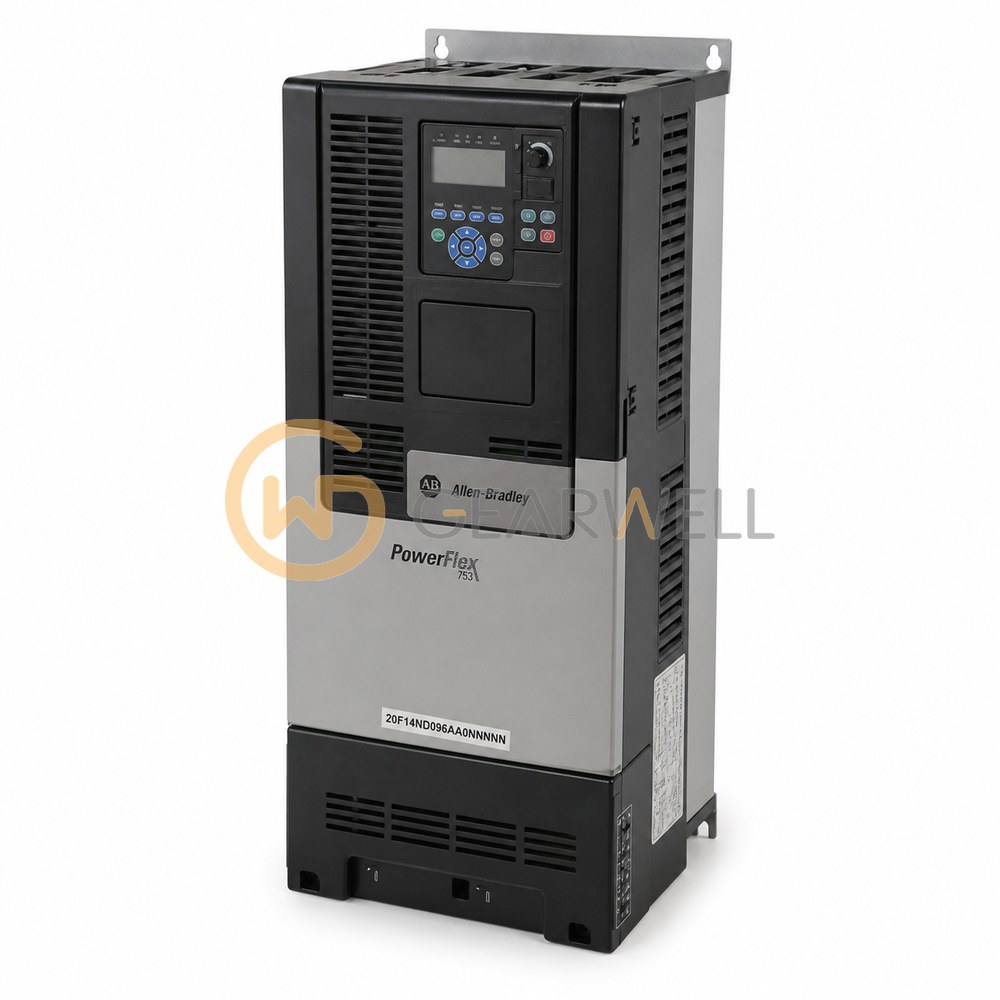

Allen-Bradley 20F14ND096AA0NNNNN PowerFlex 753 650 V DC 75 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14ND096AA0NNNNN
- GEARWELL SKU
- GWP-000001555
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 753
- Drive frame
- 5
- Product type
- Variable-frequency AC motor drive
- Braking hardware
- Internal braking transistor fitted; braking resistor not included
- Manufacturer lifecycle status
- discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14ND096AA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 5, built as an IP20, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 96 A and 75 Hp for normal duty and 77 A and 60 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14ND096AA0NNNNN PowerFlex 753 650 V DC 75 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14ND096AA0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 753 |
| Drive frame | 5 |
| Product type | Variable-frequency AC motor drive |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 96 A continuous, normal duty; 75 hp normal duty; 60 hp heavy duty |
| Nominal input voltage | 650 V DC nominal |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
