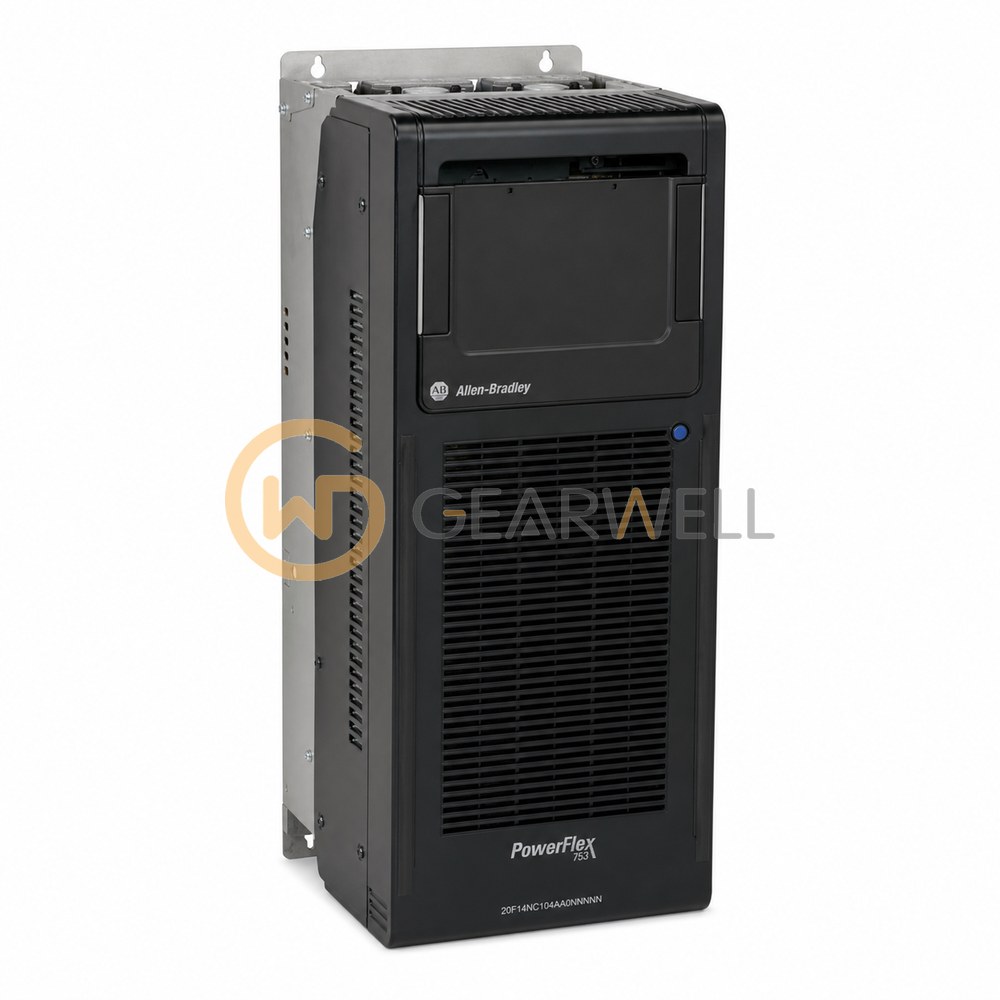

Allen-Bradley 20F14NC104AA0NNNNN PowerFlex 753 540 V DC 55 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC104AA0NNNNN
- GEARWELL SKU
- GWP-000003066
- Category
- Variable Frequency Drives
Key specifications
- Configured enclosure
- IP20, NEMA/UL Open Type
- Drive frame
- 5
- Input configuration
- Common DC bus input with precharge
- Product type
- Variable-frequency AC motor drive
- Nominal input voltage
- 540 V DC nominal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14NC104AA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 5, built as an IP20, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 104 A and 55 kW for normal duty and 85 A and 45 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14NC104AA0NNNNN PowerFlex 753 540 V DC 55 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC104AA0NNNNN |
| Category | Variable Frequency Drives |
| Configured enclosure | IP20, NEMA/UL Open Type |
| Drive frame | 5 |
| Input configuration | Common DC bus input with precharge |
| Product type | Variable-frequency AC motor drive |
| Nominal input voltage | 540 V DC nominal |
| Rated motor output | 104 A continuous, normal duty; 55 kW normal duty; 45 kW heavy duty |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Output frequency | 0–325 Hz at 2 kHz carrier frequency; 0–590 Hz at 4 kHz carrier frequency |
| Normal-duty motor power | 55 kW, normal duty |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
