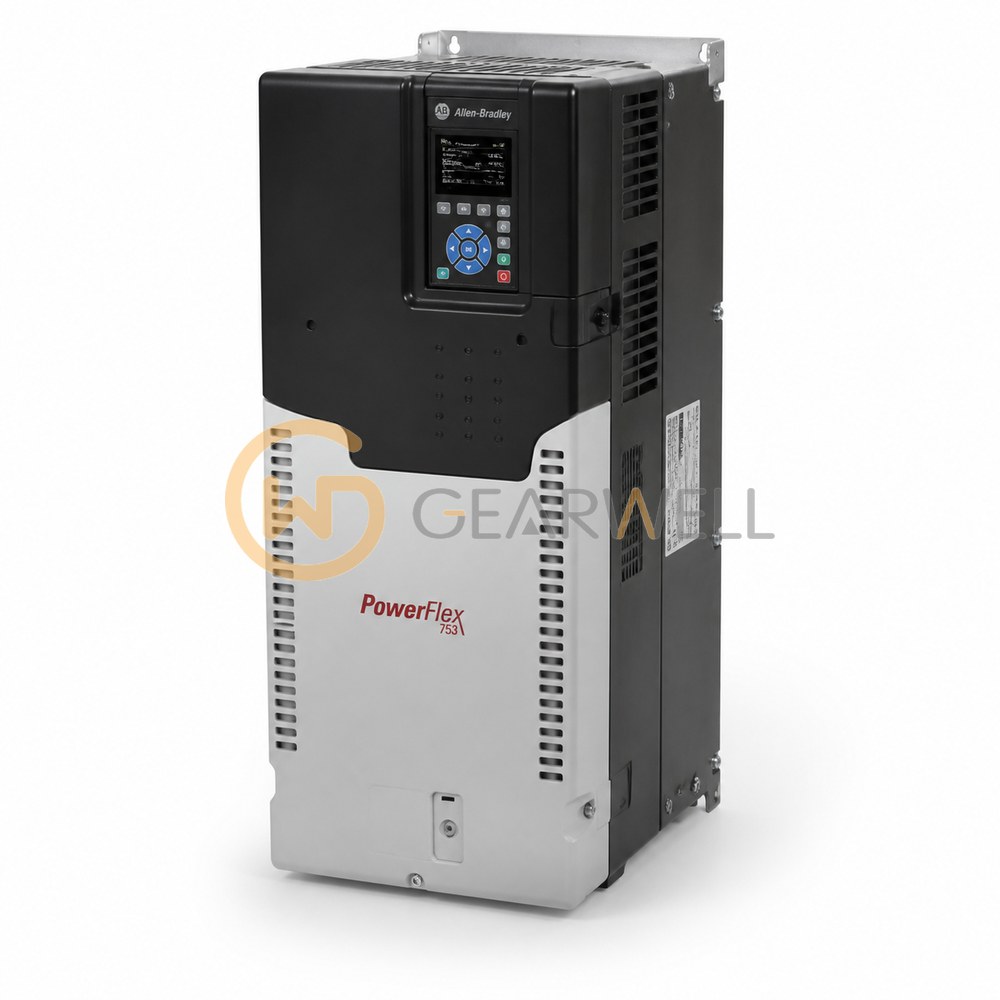

Allen-Bradley 20F11ND077JA0NNNNN PowerFlex 753 480 V AC 60 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20F11ND077JA0NNNNN
- GEARWELL SKU
- GWP-000002968
- Category
- Variable Frequency Drives
Key specifications
- Drive frame
- 5
- Product type
- Variable-frequency AC motor drive
- Braking hardware
- Internal braking transistor fitted; braking resistor not included
- Manufacturer lifecycle status
- active
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F11ND077JA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 5, built as an IP20, NEMA/UL Type Open wall-mount chassis with AC input with precharge and DC terminals. Rockwell rates it at 77 A and 60 Hp for normal duty and 65 A and 50 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F11ND077JA0NNNNN PowerFlex 753 480 V AC 60 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F11ND077JA0NNNNN |
| Category | Variable Frequency Drives |
| Drive frame | 5 |
| Product type | Variable-frequency AC motor drive |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Manufacturer lifecycle status | active |
| Operator interface | No factory-fitted HIM |
| Rated motor output | 77 A continuous, normal duty; 60 hp normal duty; 50 hp heavy duty |
| Nominal input voltage | 480 V AC, three-phase |
| Configuration summary | PowerFlex 753; 480 V AC, three-phase; 77 A continuous, normal duty; 60 hp normal duty; 50 hp heavy duty; frame 5; IP20, NEMA/UL Open Type; Internal braking transistor fitted; braking resistor not included. |
| Configured enclosure | IP20, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
