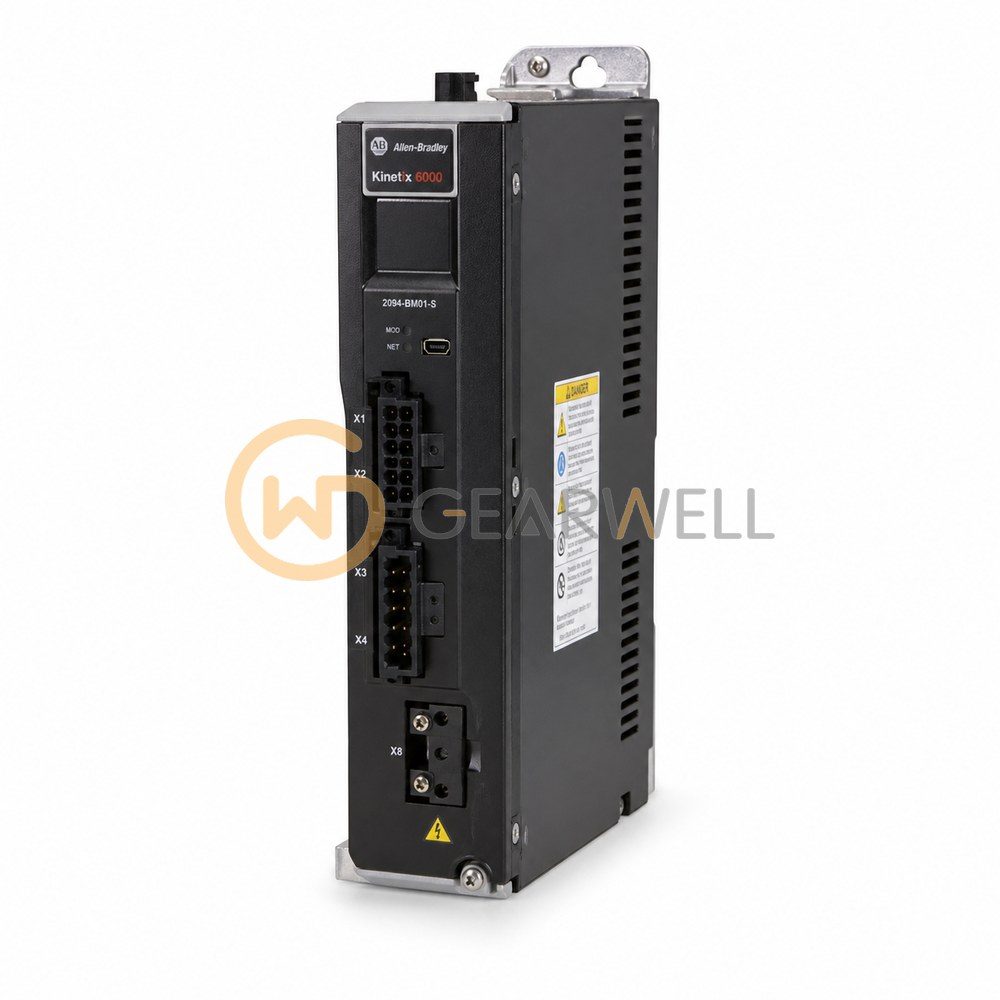

Allen-Bradley 2094-BM01-S Kinetix 6000 3.9 kW Axis Module
- Brand
- Allen-Bradley
- Model
- 2094BM01S
- GEARWELL SKU
- GWP-000000752
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 2.49 kg approximately
- Efficiency
- 98%
- Capacitance
- 150 µF
- Product type
- Kinetix 6000 axis module
- PWM frequency
- 8 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BM01-S is a Kinetix 6000 axis module from Rockwell's Kinetix servo drive family. It is a 400V-class inverter that runs from the 650V DC bus of the power rail, rated 6.1 A rms continuous and 9.2 A rms peak (series A) or 15.3 A rms in peak-enhanced mode (series B or later) output current, with 3.9 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BM01-S Kinetix 6000 3.9 kW Axis Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094BM01S |
| Category | Industrial Automation Parts |
| Weight | 2.49 kg approximately |
| Efficiency | 98% |
| Capacitance | 150 µF |
| Product type | Kinetix 6000 axis module |
| PWM frequency | 8 kHz |
| Voltage class | 400 V class |
| Safe Torque Off | Included |
| Capacitive energy absorption | 19 J |
| Power dissipation | 126 W at 100% rated power output |
| Nominal DC input voltage | 650 V DC |
| Continuous output power | 3.9 kW |
| Continuous output current | 6.1 A rms; derate below 5 Hz electrical output frequency |
