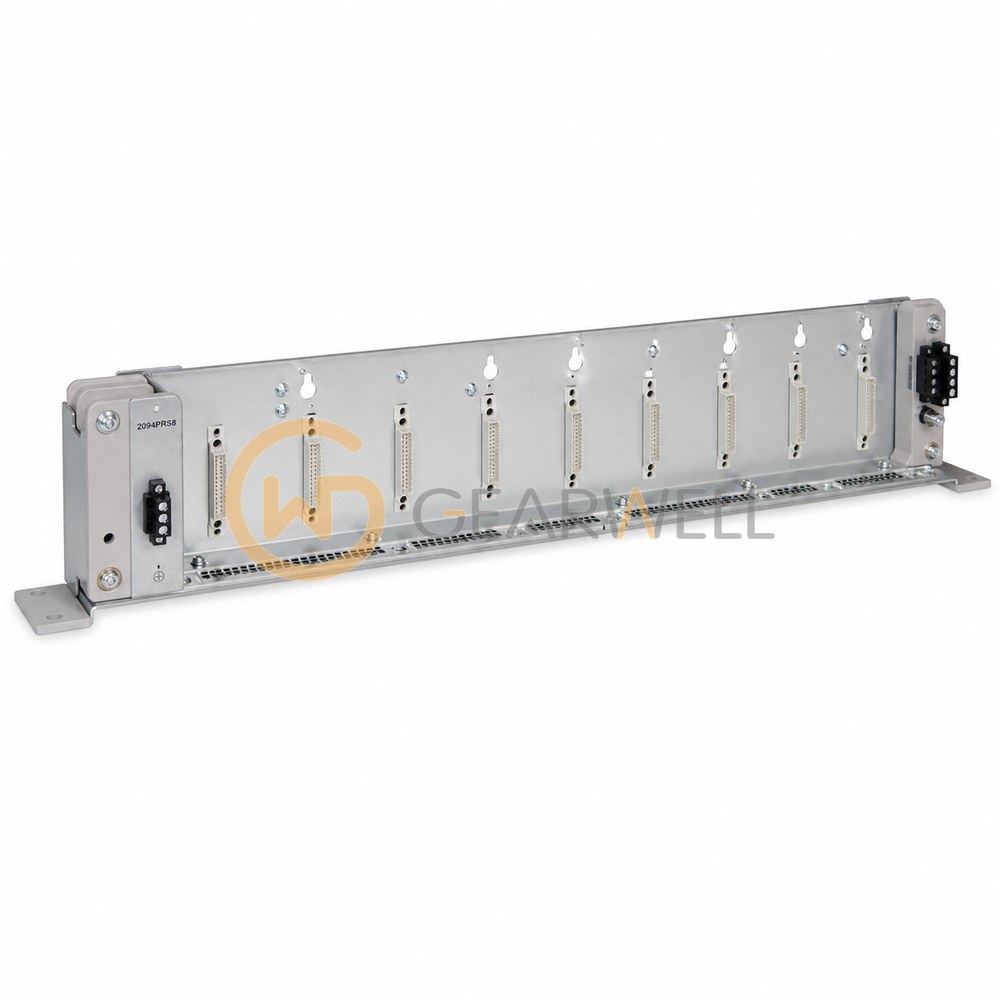

Allen-Bradley 2094-PRS8 Kinetix 8-Axis Slim Power Rail
- Brand
- Allen-Bradley
- Model
- 2094PRS8
- GEARWELL SKU
- GWP-000002391
- Category
- Industrial Automation Parts
Key specifications
- Height
- 231 mm
- Weight
- 4.43 kg approximately
- Product type
- Slim 8-axis power rail
- Slot capacity
- 8 inverter slots plus 1 converter slot
- Voltage class
- 200 V class and 400 V class
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-PRS8 is a Bulletin 2094 power rail from Rockwell's Bulletin 2094 accessory range. It is the 8 axis Bulletin 2094 slim power rail for Kinetix 6000, Kinetix 6000M, Kinetix 6200 and Kinetix 6500 drives: one IAM module with up to 7 additional drive modules (axis, shunt or slot-filler modules). The leftmost slot is the converter slot, used only by the IAM module; the other 8 are inverter slots. It works with all 200V-class and 400V-class drive modules and weighs 4.43 kg.
Technical reference
| Product name | Allen-Bradley 2094-PRS8 Kinetix 8-Axis Slim Power Rail |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094PRS8 |
| Category | Industrial Automation Parts |
| Height | 231 mm |
| Weight | 4.43 kg approximately |
| Product type | Slim 8-axis power rail |
| Slot capacity | 8 inverter slots plus 1 converter slot |
| Voltage class | 200 V class and 400 V class |
| Overall length | 632.5 mm |
| Module capacity | IAM plus up to 7 additional single-width modules; double-width modules consume 2 inverter slots |
| Mounting span B | 551.2 mm |
| Compatible modules | Bulletin 2094 IAM, AM, shunt and slot-filler modules |
| Compatible drive families | Kinetix 6000, 6000M, 6200 and 6500 |
| Unused-slot requirement | Install a 2094-PRF in every unused slot |
