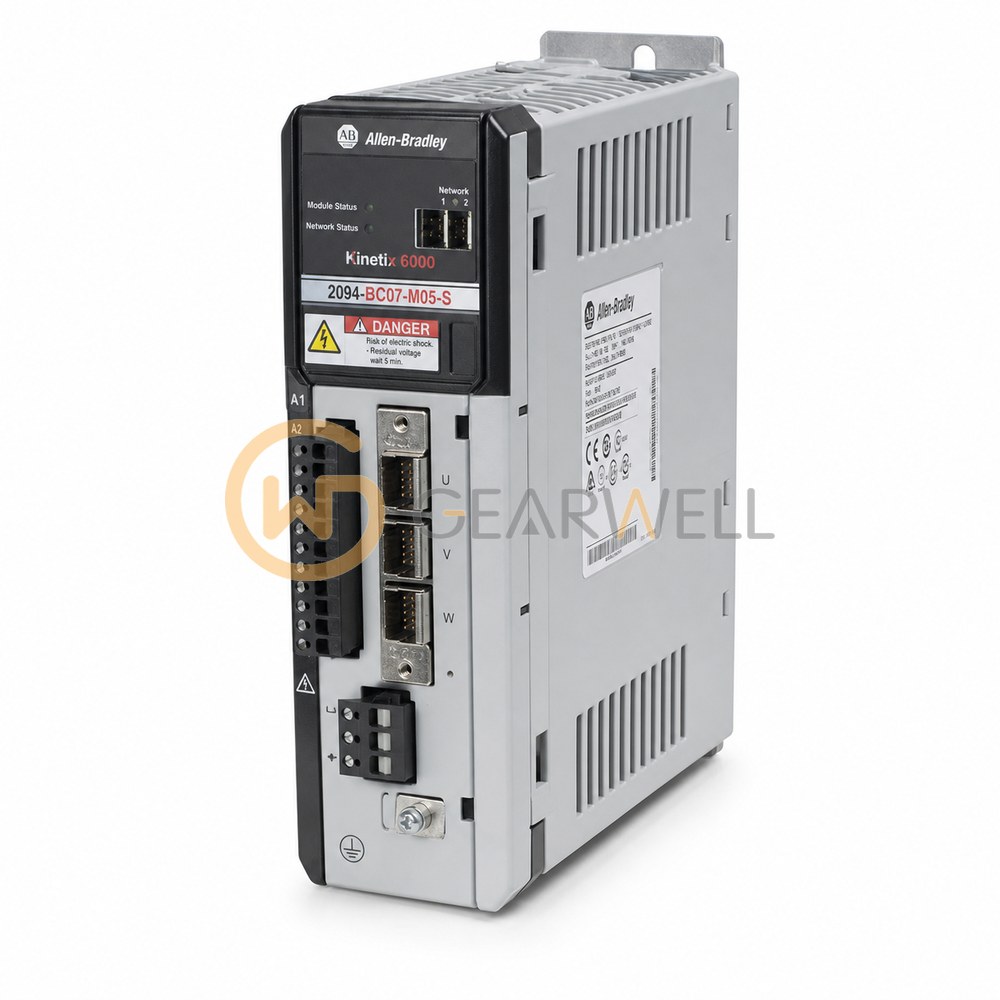

Allen-Bradley 2094-BC07-M05-S Kinetix 6000 400 V Integrated Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-BC07-M05-S
- GEARWELL SKU
- GWP-000003054
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 6000 integrated axis module
- Motion communication
- Sercos fiber-optic interface
- Control-power input
- 95-264 V rms, single-phase
- Drive voltage class
- 400 V class
- AC input frequency
- 47-63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BC07-M05-S is a Kinetix 6000 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 324…528V rms three-phase input (360…480V nom), 71.0 A nominal input current, with 45 kW continuous power output to the 650V DC bus, and an inverter rated 34.6 A rms continuous and 69.2 A rms peak output current (series B or later, peak-enhanced mode) with 22.0 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BC07-M05-S Kinetix 6000 400 V Integrated Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BC07-M05-S |
| Category | Servo Systems |
| Product type | Kinetix 6000 integrated axis module |
| Motion communication | Sercos fiber-optic interface |
| Control-power input | 95-264 V rms, single-phase |
| Drive voltage class | 400 V class |
| AC input frequency | 47-63 Hz |
| Continuous inverter current, sine zero-to-peak | 48.9 A; high-speed rating, observe low-speed derating |
| Safe torque-off function | Included; requires the specified safety wiring and validated application |
| AC input voltage | 324-528 V rms, three-phase |
| Continuous converter output power to DC bus | 45 kW |
| Nominal DC bus voltage | 650 V DC |
| Nominal continuous inverter output power | 22.0 kW nominal; observe low-speed current derating |
| Continuous inverter output current | 34.6 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
