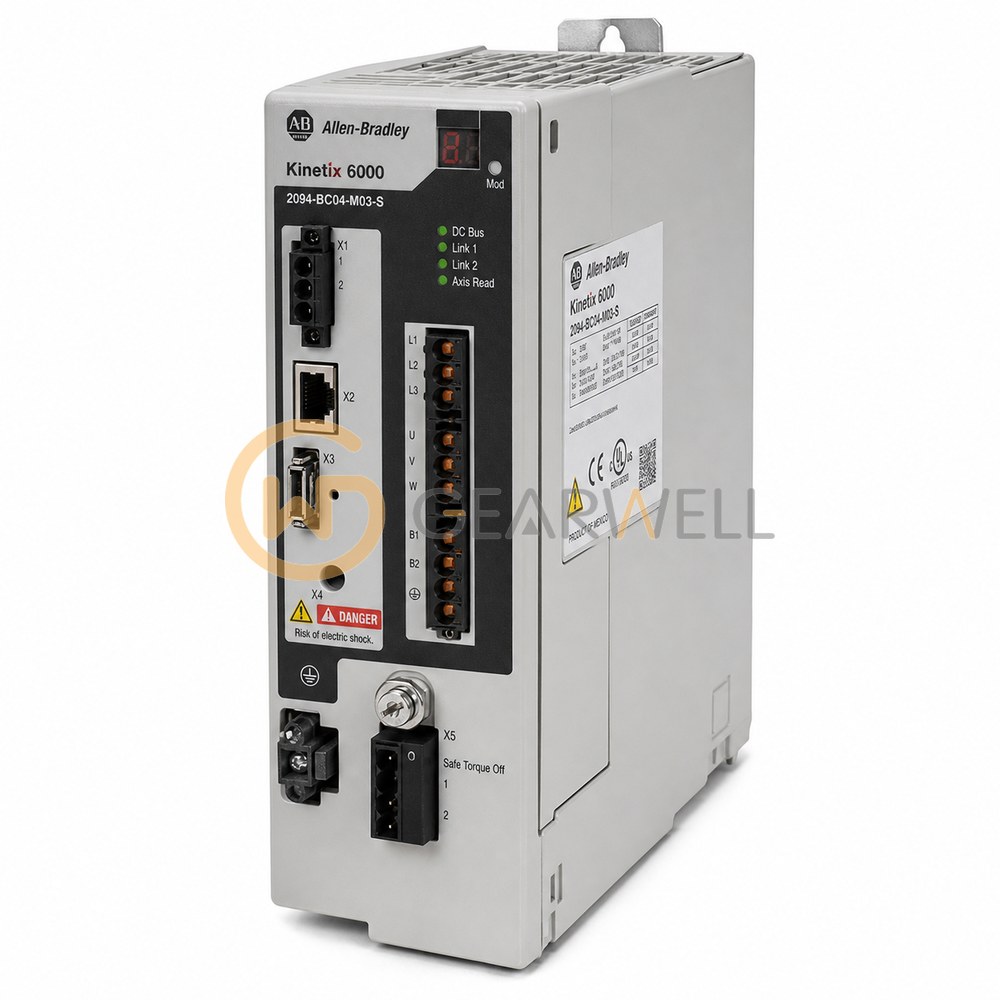

Allen-Bradley 2094-BC04-M03-S Kinetix 6000 400 V Integrated Axis Module with STO
- Brand
- Allen-Bradley
- Model
- 2094-BC04-M03-S
- GEARWELL SKU
- GWP-000000464
- Category
- Servo Systems
Key specifications
- Product type
- Kinetix 6000 integrated axis module
- Catalog number
- 2094-BC04-M03-S
- AC input voltage
- 324-528 V rms, three-phase
- Manufacturer lifecycle status (2026-10-09)
- Discontinued
- Nominal DC bus voltage
- 650 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2094-BC04-M03-S is a Kinetix 6000 integrated axis module from Rockwell's Kinetix servo drive family. It combines a converter for 324…528V rms three-phase input (360…480V nom), 44.0 A nominal input current, with 27.6 kW continuous power output to the 650V DC bus, and an inverter rated 21.2 A rms continuous and 53.0 A rms peak output current (series B or later, peak-enhanced mode) with 13.5 kW nominal continuous power out. Kinetix 6000 multi-axis servo drives provide Integrated Motion through the Sercos interface and are compatible with Kinetix 6200 drives; target applications include packaging, material handling, converting and assembly. The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2094-BC04-M03-S Kinetix 6000 400 V Integrated Axis Module with STO |
|---|---|
| Brand | Allen-Bradley |
| Model | 2094-BC04-M03-S |
| Category | Servo Systems |
| Product type | Kinetix 6000 integrated axis module |
| Catalog number | 2094-BC04-M03-S |
| AC input voltage | 324-528 V rms, three-phase |
| Manufacturer lifecycle status (2026-10-09) | Discontinued |
| Nominal DC bus voltage | 650 V DC |
| Product description | 400 V-class integrated module; 27.6 kW converter, 13.5 kW nominal inverter, 21.2 A rms continuous; safe torque-off. Continuous current is a high-speed rating; derating applies at constant velocity below 5 Hz electrical output frequency. |
| Continuous converter output power to DC bus | 27.6 kW |
| Nominal continuous inverter output power | 13.5 kW nominal; observe low-speed current derating |
| Continuous inverter output current | 21.2 A rms; high-speed rating, derate below 5 Hz electrical output frequency |
