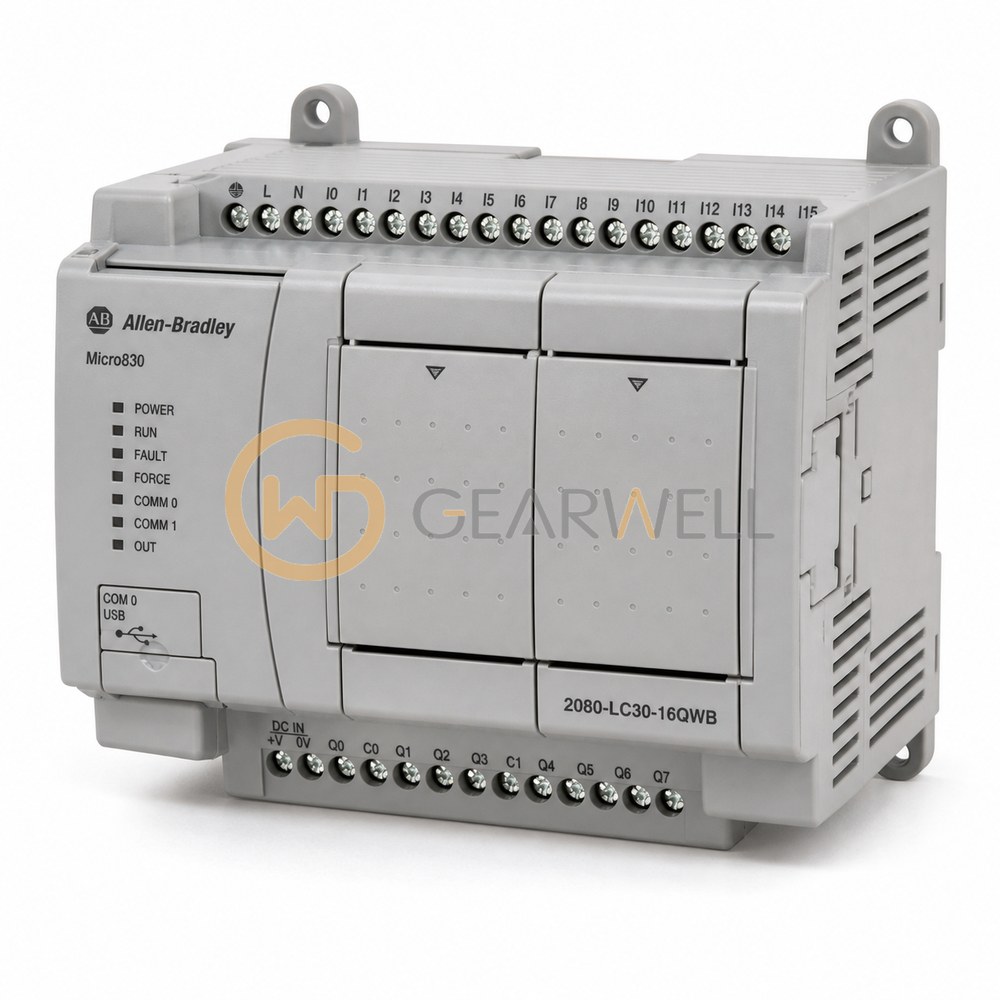

Allen-Bradley 2080-LC30-16QWB Micro830 16-Point PLC, 10 Inputs, 6 Relay Outputs
- Brand
- Allen-Bradley
- Model
- 2080-LC30-16QWB
- GEARWELL SKU
- GWP-000003804
- Category
- PLCs & I/O
Key specifications
- I/O count
- 16
- Dimensions (H x W x D)
- 90 x 100 x 80 mm; excluding mounting feet and DIN rail latches.
- DC input voltage category
- 24 V DC sink/source.
- Output type
- Relay
- Controller power supply
- 20.4…26.4 V DC, Class 2.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-LC30-16QWB is a Micro830 16-point controller with 10 inputs for 24V DC/V AC and 6 relay outputs, with 2 embedded high-speed counters. It has a USB programming port, an RS-232/RS-485 non-isolated combo serial port and 2 plug-in slots, with about 4K program steps and 8 KB of data. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-LC30-16QWB Micro830 16-Point PLC, 10 Inputs, 6 Relay Outputs |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-LC30-16QWB |
| Category | PLCs & I/O |
| I/O count | 16 |
| Dimensions (H x W x D) | 90 x 100 x 80 mm; excluding mounting feet and DIN rail latches. |
| DC input voltage category | 24 V DC sink/source. |
| Output type | Relay |
| Controller power supply | 20.4…26.4 V DC, Class 2. |
| Product type | Micro830 programmable controller |
| Digital inputs | 10 |
| Enclosure type | Open style |
| Digital outputs | 6 |
| Input on-state voltage range | Standard inputs: 10…26.4 V DC; high-speed inputs: 16.8…26.4 V DC. |
| Relative humidity | 5…95%, noncondensing. |
| Operating temperature | -20…65 °C. |
| Nonoperating temperature | -40…85 °C. |
