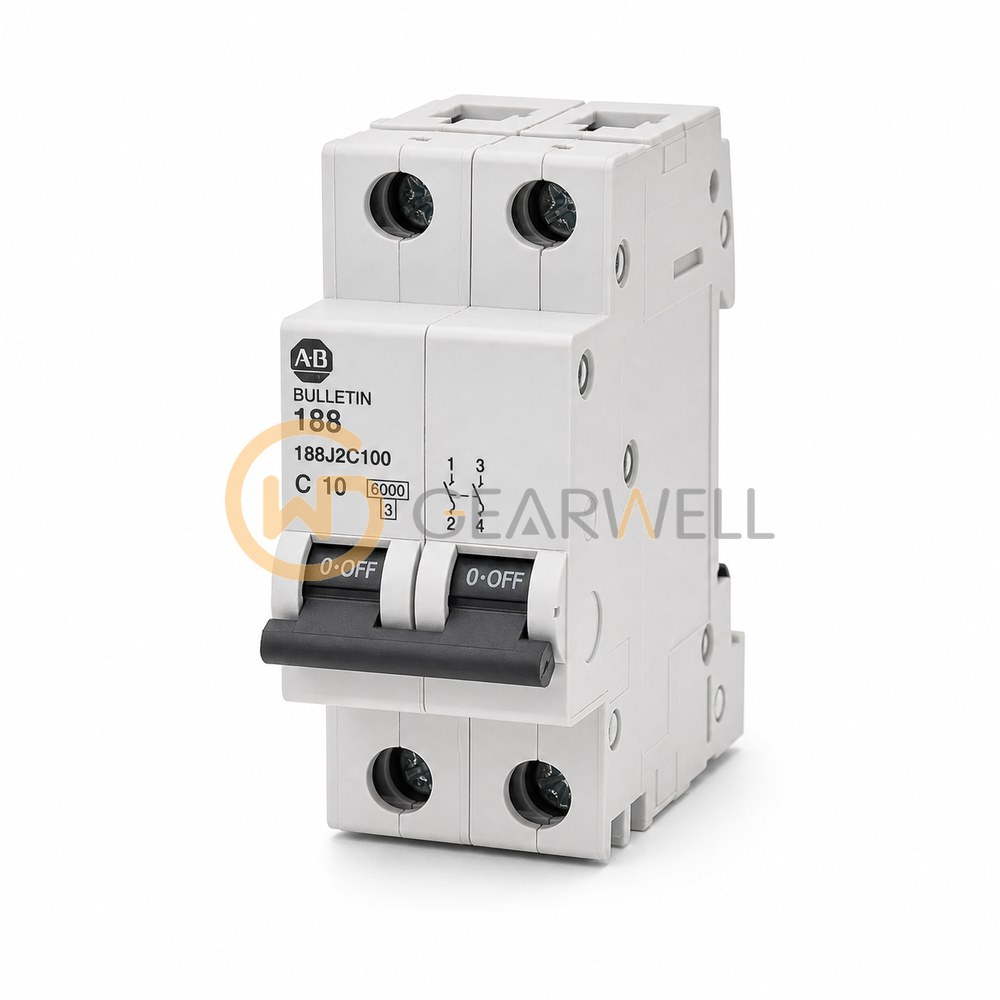

Allen-Bradley 188-J2C100 Miniature Circuit Breaker, 2-Pole, 10 A, C Curve

Brand: Allen-Bradley
Model: 188J2C100
GEARWELL SKU: GWP-000002536
Category: Circuit Protection

Key specifications

Number of poles: 2
Mounting: 35 mm DIN rail (EN 60715), with fast clip
Trip characteristic: C curve; AC magnetic trip 5–10 × rated current
Product type: Miniature circuit breaker
Rated current: 10 A; 30 °C reference temperature, with temperature and adjacent-device derating as applicable

Circuit breakers and load switches catalog number list (PDF, 94 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 188-J2C100 is a Bulletin 188 regional circuit breaker (188-J, 10 kA), 2-pole, trip curve C, rated 10 A. Per IEC/EN 60898-1 it is rated 400V AC, it mounts on a 35 mm DIN rail and is rated for -25…+55 °C ambient.

Technical reference

Product name	Allen-Bradley 188-J2C100 Miniature Circuit Breaker, 2-Pole, 10 A, C Curve
Brand	Allen-Bradley
Model	188J2C100
Category	Circuit Protection
Number of poles	2
Mounting	35 mm DIN rail (EN 60715), with fast clip
Trip characteristic	C curve; AC magnetic trip 5–10 × rated current
Product type	Miniature circuit breaker
Rated current	10 A; 30 °C reference temperature, with temperature and adjacent-device derating as applicable
Rated frequency	50/60 Hz
Manufacturer catalog number	188-J2C100
Protection rating (EN 60529)	IP20; IP40 in an enclosure with cover
Manufacturer	Allen-Bradley
Rated short-circuit capacity Icn (IEC/EN 60898-1)	10 kA (188-J series)
Rated operational voltage (IEC/EN 60898-1)	400 V AC (2-pole)
