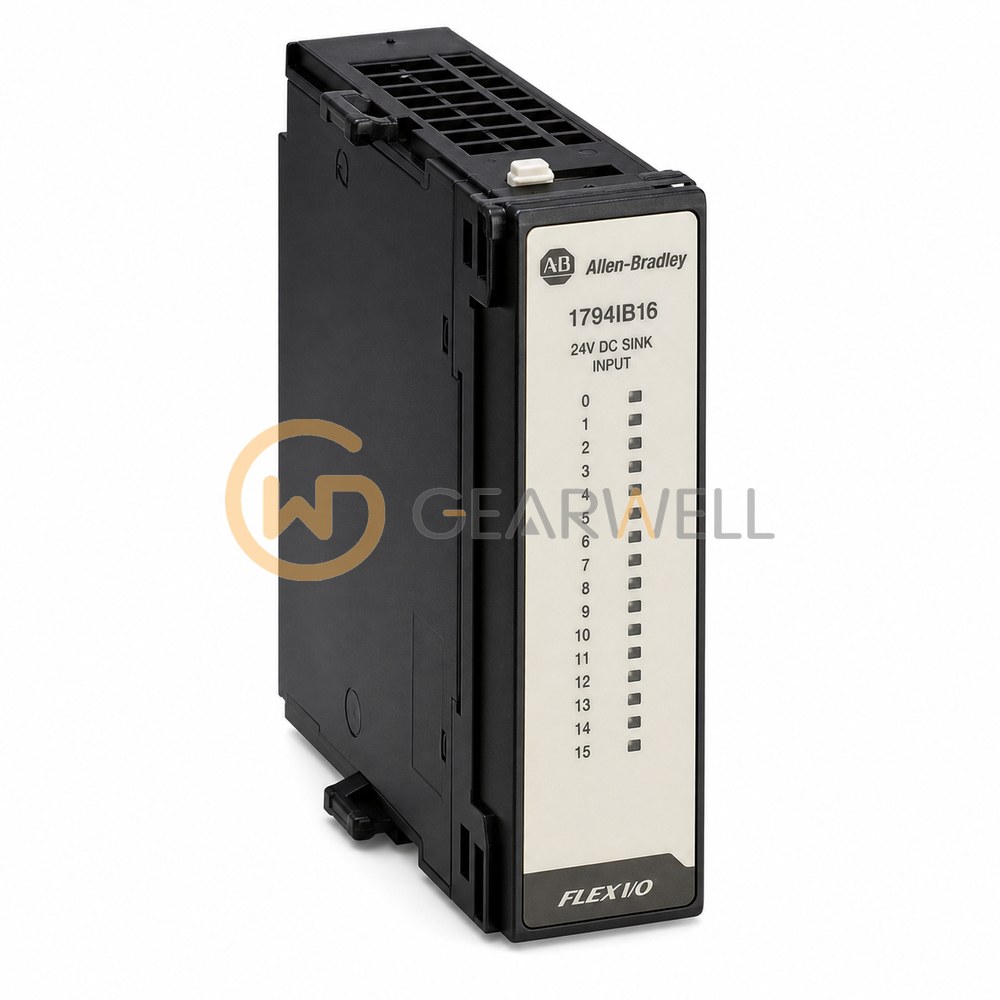

Allen-Bradley 1794-IB16 FLEX I/O 16-Point DC Sinking Input Module
- Brand
- Allen-Bradley
- Model
- 1794IB16
- GEARWELL SKU
- GWP-000002106
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 16-point DC digital input module
- On-state input current
- 2 mA minimum; 8 mA nominal; 12 mA maximum.
- FlexBus current
- 30 mA at 5 V DC
- Manufacturer lifecycle status
- Active Mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IB16 is a FLEX I/O digital input module with 16 sinking 24V DC inputs, an on-state input voltage of 10…31.2V DC and 8 mA nominal at 24V DC. It mounts on a 1794-TB3, 1794-TB3S, 1794-TB3K or 1794-TB3SK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IB16 FLEX I/O 16-Point DC Sinking Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794IB16 |
| Category | PLCs & I/O |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 16-point DC digital input module |
| On-state input current | 2 mA minimum; 8 mA nominal; 12 mA maximum. |
| FlexBus current | 30 mA at 5 V DC |
| Manufacturer lifecycle status | Active Mature |
| Input channel configuration | 16 current-sinking inputs; no isolation between individual channels. |
| Operating temperature | -20…55 °C |
| On-state input voltage | 10…31.2 V DC; 24 V DC nominal. Maximum 31.2 V DC through 37 °C in normal horizontal mounting, decreasing to 28.5 V DC at 55 °C; for other mounting positions, maximum 31.2 V DC through 32 °C, decreasing to 27.5 V DC at 55 °C. |
| Product description | FLEX I/O DC digital input module with 16 current-sinking inputs for 24 V DC systems. |
