Allen-Bradley 1794-OB16PXT FLEX I/O-XT 16-Point DC Output Module
- Brand
- Allen-Bradley
- Model
- 1794-OB16PXT
- GEARWELL SKU
- GWP-000004102
- Category
- PLCs & I/O
Key specifications
- Digital outputs
- 16 nonisolated sourcing outputs.
- Maximum output delay
- Off to on: 0.5 ms; on to off: 1.0 ms.
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O-XT sixteen-point DC output module
- On-state output voltage
- 24 V DC nominal; 10…31.2 V DC.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

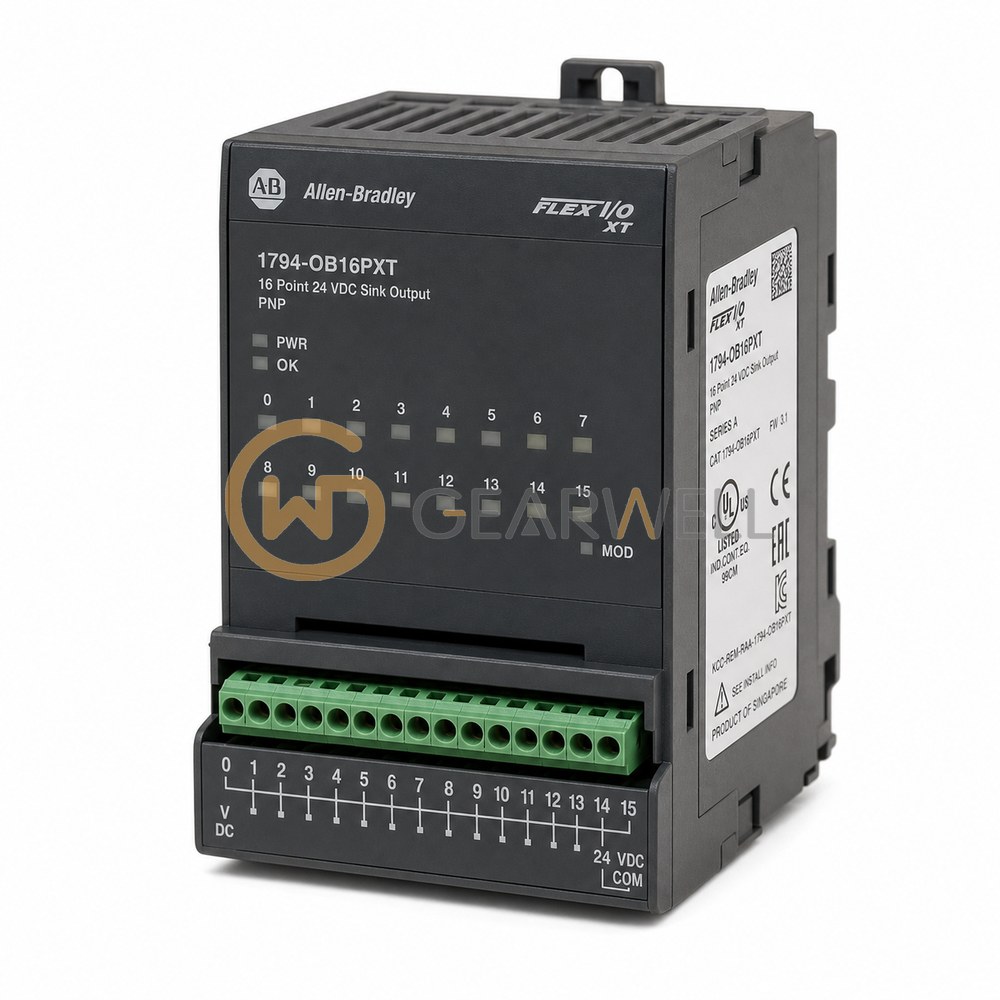

The Allen-Bradley 1794-OB16PXT is the extended temperature version of the 1794-OB16P FLEX I/O module, with 16 nonisolated, protected sourcing 24V DC outputs (10…31.2V DC), up to 8 A per module. It mounts on a 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, 1794-TB3K, 1794-TB3SK or 1794-TBNK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OB16PXT FLEX I/O-XT 16-Point DC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-OB16PXT |
| Category | PLCs & I/O |
| Digital outputs | 16 nonisolated sourcing outputs. |
| Maximum output delay | Off to on: 0.5 ms; on to off: 1.0 ms. |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O-XT sixteen-point DC output module |
| On-state output voltage | 24 V DC nominal; 10…31.2 V DC. |
| Compatible terminal bases | 1794-TB2, 1794-TB3 or 1794-TB3S. |
| Manufacturer lifecycle status | Active Mature |
| Output protection | Electronically protected outputs. |
| Operating temperature | -20…70 °C (-4…158 °F) |
| Product description | Sixteen 24 V DC sourcing outputs with electronic protection. |
| Output current limits | 0.5 A maximum per channel; 8 A maximum per module. |
