Allen-Bradley 1794-IRT8 FLEX I/O 8-Channel Thermocouple RTD Input Module
- Brand
- Allen-Bradley
- Model
- 1794-IRT8
- GEARWELL SKU
- GWP-000000445
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O thermocouple/RTD input module
- Input channels (Series B)
- 8 channels in two groups of four; no isolation between individual channels.
- Compatible terminal bases (Series B)
- 1794-TB3G, 1794-TB3GS or 1794-TB3GK.
- External supply (Series B)
- 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

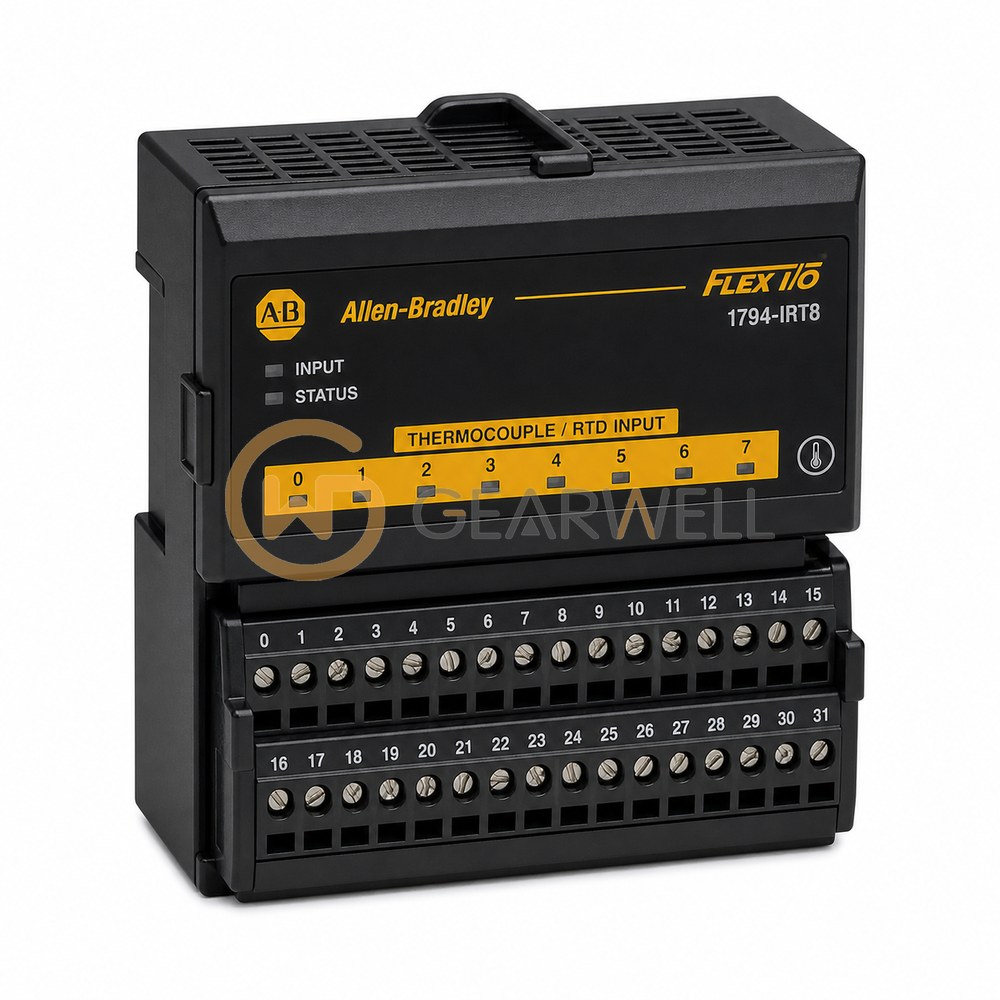

The Allen-Bradley 1794-IRT8 is a FLEX I/O thermocouple/RTD input module with 8 high-speed inputs for thermocouples (-40…+100 mV DC), 2-wire, 3-wire and 4-wire RTDs (0…325 mV DC) and a 0…500 Ω resistance range, with 14-bit resolution; a kit with 2 cold junction compensators is supplied. It draws 85 mA at 24V DC. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IRT8 FLEX I/O 8-Channel Thermocouple RTD Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-IRT8 |
| Category | PLCs & I/O |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O thermocouple/RTD input module |
| Input channels (Series B) | 8 channels in two groups of four; no isolation between individual channels. |
| Compatible terminal bases (Series B) | 1794-TB3G, 1794-TB3GS or 1794-TB3GK. |
| External supply (Series B) | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Input resolution (Series B) | 14 bits |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | -20…55 °C |
| Supported thermocouples (Series B) | B, E, J, K, TXK/XK(L), N, R, S and T. |
| Product description | Eight-channel thermocouple, RTD and millivolt input module. |
