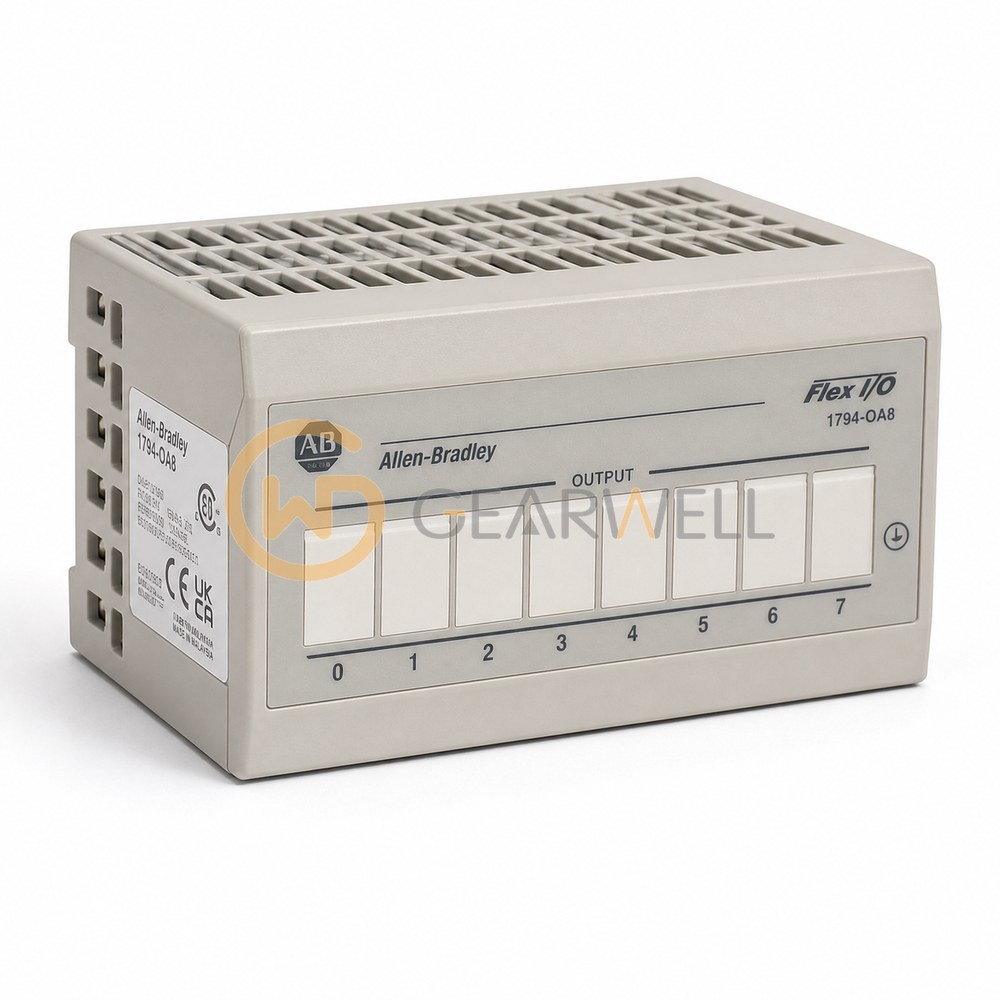

Allen-Bradley 1794-OA8 FLEX I/O 8-Point 120 V AC Output Module
- Brand
- Allen-Bradley
- Model
- 1794-OA8
- GEARWELL SKU
- GWP-000000330
- Category
- PLCs & I/O
Key specifications
- Nominal supply voltage
- 120 V AC nominal
- Product type
- FLEX I/O 8-point AC digital output module
- Output fusing
- Outputs are not fused. Fusing is recommended; provide external fusing or use the recommended 1794-TBNF terminal base.
- FlexBus current
- 80 mA at 5 V DC
- Manufacturer lifecycle status
- Active Mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OA8 is a FLEX I/O digital output module with 8 nonisolated 120V AC outputs (85…132V AC), up to 4.0 A per module. It mounts on a 1794-TBNF, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBN, 1794-TBKD, 1794-TB3K, 1794-TB3SK or 1794-TBNK terminal base; the 1794-TBNF fused base is shipped with fuses for this module. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OA8 FLEX I/O 8-Point 120 V AC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-OA8 |
| Category | PLCs & I/O |
| Nominal supply voltage | 120 V AC nominal |
| Product type | FLEX I/O 8-point AC digital output module |
| Output fusing | Outputs are not fused. Fusing is recommended; provide external fusing or use the recommended 1794-TBNF terminal base. |
| FlexBus current | 80 mA at 5 V DC |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | -20…55 °C |
| Product description | FLEX I/O AC digital output module with 8 nonisolated outputs, rated for 120 V AC nominal operation. |
| Output voltage range | 85…132 V AC; 120 V AC nominal |
| Output current rating | 4 A per module (8 outputs at 0.5 A); maximum 0.5 A per output at 55 °C. Higher per-output ratings require the temperature and loading conditions in the installation instructions. |
