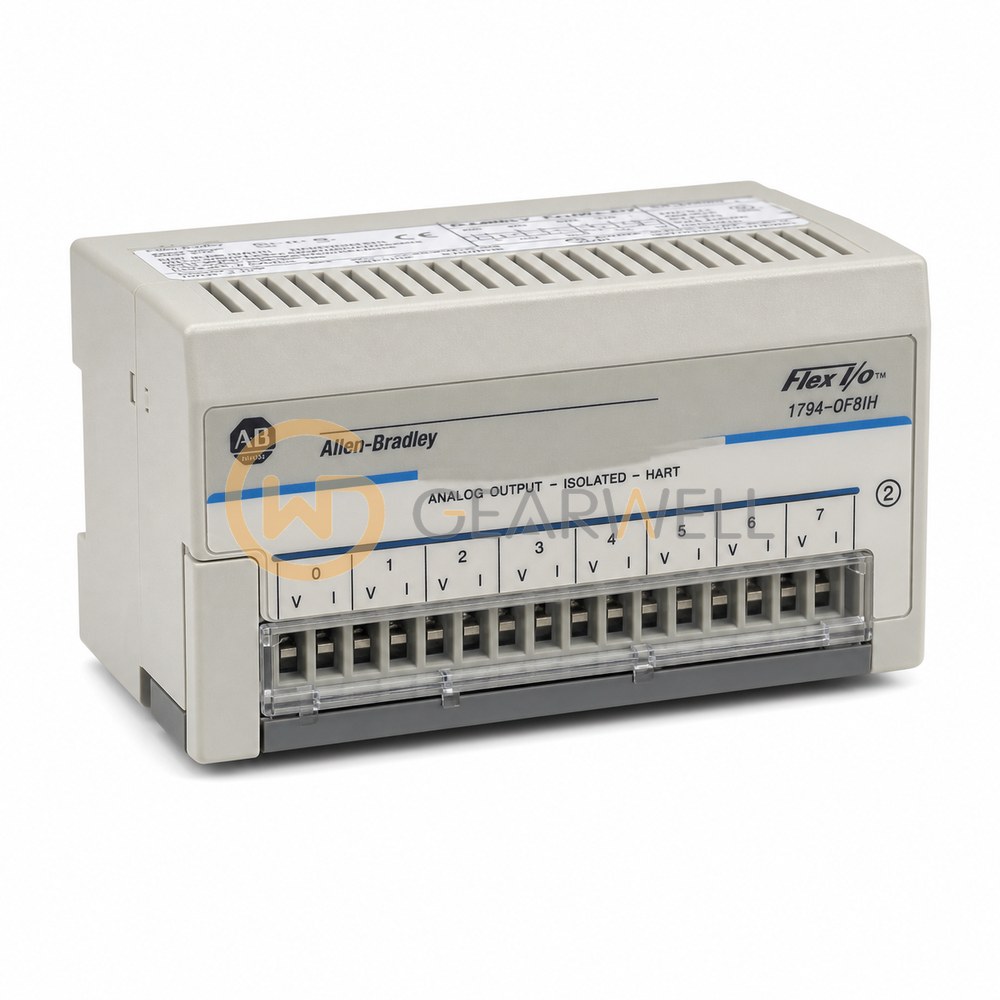

Allen-Bradley 1794-OF8IH FLEX I/O 8-Channel HART Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1794-OF8IH
- GEARWELL SKU
- GWP-000000525
- Category
- PLCs & I/O
Key specifications
- Output channels
- 8 single-ended, isolated outputs.
- Product type
- FLEX I/O isolated HART analog output module
- Configurable output ranges
- 0…20 mA or 4…20 mA.
- Recommended terminal bases
- 1794-TB3 or 1794-TB3S.
- External supply
- 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OF8IH is a FLEX I/O HART enabled analog output module with 8 isolated current outputs for 4…20 mA or 0…20 mA and 16-bit resolution (unipolar). It draws 450 mA at 24V DC and is rated for 0…55 °C (32…131 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OF8IH FLEX I/O 8-Channel HART Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-OF8IH |
| Category | PLCs & I/O |
| Output channels | 8 single-ended, isolated outputs. |
| Product type | FLEX I/O isolated HART analog output module |
| Configurable output ranges | 0…20 mA or 4…20 mA. |
| Recommended terminal bases | 1794-TB3 or 1794-TB3S. |
| External supply | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Manufacturer lifecycle status | Active Mature |
| Output resolution | 16 bits, unipolar. |
| Temperature Rating | 0…55 °C (32…131 °F) |
| Required adapter firmware | 1794-ACNR15 revision 5.001 or later, or 1794-AENT revision 4.002 or later. |
| Product description | Eight isolated current outputs with HART 5 support. |
