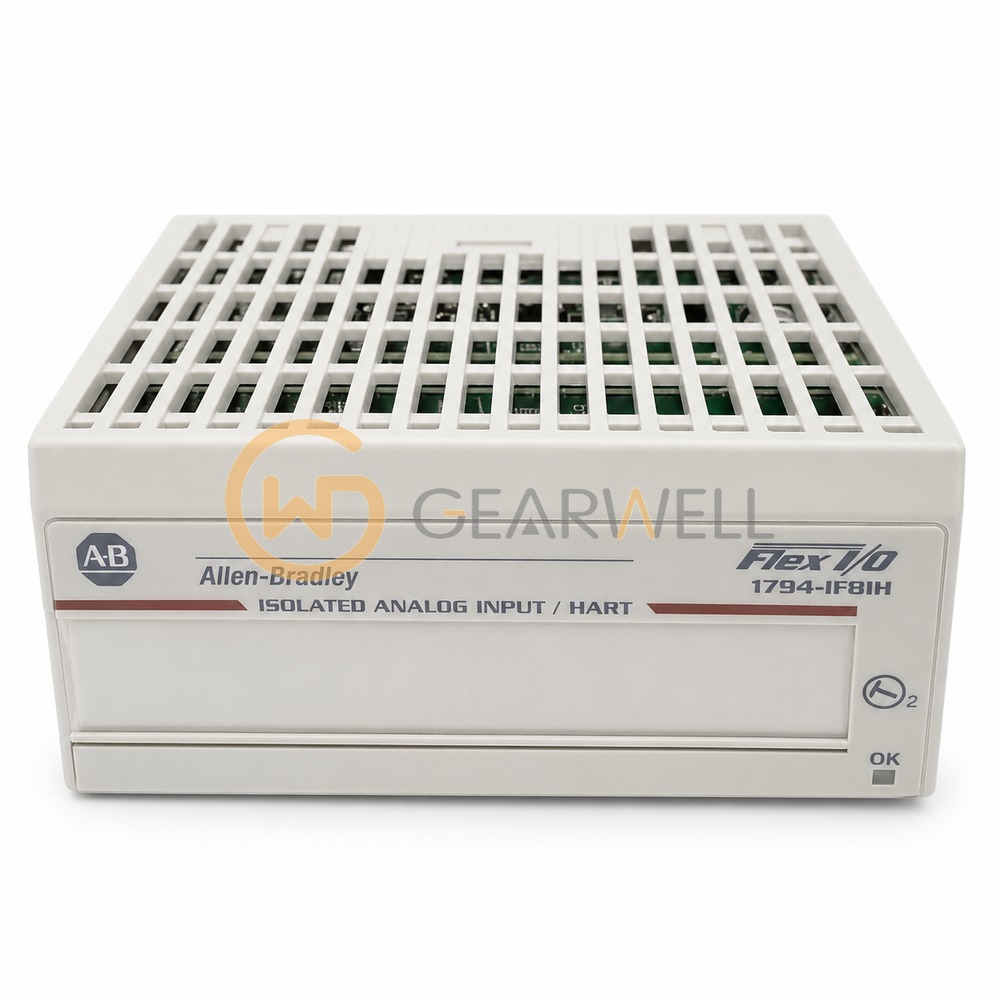

Allen-Bradley 1794-IF8IH Isolated HART Analog Input Module
- Brand
- Allen-Bradley
- Model
- 1794-IF8IH
- GEARWELL SKU
- GWP-000002053
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-IF8IH is a FLEX I/O HART enabled analog input module with 8 isolated current inputs for 4…20 mA or 0…20 mA, with 16-bit resolution (unipolar) and a 249 Ω input resistance. It draws 190 mA at 24V DC and is rated for 0…55 °C (32…131 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-IF8IH Isolated HART Analog Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794-IF8IH |
| Category | PLCs & I/O |
