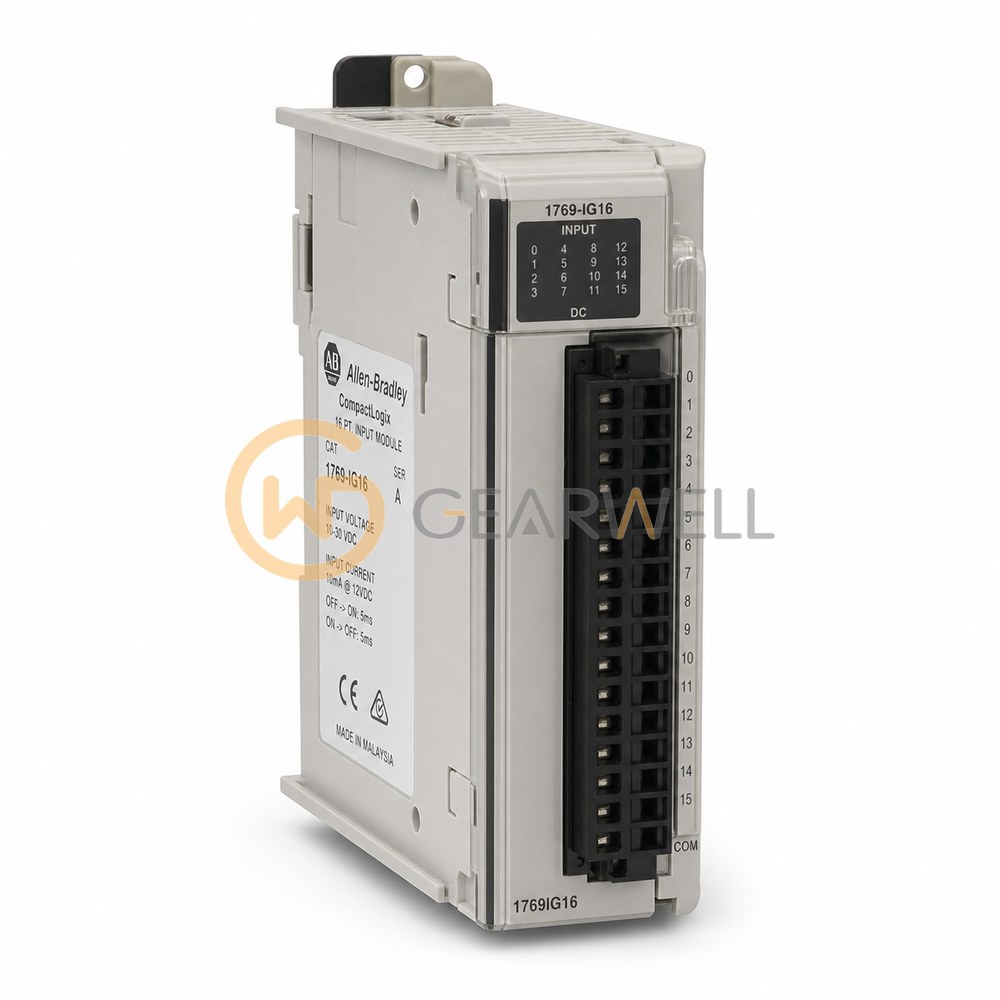

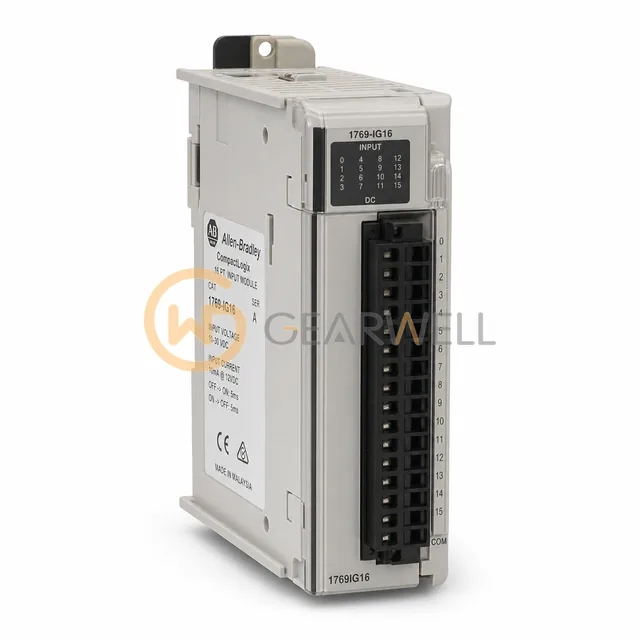

Allen-Bradley 1769-IG16 Compact I/O 16-Point 5 V DC TTL Input Module
- Brand
- Allen-Bradley
- Model
- 1769IG16
- GEARWELL SKU
- GWP-000002789
- Category
- PLCs & I/O
Key specifications
- On-state voltage
- -0.2 to 0.8 V DC
- Input-to-bus isolation
- 1200 V AC or 1697 V DC for 2 s; 75 V DC working voltage
- Off-state voltage
- 2.0-5.5 V DC
- Maximum bus current draw
- 120 mA at 5.1 V DC
- Supply voltage
- 4.5-5.5 V DC; ripple 50 mV peak-to-peak maximum
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IG16 is a Compact I/O input module with 16 5V DC TTL source inputs (low = true), an operating range of 4.5…5.5V DC and selectable digital filters from 0 s to 8 ms. It draws 120 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IG16 Compact I/O 16-Point 5 V DC TTL Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IG16 |
| Category | PLCs & I/O |
| On-state voltage | -0.2 to 0.8 V DC |
| Input-to-bus isolation | 1200 V AC or 1697 V DC for 2 s; 75 V DC working voltage |
| Off-state voltage | 2.0-5.5 V DC |
| Maximum bus current draw | 120 mA at 5.1 V DC |
| Supply voltage | 4.5-5.5 V DC; ripple 50 mV peak-to-peak maximum |
| Product type | 16-point low-true TTL input module |
| Manufacturer catalog lifecycle (checked 2026-10-07) | Active mature |
| Input channels | 16 |
| Logic type | 5 V DC TTL, low true |
| Power supply distance rating | 8 modules |
