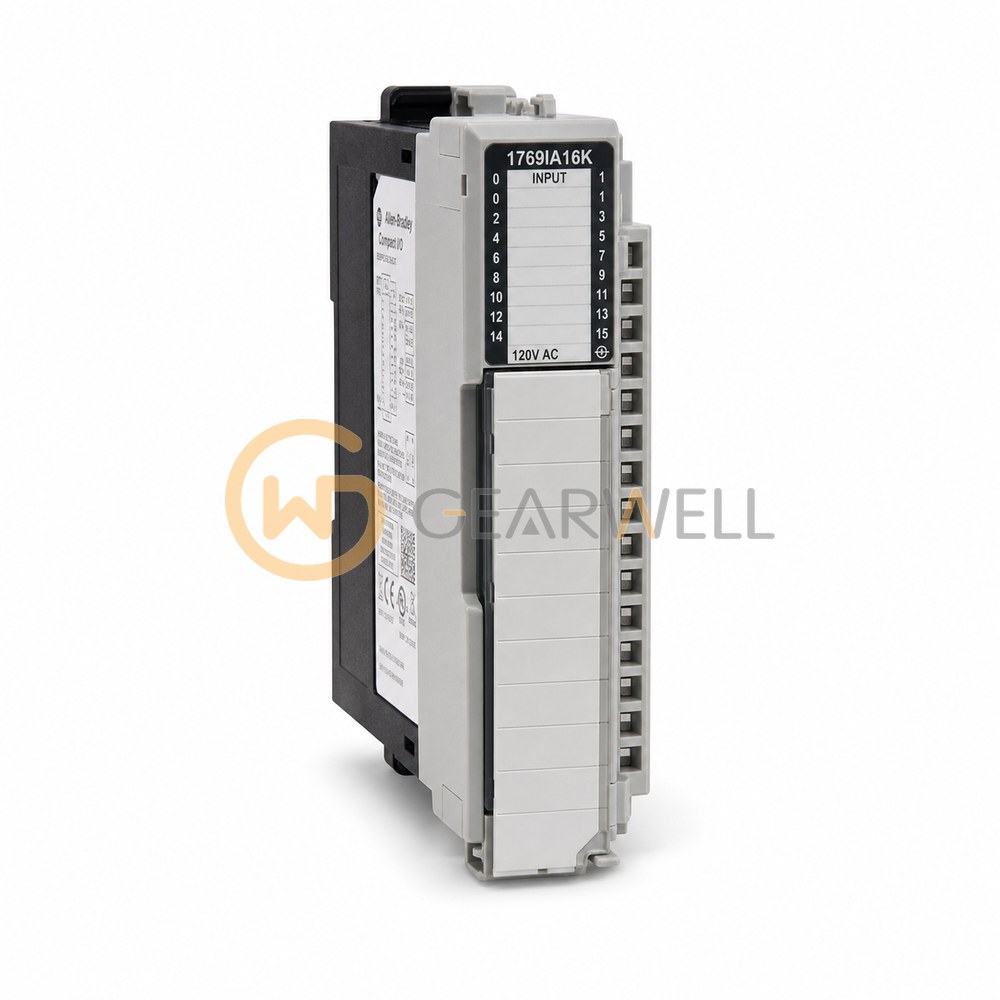

Allen-Bradley 1769-IA16K Compact I/O 16-Point 120 V AC Conformal-Coated Input Module
- Brand
- Allen-Bradley
- Model
- 1769IA16K
- GEARWELL SKU
- GWP-000000702
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Catalog coating option
- Conformal coated
- Input isolation test
- 1517 V AC or 2145 V DC for 1 s; input to bus
- Maximum input delay
- 20 ms on and 20 ms off
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IA16K is a Compact I/O input module with 16 inputs for 100/120V AC in one group with internally connected commons, an operating range of 79…132V AC at 47…63 Hz, and an on-state voltage of at least 79V AC. It draws 115 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation. This K version adds conformal coating.
Technical reference
| Product name | Allen-Bradley 1769-IA16K Compact I/O 16-Point 120 V AC Conformal-Coated Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IA16K |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Catalog coating option | Conformal coated |
| Input isolation test | 1517 V AC or 2145 V DC for 1 s; input to bus |
| Maximum input delay | 20 ms on and 20 ms off |
| Operating input voltage | 79-132 V AC, 47-63 Hz |
| Maximum bus current draw | 115 mA at 5.1 V DC |
| Maximum heat dissipation | 3.30 W |
| Input channels | 16, one common group |
| Power supply distance rating | 8 modules |
